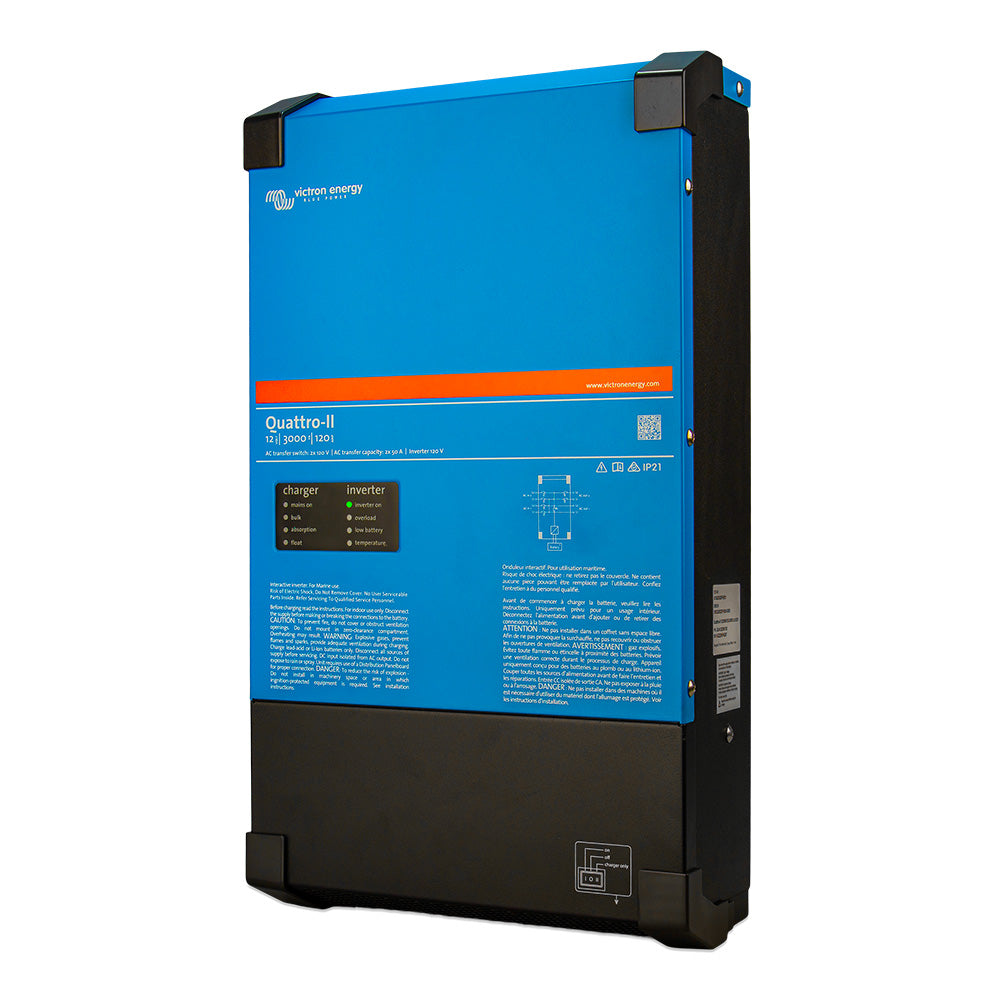

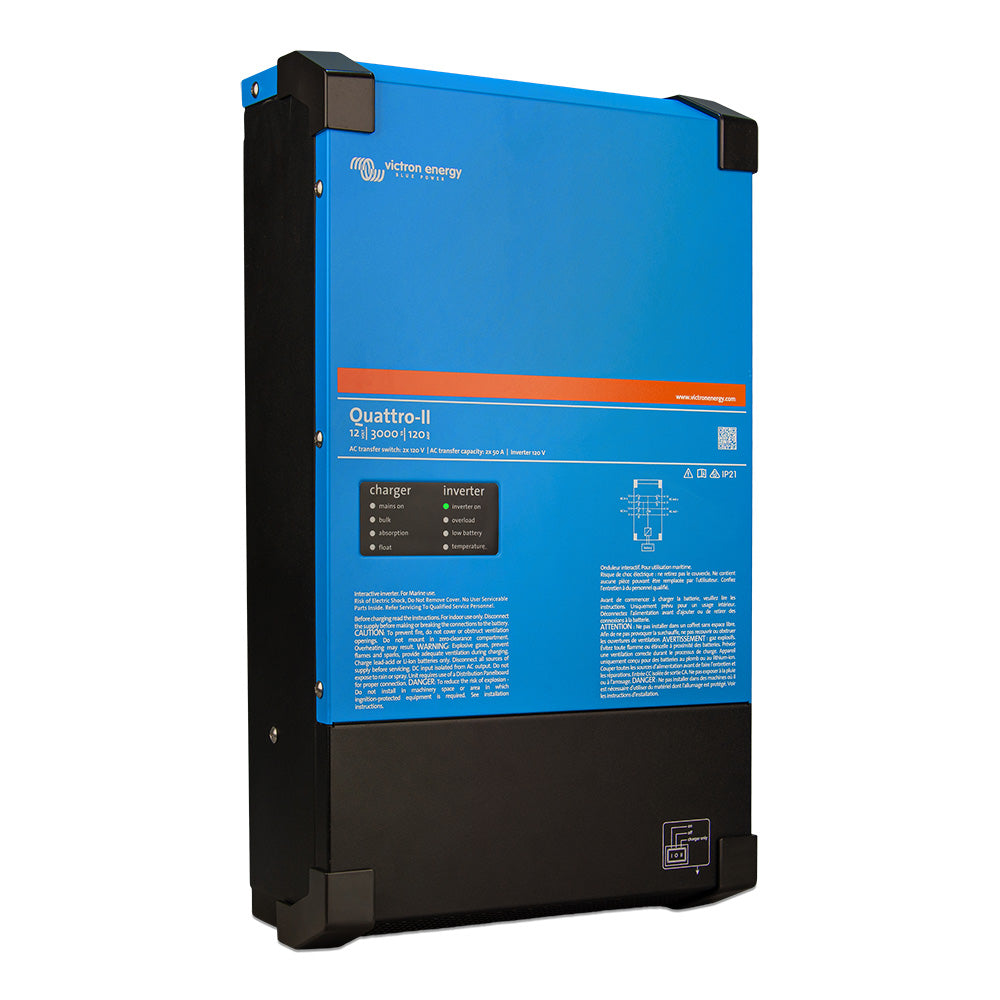

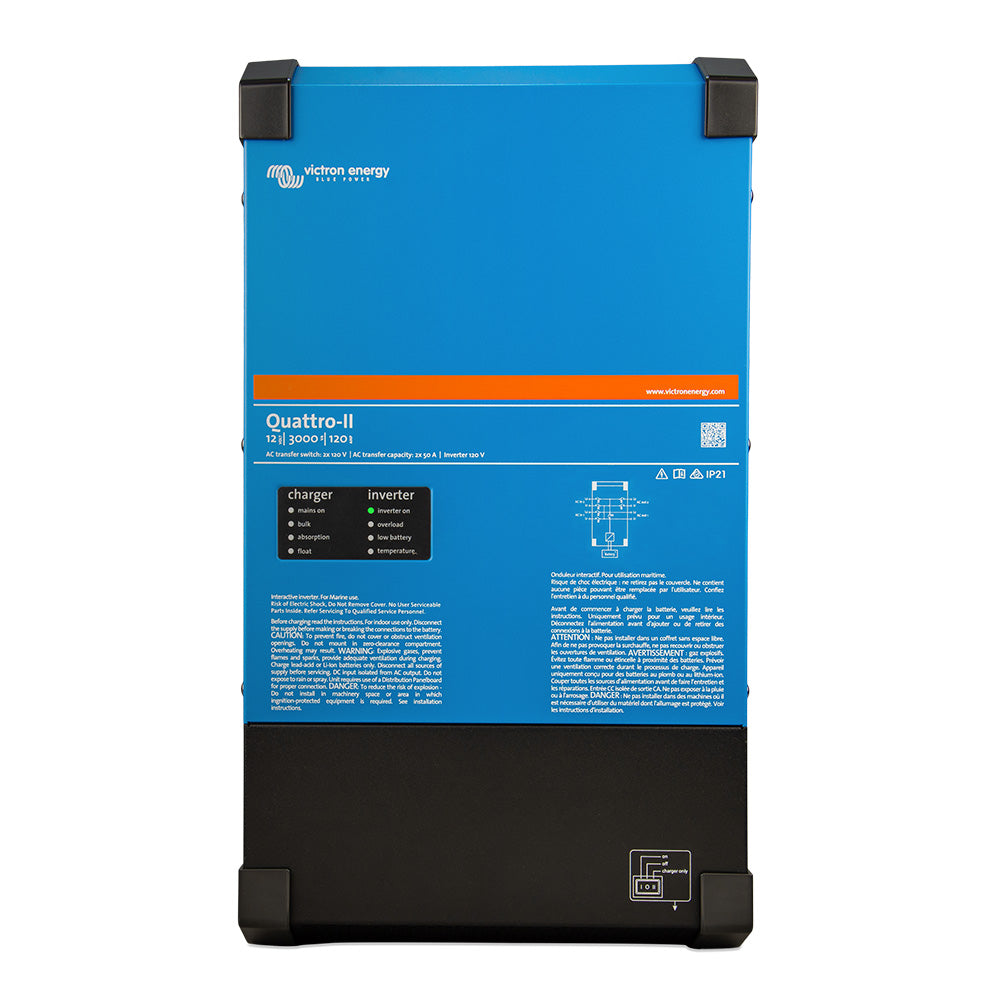

Victron Quattro-II - 24/3000 - 70-50/50 - 2X 120V

The Quattro-II - 24/3000 - 70-50/50 - 2X 120V is a robust inverter charger designed specifically for marine and boating applications. Combining reliable inverter and charging capabilities, it ensures your vessel's electrical system remains powered and efficient, even in demanding environments.

Key Features

• Dual AC Inputs: Supports both split-phase 120/240V and single-phase 120V sources.
• No-Break Functionality: Seamless power transfer to keep sensitive marine electronics running smoothly.
• PowerControl & PowerAssist: Optimize generator or shore power usage while maintaining battery health.
• Expandable Power: Connect up to 6 units in parallel or configure for three-phase output.
• Comprehensive Monitoring: Accessible via VictronConnect app, Cerbo GX, and other monitoring tools.
• Rugged Enclosure: Steel construction with IP22 protection, suitable for marine environments.

PowerControl and PowerAssist

Manage your vessel's power sources efficiently with PowerControl and PowerAssist. Set a maximum grid or generator current to prevent overloads, ensuring that excess power is directed towards battery charging. PowerAssist further enhances this by supplying additional power from the battery during peak demands, then recharging the battery when the load decreases. This functionality is available on the L1 input, optimizing power usage without compromising your onboard systems.

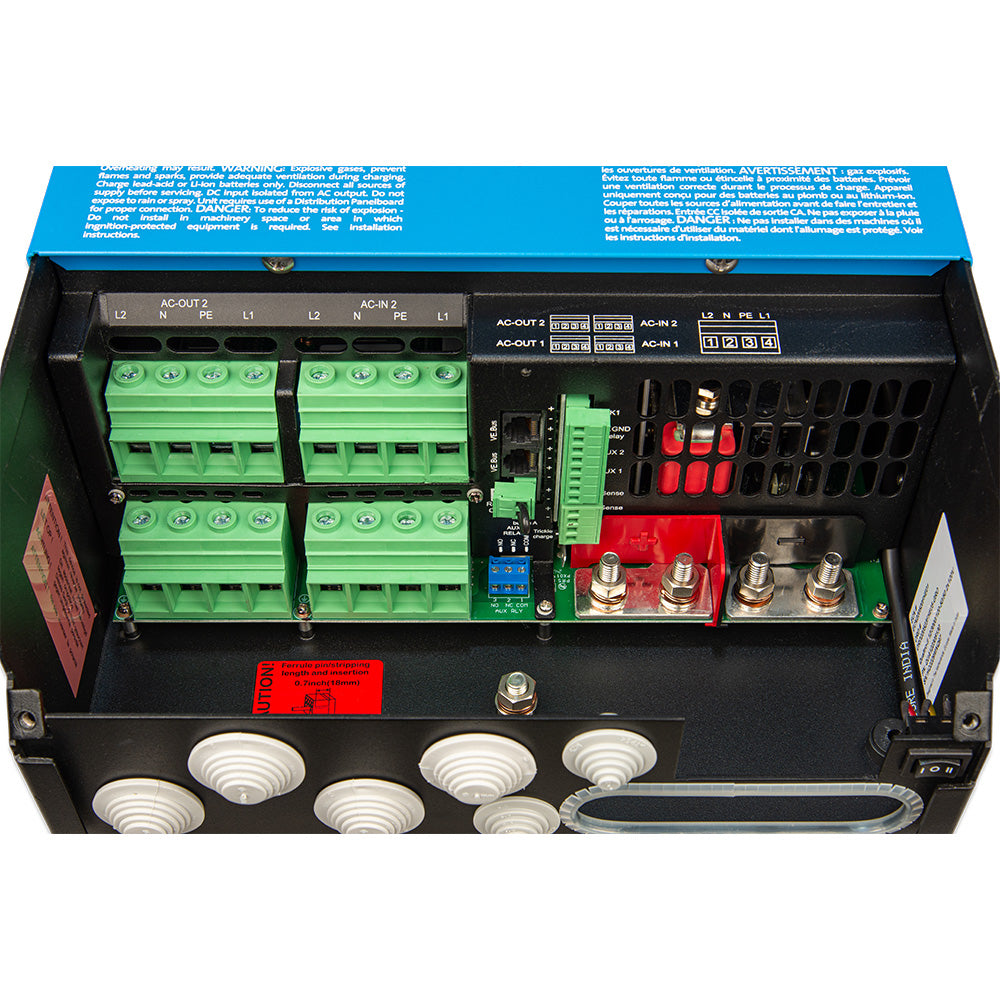

Dual AC Inputs and No-Break Outputs

The Quattro-II can be connected to two independent AC sources, such as shore power and a generator. It automatically switches to the active source, ensuring uninterrupted power supply to your boat's 120V loads. The main output features no-break functionality with a transfer time of less than 18 milliseconds for L1, keeping sensitive electronics like GPS and navigation systems running without interruption. The auxiliary output is active only when AC power is available, perfect for non-critical loads.

Expandable Power with Parallel and Three-Phase Operation

For larger vessels requiring more power, up to 6 Quattro-II units can be operated in parallel. Additionally, three units can be configured to provide three-phase power, ideal for running heavy-duty marine equipment. In multi-phase setups, L2 is disabled on all units to ensure balanced power distribution.

System Configuring, Monitoring, and Control

Easily configure and monitor your Quattro-II system using the VictronConnect app or VEConfigure software. Compatible with various monitoring options including Cerbo GX, Color Control GX, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel, you can manage your marine power system from multiple interfaces.

Remote Configuration and Monitoring

Connect your Quattro-II to the internet using a Cerbo GX or other GX products to access Victron Remote Management (VRM). This allows you to monitor operational data, access your system remotely, and adjust settings on the go, ensuring your boat's electrical system is always optimized.

Specifications

Inverter Specifications

Charger Specifications

General Specifications

Enclosure Specifications

Standards

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29
• Emission & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Adjustable to 50 Hz
• Protection Features: Output short circuit, overload, battery voltage too high/low, temperature too high, 120Vac on inverter output, input voltage ripple too high
• Handles non-linear loads with a crest factor of 3:1
• Operates up to 75°F / 25°C ambient temperature
• Automatic shutdown when no external AC source is available
• Programmable Relay: AC rating 120Vac / 4A; DC rating 4A up to 35Vdc, 1A up to 60Vdc
• Compatible with lithium battery BMS systems

Additional Specifications

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

Quick Guide (PDF)
Owner's Manual (PDF)
Brochure (PDF)
