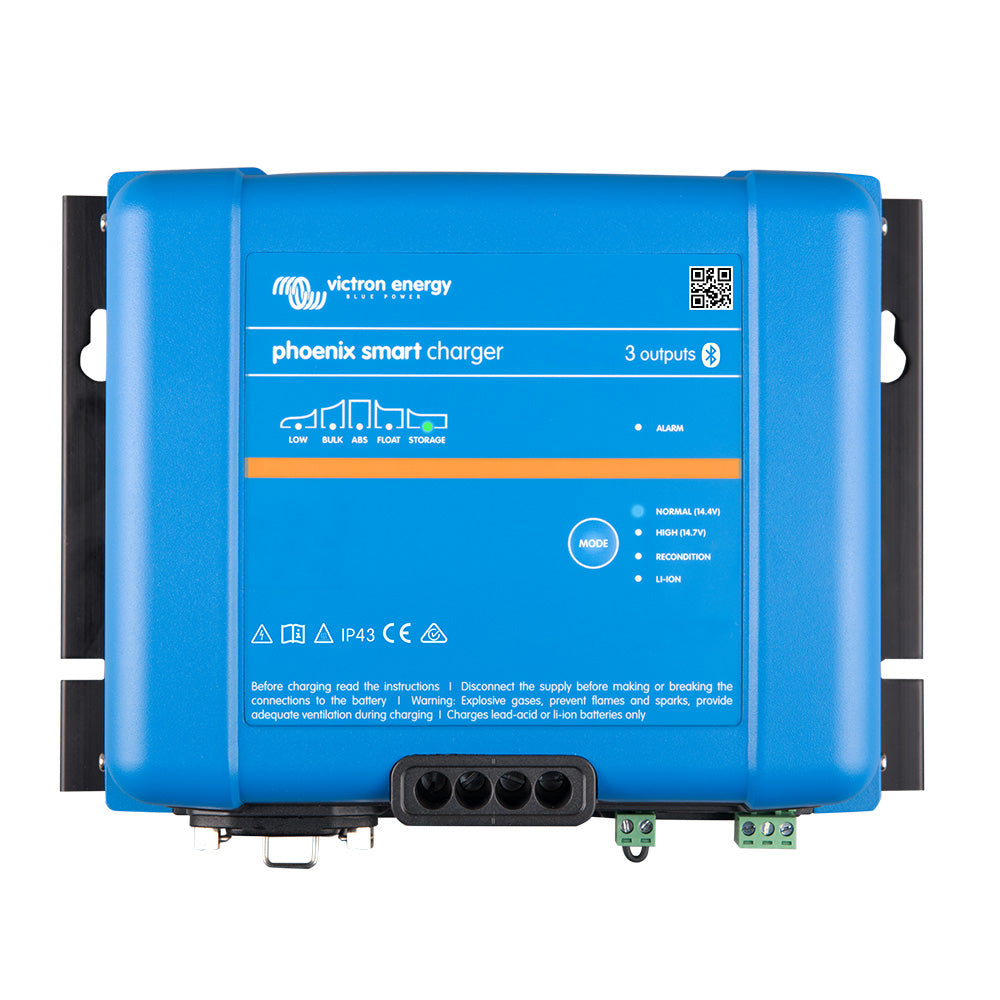

Victron Phoenix Smart IP43 Charger 24/25 (3) 120-240VAC Requires 5-15P Mains Cord

The Phoenix Smart IP43 Charger 24/25 is an advanced marine-grade charger designed to efficiently manage and charge your boat’s battery banks. With its IP43 rating, robust construction, and intelligent charging capabilities, it's the ideal solution for boat owners seeking reliable power management on the water.

Features

• Bluetooth Smart Built-in: Seamlessly set up, monitor, update, and synchronize your Phoenix Smart IP43 Chargers using your smartphone.
• Dual or Triple Output Options: Choose between the Phoenix Smart (1+1) model, providing 3A to the starter battery and the rest to the house bank, or the Phoenix Smart (3) model, delivering up to 30A or 50A to each of three battery banks.
• Automatic Voltage Compensation: Adjusts output voltage in response to voltage drops over DC cabling, ensuring consistent charging performance.
• Adaptive 6-Stage Charge Algorithm: Optimizes the charging process through six stages—bulk, absorption, recondition, float, storage, and refresh—tailored to different battery types and usage patterns.
• Variable Absorption Time: Prevents overcharging by adjusting absorption time based on battery discharge levels, ensuring batteries are fully charged after deep discharges.
• BatterySafe Mode: Protects batteries from excessive gassing by limiting voltage increase when necessary, enhancing battery lifespan.
• Storage Mode: Minimizes maintenance and aging when batteries are not in use by reducing float voltage and performing weekly equalization charges.
• Li-ion Battery Compatibility: Supports charging of LiFePO4 batteries with on-off control via relay, optocoupler, or full voltage/current control through Bluetooth.
• Fully Programmable Charge Algorithm: Customize charging parameters using Bluetooth or the VE.Direct interface, with three preprogrammed algorithms available.
• External Battery Voltage and Temperature Sensing: Integrate with Smart Battery Sense or BMV-712 Smart Battery Monitor via Bluetooth for accurate monitoring.
• Remote On/Off Control: Easily manage charger operation remotely using terminal connections or Bluetooth commands.
• VE.Direct Interface: Connect to Color Control panels, PCs, or other devices for data interfacing.
• Programmable Relay: Set up relay triggers based on alarms or events via VE.Direct or Bluetooth.
• Synchronized Charging: Pair multiple Phoenix Smart IP43 Chargers in a VE.Smart Network for optimized charge efficiency and extended battery life.

Specifications

Charger Input Voltage	120/240 VAC
Charger Output Amps	25 A
Charger Output Voltage	24 V
Charging Banks	3
Portable	No
Box Dimensions	6" H x 10" W x 11" L
Weight	7 lbs
UPC	8719076053552

Support and Warranty

Returns, Repairs, and Support: Please contact your dealer for any returns, repairs, or support issues related to this product.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
