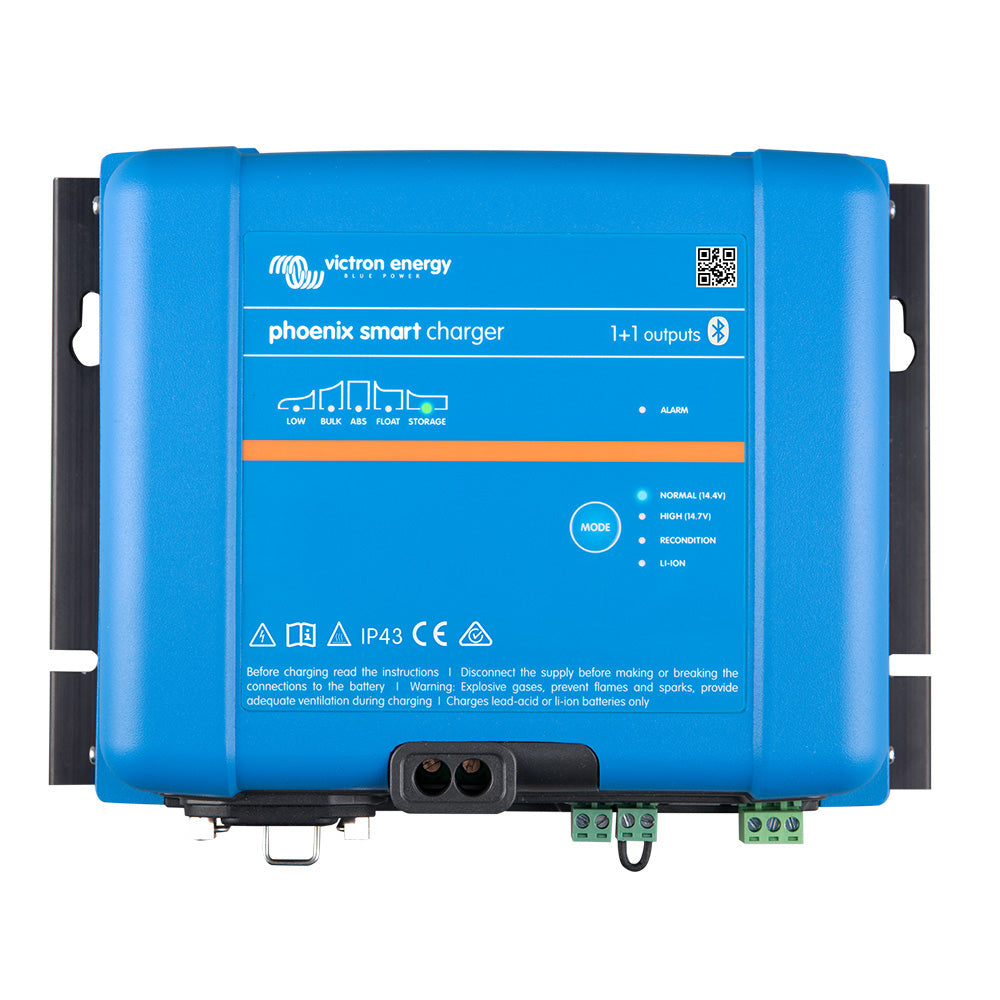

Victron Phoenix Smart IP43 Charger 24/25 (1+1) 120-240VAC Requires 5-15P Mains Cord

The Phoenix Smart IP43 Charger is the ultimate charging solution for marine and boating enthusiasts. Designed to deliver reliable and efficient power management for your vessel's battery banks, this versatile charger ensures your batteries are always ready for your next adventure on the water.

Advanced Charging Technology for Optimal Performance

Engineered with boat owners in mind, the Phoenix Smart IP43 Charger features an adaptive 5-step charging process that can deliver up to 30A or 50A to each of three battery banks. The 1+1 model intelligently distributes 3A to the starter battery while prioritizing the house bank, ensuring seamless power management onboard.

Bluetooth Connectivity for Convenient Monitoring

Stay connected and in control with built-in Bluetooth Smart technology. Monitor charging status, set alarms, and update charger settings directly from your smartphone, providing real-time insights and control right at your fingertips.

Key Features

• Bluetooth Smart Built-in: Easily set up, monitor, update, and synchronize multiple Phoenix Smart IP43 Chargers wirelessly.
• Flexible Charging Outputs:
  • 1+1 Configuration: Two outputs to charge two battery banks, with the second output tailored to gently top up the starter battery.
  • 3-Output Configuration: Three full current outputs, allowing each battery bank to receive its rated charge without exceeding the charger's total current capacity.
• Automatic Voltage Compensation: Adjusts output voltage to counteract voltage drops in DC cabling, ensuring consistent charging performance.
• Adaptive 6-Stage Charge Algorithm: Automatically optimizes the charging process based on battery usage, featuring bulk, absorption, recondition, float, storage, and refresh stages.
• Variable Absorption Time: Prevents overcharging by adjusting absorption time based on the depth of battery discharge.
• BatterySafe Mode: Protects batteries from damage due to excessive gassing by regulating voltage increase during high charge currents.
• Storage Mode: Minimizes maintenance and aging by reducing float voltage when the battery is not in use, preventing electrolyte stratification and sulfation.
• Li-ion Battery Compatibility: Supports LiFePO4 batteries with customizable charge control via relay or Bluetooth.
• Fully Programmable Charge Algorithm: Customize charge settings using Bluetooth or VE.Direct interface, with three preprogrammed algorithms available.
• Optional External Sensing: Integrate Smart Battery Sense or BMV-712 Smart Battery Monitor for enhanced battery voltage and temperature tracking.
• Remote On/Off Control: Easily manage charger operation with remote switches or relay contacts.
• VE.Direct Interface: Connect to Color Control panels, PCs, or other devices for a wired data connection.
• Programmable Relay: Trigger alerts or events using the VE.Direct interface or Bluetooth-enabled devices.
• Synchronized Charging: Pair multiple chargers in a VE.Smart Network to enhance charge efficiency and extend battery life.

Specifications

Feature	Details
Charger Input Voltage	120/240V AC
Charger Output Amperage	25A
Charger Output Voltage	24V
Charging Banks	1+1
Portability	No
Box Dimensions	6"H x 10"W x 11"L
Weight	7 lbs
UPC	8719076053545

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
