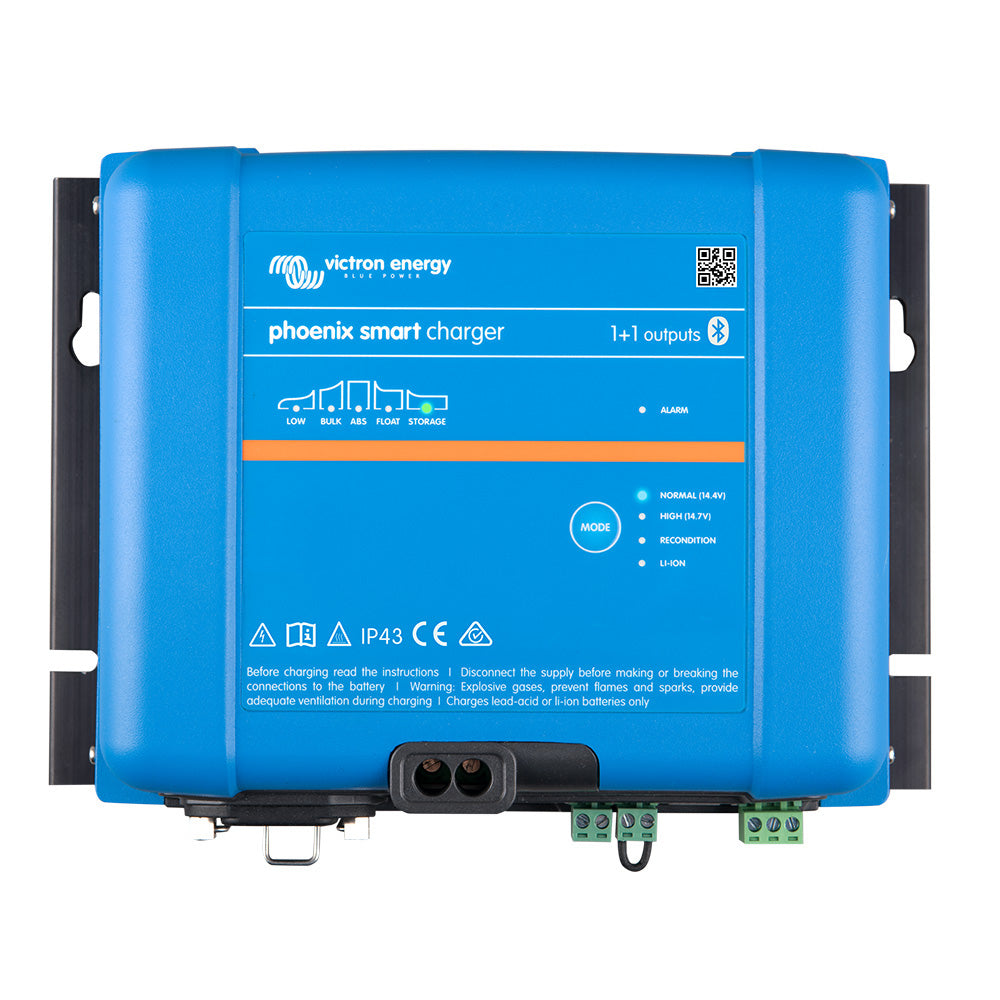

Victron Phoenix Smart IP43 Charger 24/16 (1+1) 120-240VAC Requires 5-15P Mains Cord

The Phoenix Smart IP43 Charger 24/16 (1+1) is a high-performance charging solution engineered specifically for marine and boating applications. Designed to efficiently manage and maintain your vessel's batteries, this charger ensures reliable power supply during your maritime adventures.

Outstanding Features for Marine Power Management

• Bluetooth Smart Built-In: Seamlessly set up, monitor, update, and synchronize your Phoenix Smart IP43 Chargers wirelessly using your smartphone.
• Flexible Charging Configurations:
  • Phoenix Smart (1+1): Delivers 3A to the starter battery while allocating the remaining current to the house bank, ideal for dual battery systems on boats.
  • Phoenix Smart (3): Provides three full current outputs to charge up to three separate battery banks simultaneously, ensuring efficient power distribution across your vessel.
• Automatic Voltage Compensation: Adjusts the output voltage to account for voltage drops in DC cabling, ensuring consistent and reliable charging performance.
• Adaptive 6-Stage Charge Algorithm: Features bulk, absorption, recondition, float, storage, and refresh stages, automatically optimizing the charging process based on battery usage and condition.
• Variable Absorption Time: Modifies absorption time based on the depth of battery discharge, preventing overcharging during shallow discharges and ensuring full recovery after deep discharges.
• BatterySafe Mode: Protects batteries from excessive gassing by limiting the rate of voltage increase when high charge currents and absorption voltages are used, extending battery life.
• Storage Mode: Reduces float voltage to minimize gassing and corrosion when batteries are not in use, while periodically equalizing to prevent electrolyte stratification and sulfation.
• Li-ion (LiFePO4) Battery Compatibility: Supports lithium-ion batteries with remote on/off control via relay or optocoupler, or full control through Bluetooth for optimized charging.
• Fully Programmable Charge Algorithm: Customize the charging process using Bluetooth or the VE.Direct interface, with three preprogrammed algorithms to suit different battery types.
• External Battery Voltage and Temperature Sensing: Integrates with Smart Battery Sense or BMV-712 Smart Battery Monitor to provide real-time battery voltage and temperature data to one or more Phoenix Smart IP43 Chargers.
• Remote On/Off Control: Manage the charger remotely by connecting a switch or relay between Remote H and Remote L terminals, or by adjusting terminal connections for flexible control options.
• VE.Direct Interface: Enables wired data connections to Color Control panels, PCs, or other devices for comprehensive system monitoring and management.
• Programmable Relay: Configure relay actions based on alarms or specific events via VE.Direct interface or Bluetooth, enhancing system responsiveness.
• Synchronized Charging: Pair multiple Phoenix Smart IP43 Chargers in a VE.Smart Network to enable synchronized charging, improving overall charge efficiency and extending battery lifespan.

Technical Specifications

Charger Input Voltage	120-240V AC
Charger Output Current	16A
Charger Output Voltage	24V
Charging Banks	1 + 1
Portable	No
Box Dimensions	6" H x 10" W x 11" L
Weight	7 lbs
UPC	8719076053521

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
