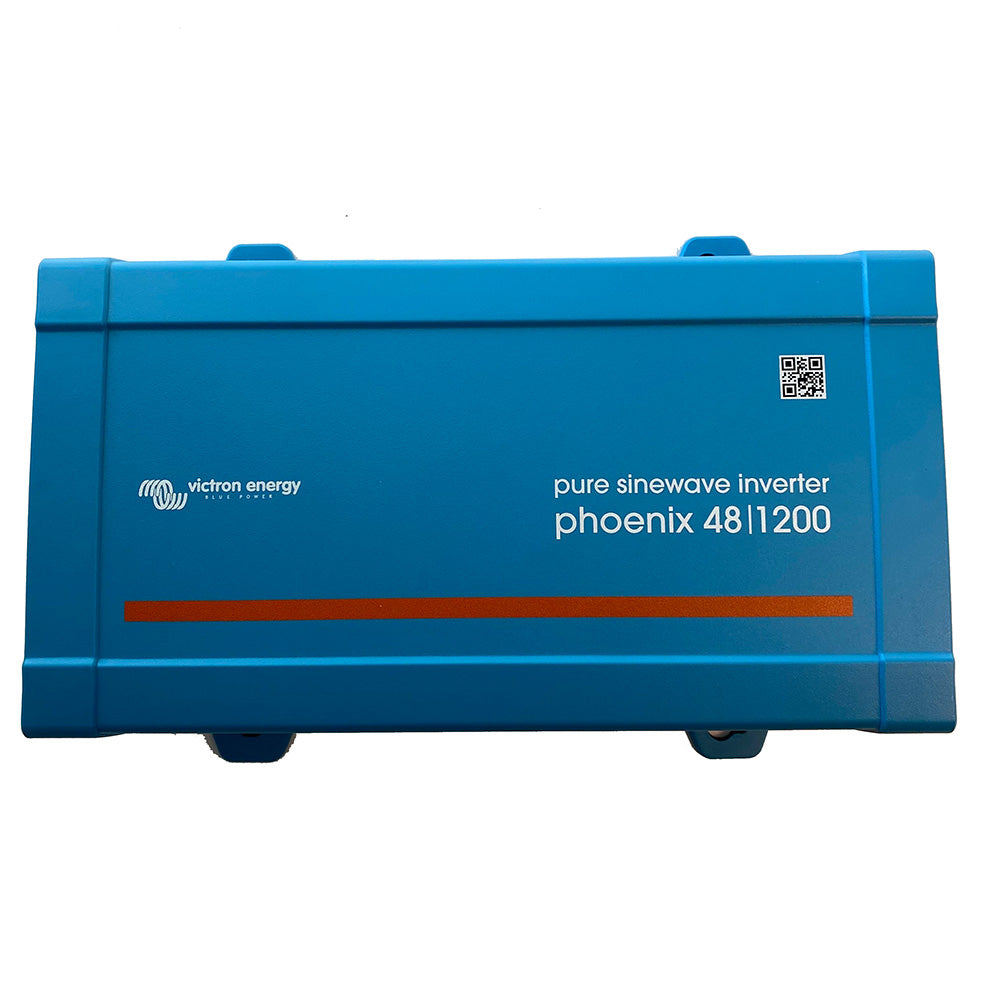

Victron Phoenix Inverter 48VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15R

The Phoenix Inverter 48VDC - 1200VA - 120VAC is an essential power solution for marine and boating applications, enabling you to run domestic equipment seamlessly using your boat's 48VDC leisure or automotive batteries.

Key Features

• Power Output: Continuous 1200VA with a peak power of 2200W, ideal for starting electric tools and lighting systems on your vessel.
• Versatile AC Output: Provides both 230VAC and 120VAC options, ensuring compatibility with a wide range of marine appliances.
• VE.Direct Communication: Connect effortlessly to your devices for real-time monitoring and configuration using VE.Direct to USB cables or Bluetooth Smart dongles.
• Fully Configurable Settings: Customize low battery alarms, cut-off levels, output voltage, frequency, and ECO mode to match your specific marine power requirements.
• Robust Protection: Short-circuit proof, overheating protection, and dynamic load-dependent cut-off ensure reliable performance even in challenging marine environments.

Advanced Monitoring

Stay informed about your power system with comprehensive monitoring capabilities:

• Input and output voltage levels
• Percentage load utilization
• Alarm notifications for low voltage and other critical events

Dynamic ECO Mode

The ECO mode intelligently manages power consumption by switching the inverter to standby when the load drops below 15W. It periodically checks and activates the inverter when necessary, optimizing battery life and ensuring efficient energy use onboard.

Remote Control

Easily manage your inverter with the remote on/off feature. Connect a remote switch to the two-pole connector or between the battery positive and the connector's left-hand contact for convenient operation from anywhere on your vessel.

Seamless Load Transfer

Integrate the Filax Automatic Transfer Switch to ensure uninterrupted power supply. With a switchover time of less than 20 milliseconds, your sensitive marine electronics and navigation systems remain powered without disruption.

LED Diagnostic Indicators

Quickly assess inverter status and troubleshoot issues using the LED diagnostic indicators. Refer to the manual for detailed descriptions of each indicator.

Technical Specifications

Enclosure Specifications

• Construction: Durable steel chassis with a blue Ral 5012 plastic cover, designed to withstand marine conditions.
• Battery Connections: Secure screw terminals for reliable power connections.
• AC Outlets: Multiple standard outlets including Schuko, IEC-320, UK (BS 1363), AU/NZ (AS/NZS 3112), and NEMA 5-15R with GFCI protection.
• Protection Rating: IP 21 for basic protection against solid objects and vertical water drops.

Included Accessories

• Remote On-Off Switch
• Filax Automatic Transfer Switch

Compliance and Standards

• Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458 (3)
• EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive: ECE R10-4

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

Quick Guide (PDF)

Owner's Manual (PDF)
