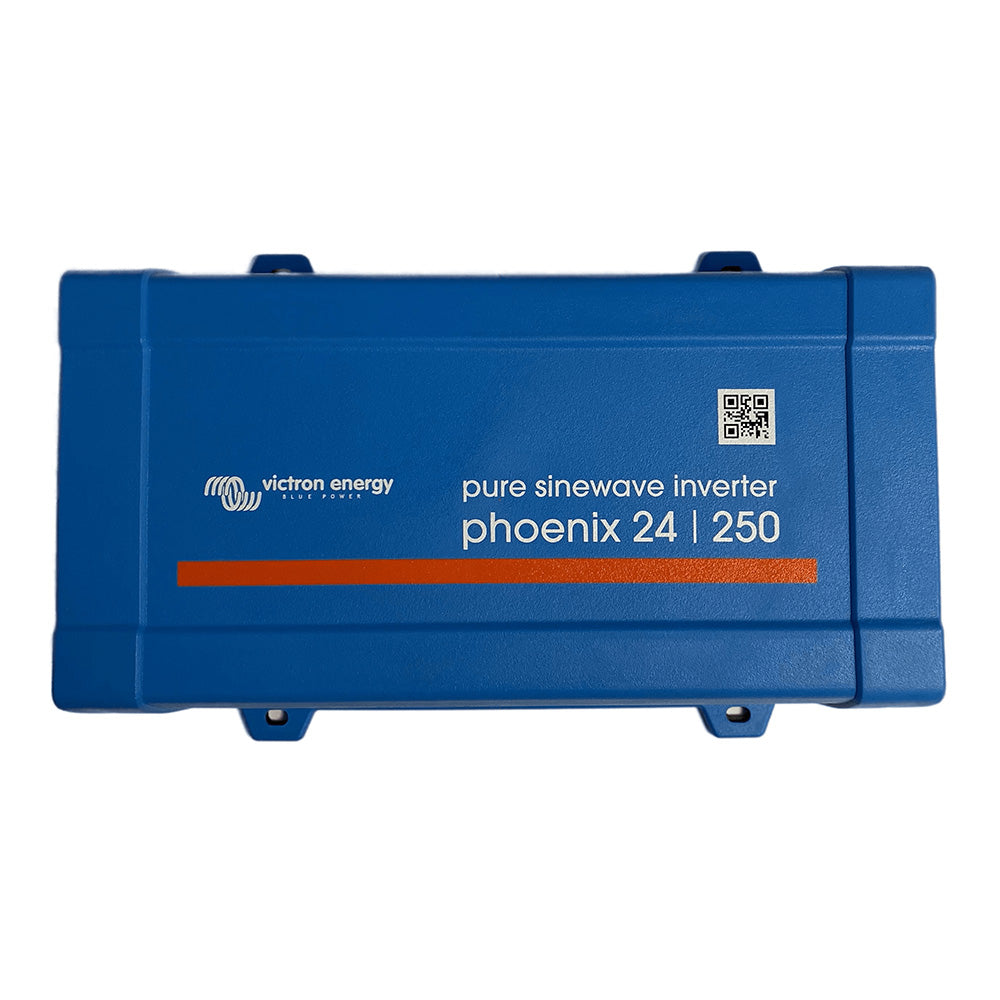

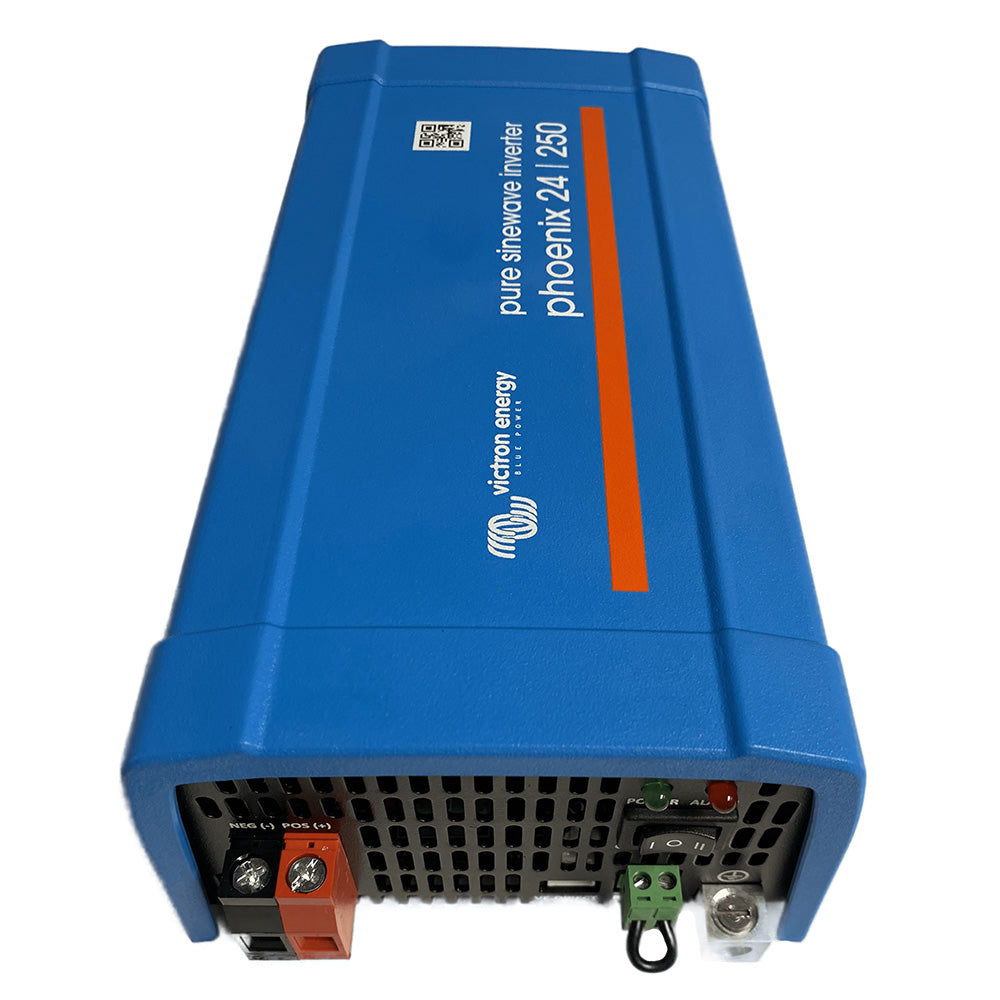

Victron Phoenix Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R
Victron Phoenix Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Power your marine adventures with the Phoenix Inverter 24VDC - 250VA - 120VAC, designed specifically for boating enthusiasts. This reliable inverter ensures your vessel's essential appliances run smoothly, converting your boat's battery power into stable AC electricity, perfect for on-board convenience and safety.
Key Features
- 24VDC input with 250VA continuous power and 400W peak power
- Adjustable 120VAC output with selectable frequency (50Hz or 60Hz)
- VE.Direct port for seamless connectivity with smart devices and computers
- Compact and durable steel and plastic construction, ideal for marine environments
- Multiple protection features to ensure safe and efficient operation on board
Smart Connectivity with VE.Direct
The integrated VE.Direct port allows you to monitor and control your inverter effortlessly:
- Connect to a computer using a VE.Direct to USB interface cable
- Sync with Apple and Android smartphones, tablets, MacBooks, and other devices via a VE.Direct Bluetooth Smart dongle
Customizable Settings for Optimal Performance
Tailor the inverter's settings to meet the specific needs of your marine setup:
- Set low battery voltage alarm trip and reset levels
- Adjust low battery voltage cut-off and restart thresholds
- Enable dynamic cut-off based on load conditions
- Fine-tune output voltage between 210 - 245V
- Select operating frequency (50 Hz or 60 Hz)
- Control ECO mode settings to optimize power usage
Real-Time Monitoring
Stay informed about your inverter’s performance and your boat’s power status:
- Monitor input/output voltage, load percentage, and alarm notifications
- Easy access to support and service through your local dealer for any returns, repairs, or assistance
Technical Specifications
Specification | Details |
---|---|
Continuous Power at 25°C | 250VA |
Continuous Power at 40°C | 175W |
Peak Power | 400W |
Output AC Voltage / Frequency | 120VAC ± 3%, 50Hz or 60Hz |
Input Voltage Range | 9.2 - 17V / 18.4 - 34.0V / 36.8 - 62.0V |
DC Low Shut Down (Adjustable) | 9.3V / 18.6V / 37.2V |
Dynamic DC Low Shut Down | Load-dependent cut-off |
DC Low Restart and Alarm (Adjustable) | 10.9V / 21.8V / 43.6V |
Battery Charge Detect (Adjustable) | 14.0V / 28.0V / 56.0V |
Maximum Efficiency | Up to 88% |
Zero-Load Power | 4.2W / 5.2W / 7.9W |
Default Zero-Load Power in ECO Mode | 0.8W / 1.3W / 2.5W |
ECO Mode Power Setting | Adjustable |
Protection | Comprehensive (a - f) |
Operating Temperature Range | -40°C to +65°C (fan-assisted cooling) |
Humidity | Up to 95% (non-condensing) |
Durable and Marine-Ready Enclosure
- Material & Color: Sturdy steel chassis with a blue RAL 5012 plastic cover
- Battery Connection: Secure screw terminals supporting up to 10mm² / AWG8 cables
- AC Outlets: Multiple standard outlets including Schuko, IEC-320, UK BS 1363, AU/NZ AS/NZS 3112, and NEMA 5-15R with GFCI protection
- Protection Category: IP 21, suitable for marine environments
- Weight: 2.4kg / 5.3lbs
- Dimensions: 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 in.)
Included Accessories
- Remote On-Off switch for convenient control from anywhere on your boat
- Filax Automatic Transfer Switch for seamless switching between power sources
Download the Quick Guide (PDF) for detailed installation and operation instructions.
