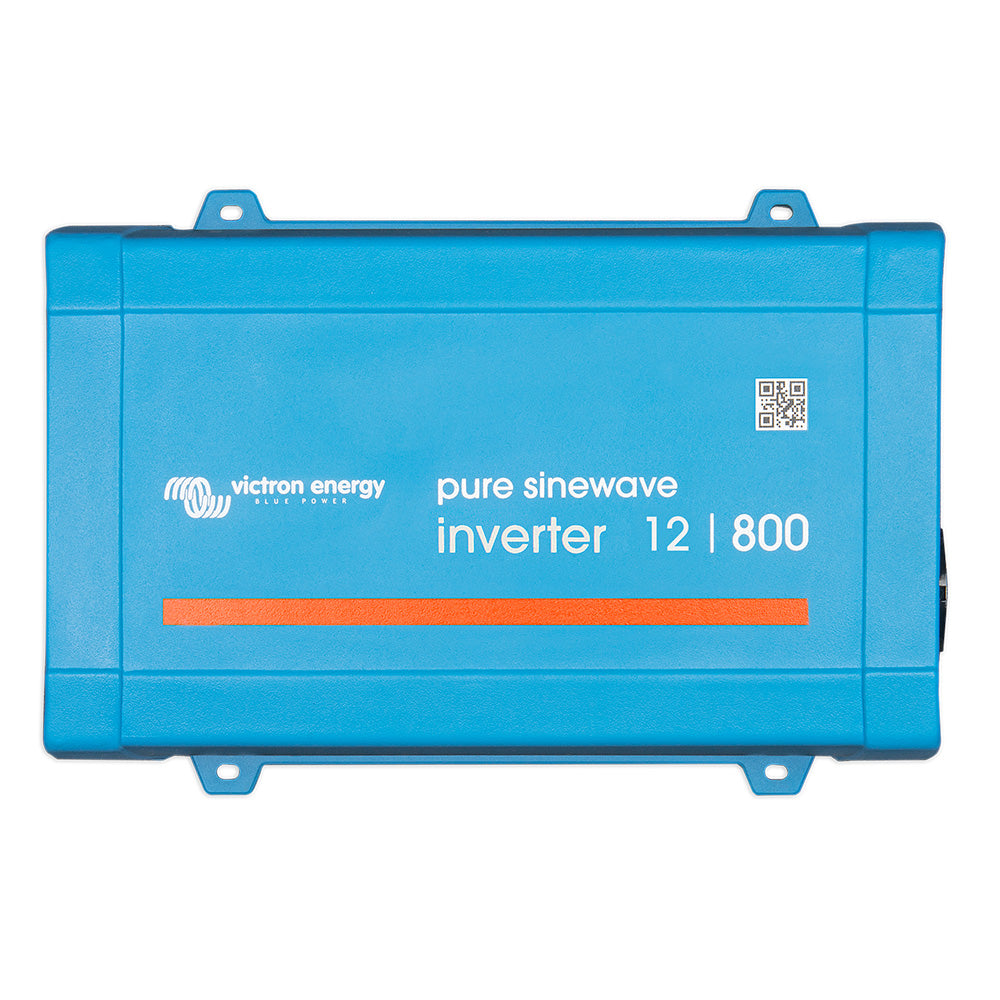

Victron Phoenix Inverter 12/800 - 120V - VE.Direct GFCI Duplex Outlet - 650W

Ensure your marine adventures are powered smoothly with the Phoenix Inverter 12/800. Designed specifically for boating applications, this reliable inverter effortlessly converts your boat's 12V DC power to 120V AC, allowing you to run essential marine electronics and appliances with ease. Whether you're navigating the open seas or enjoying a day on the lake, the Phoenix Inverter provides the power you need with unmatched reliability and advanced features tailored for the marine environment.

Key Features

GFCI Duplex Outlet

Equipped with a Ground Fault Circuit Interrupter (GFCI) duplex outlet, the Phoenix Inverter ensures safety by protecting against electrical shocks, making it ideal for the wet and dynamic conditions of marine settings.

VE.Direct Communication Port

The integrated VE.Direct port allows seamless connectivity options:

• Connect to a computer using a VE.Direct to USB interface cable
• Pair with Apple and Android smartphones, tablets, MacBooks, and other devices via a VE.Direct Bluetooth Smart dongle

Fully Configurable Settings

Customize the inverter settings to match your specific marine requirements:

• Adjust low battery voltage alarm trip and reset levels
• Set low battery voltage cut-off and restart levels
• Enable dynamic cut-off based on load conditions
• Modify output voltage range between 210 - 245V
• Select frequency modes: 50 Hz or 60 Hz
• Toggle ECO mode on/off and adjust ECO mode sensitivity

Real-Time Monitoring

Stay informed with comprehensive monitoring capabilities:

• Track in- and output voltage
• Monitor load percentage
• Receive alerts for any alarms or issues

Proven Reliability

The Phoenix Inverter boasts a full bridge plus toroidal transformer topology, a proven design known for durability and long-term reliability. It is engineered to be short-circuit proof and protected against overheating caused by overloads or high ambient temperatures, ensuring dependable performance even in challenging marine environments.

High Start-Up Power

Capable of delivering the necessary start-up power for demanding marine equipment such as power converters for LED lamps, halogen lamps, and electric tools, the Phoenix Inverter ensures your devices run smoothly from the moment you power them on.

ECO Mode

Optimize power usage with ECO mode, which automatically switches the inverter to standby when the load drops below a preset value (minimum load: 15W). The inverter will periodically check and restart when the load increases, conserving energy without interrupting your devices.

Remote On/Off Control

Easily manage your inverter with a remote on/off switch. Connect the switch to a two-pole connector or between the battery positive and the left-hand contact of the two-pole connector for convenient control from your marine dashboard.

LED Diagnosis

Utilize the LED indicators for quick and easy diagnosis of the inverter's status and performance. Refer to the manual for detailed descriptions of each LED signal.

Automatic Transfer Switch

Seamlessly transfer your load to another AC source with the recommended Filax Automatic Transfer Switch. Featuring a switchover time of less than 20 milliseconds, it ensures uninterrupted power to sensitive marine electronics like computers and navigation systems.

Inverter Specifications

Specification	Details
Continuous Power at 25°C	800VA
Continuous Power at 25°C / 40°C	650W / 560W
Peak Power	1500W
Output AC Voltage / Frequency	230VAC or 120VAC ± 3%, 50Hz or 60Hz ± 0.1%
Input Voltage Range	9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0V
DC Low Shut Down (Adjustable)	9.3 / 18.6 / 37.2V
Dynamic DC Low Shut Down	Learn More
DC Low Restart & Alarm (Adjustable)	10.9 / 21.8 / 43.6V
Battery Charge Detect (Adjustable)	14.0 / 28.0 / 56.0V
Maximum Efficiency	90% / 90% / 91%
Zero-Load Power	6.5W / 7W / 9.5W
Default Zero-Load Power in ECO Mode	1W / 1.5W / 3.0W
ECO Mode Stop & Start Power Setting	Adjustable
Protection Features	Short circuit, overload, high battery voltage, low battery voltage, high temperature, DC ripple protection
Operating Temperature Range	-40°C to +65°C (fan-assisted cooling)

Enclosure Specifications

Specification	Details
Material & Color	Steel chassis with blue RAL 5012 plastic cover
Battery Connection	Screw terminals
Maximum Cable Cross-Section	25 / 10 / 10mm² / AWG4 / 8 / 8
Standard AC Outlets	230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R, GFCI
Protection Category	IP 21
Weight	5.5kg / 12lbs
Dimensions (H x W x D)	105mm x 230mm x 325mm

Accessories Included

• Remote On/Off Switch
• Filax Automatic Transfer Switch

Compliance and Standards

• Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458(3)
• EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive ECE R10-4:
  1. Nonlinear load, crest factor 3:1
  2. Protection key:
     • Output short circuit
     • Overload
     • Battery voltage too high
     • Battery voltage too low
     • Temperature too high
     • DC ripple too high

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

• GFCI: Yes
• Box Dimensions: 8"H x 12"W x 15"L
• Weight: 15 lbs
• UPC: 8719076049432

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
