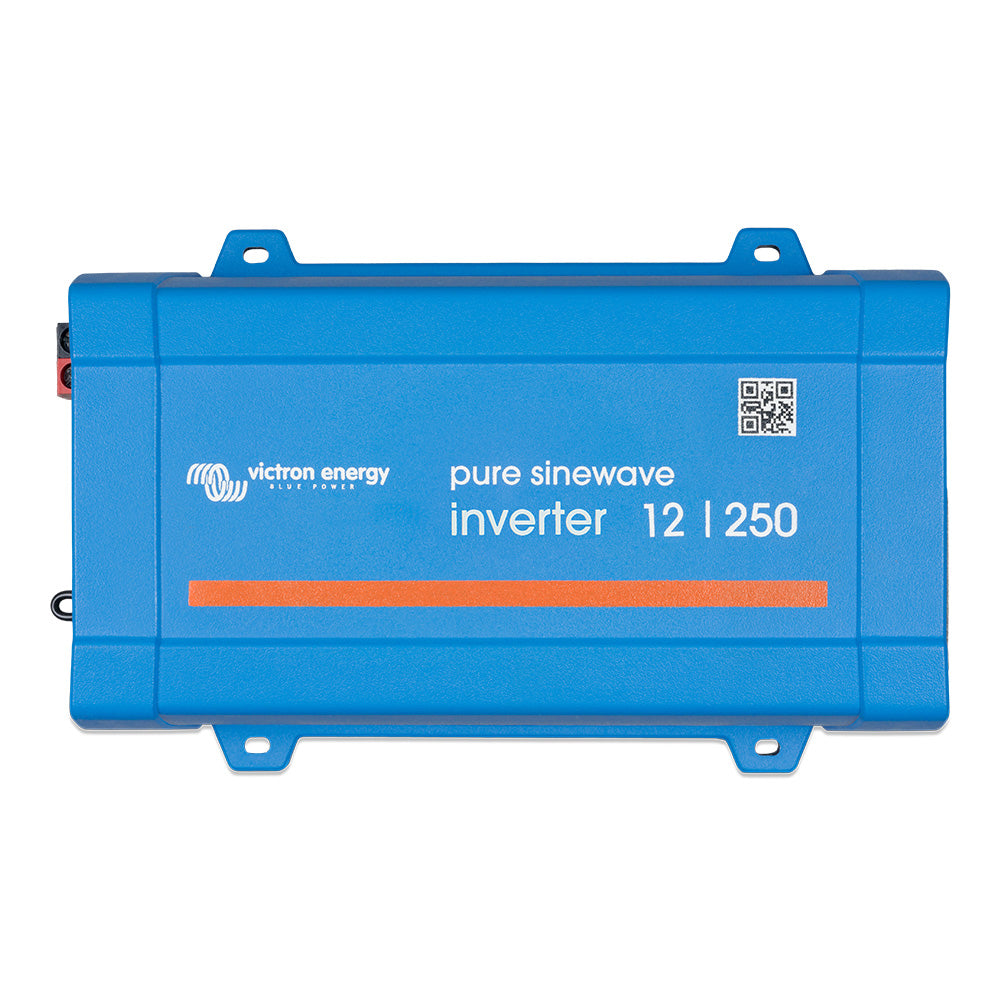

Victron Phoenix Inverter 12/250 - 120V - VE.Direct NEMA 5-15R - Single Outlet - 200W
Victron Phoenix Inverter 12/250 - 120V - VE.Direct NEMA 5-15R - Single Outlet - 200W is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Phoenix Inverter 12/250 - 120V is a reliable and efficient power solution tailored for marine and boating applications. Designed to seamlessly integrate with your vessel's battery system, it provides stable AC power to keep your onboard equipment running smoothly.
Key Features

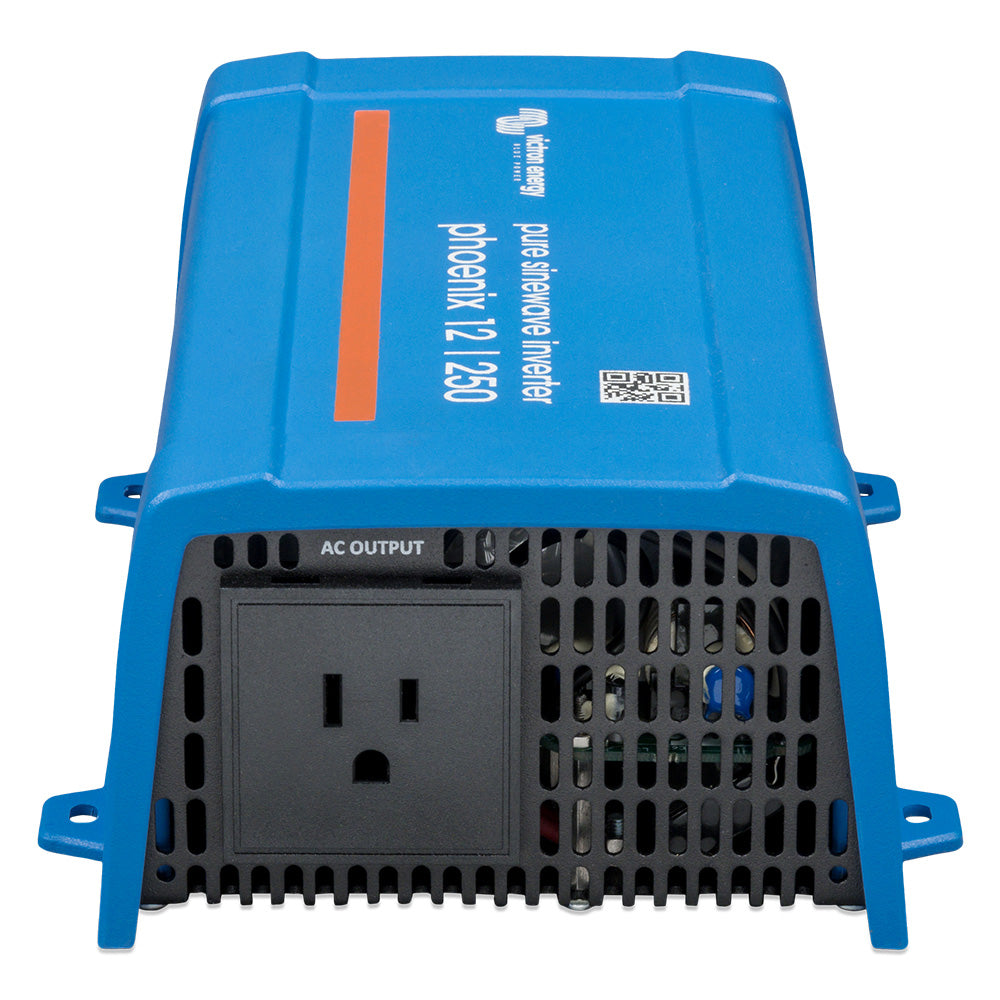

- Power Output: Single NEMA 5-15R outlet delivering 120V AC with 200W continuous and 400W peak power.
- High Start-Up Power: Capable of handling the surge required by devices like LED lamps, halogen lamps, and electric tools.
- ECO Mode: Automatically switches to standby when the load drops below a preset level, conserving energy and extending battery life.
- Remote On/Off: Control the inverter remotely via a two-pole connector or directly from the battery connection.
- LED Diagnosis: Visual indicators provide real-time status and troubleshooting information. Refer to the manual for detailed descriptions.
- Automatic Transfer Switch: Compatible with the Filax Automatic Transfer Switch, ensuring seamless power source switching without interrupting sensitive electronics.

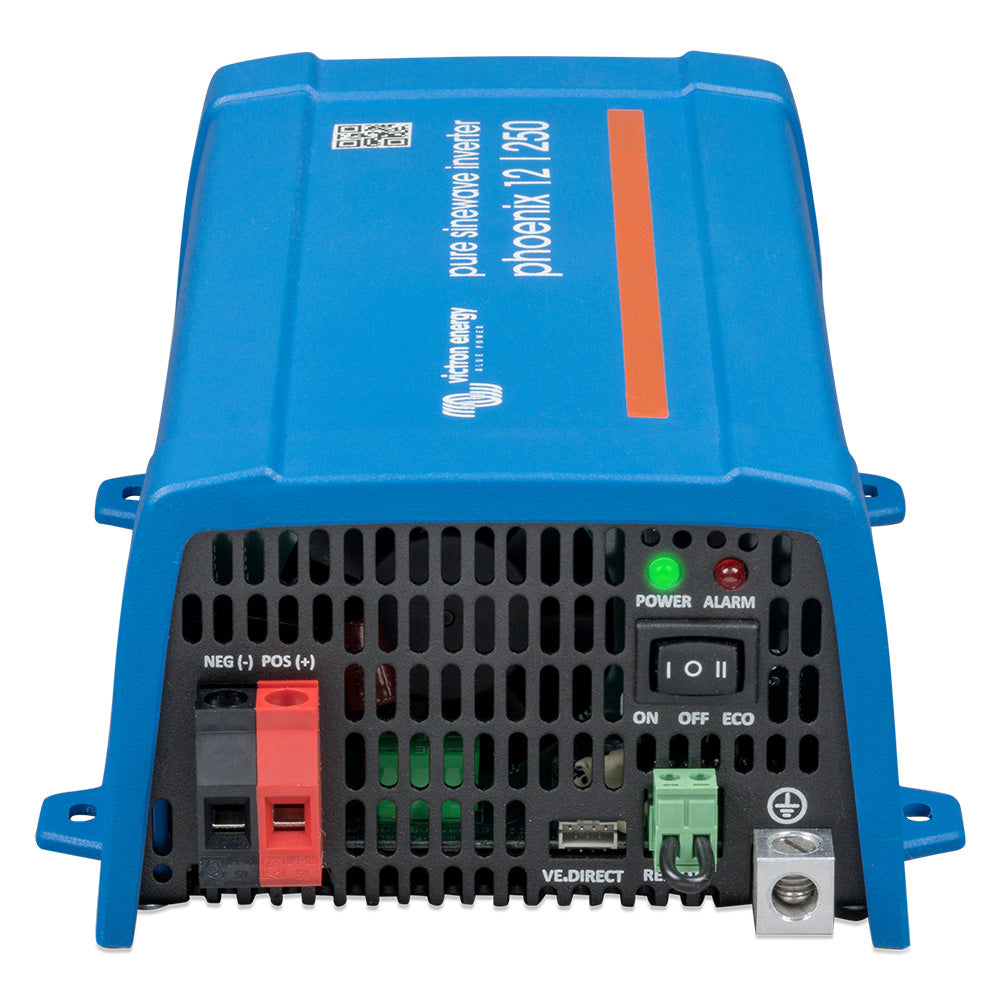

VE.Direct Communication Port
The Phoenix Inverter is equipped with a VE.Direct port, enabling advanced communication and monitoring capabilities.
- Connect to a computer using a VE.Direct to USB interface cable.
- Pair with Apple and Android smartphones, tablets, MacBooks, and other devices using a VE.Direct Bluetooth Smart dongle.
Fully Configurable Settings
Customize the inverter settings to match your specific marine power requirements:
- Adjust low battery voltage alarm trip and reset levels.
- Set low battery voltage cut-off and restart thresholds.
- Enable dynamic cut-off for load-dependent power management.
- Modify output voltage between 210V and 245V.
- Select frequency settings of 50 Hz or 60 Hz.
- Toggle ECO mode on/off and set the ECO mode sensing level.
Monitoring Capabilities
Stay informed about your power system's performance with comprehensive monitoring features:
- Track in- and output voltages.
- Monitor load percentage.
- Receive alarm notifications for various system alerts.
Proven Reliability
The Phoenix Inverter utilizes a full bridge plus toroidal transformer topology, ensuring long-term reliability even in harsh marine environments. It is built to be short-circuit proof and includes protections against overheating caused by overloads or high ambient temperatures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Continuous Power at 25°C | 250VA |
| Continuous Power | 200W @ 25°C / 175W @ 40°C |
| Peak Power | 400W |
| Output AC Voltage / Frequency | 230VAC or 120VAC ± 3%, 50Hz or 60Hz ± 0.1% |
| Input Voltage Range | 9.2 - 17V / 18.4 - 34.0V / 36.8 - 62.0V DC |
| DC Low Shut Down (Adjustable) | 9.3V / 18.6V / 37.2V |
| Dynamic DC Low Shut Down | Fully configurable dynamic cut-off |
| DC Low Restart & Alarm (Adjustable) | 10.9V / 21.8V / 43.6V |
| Battery Charge Detection (Adjustable) | 14.0V / 28.0V / 56.0V |
| Maximum Efficiency | 87% / 88% / 88% |
| Zero-Load Power | 4.2W / 5.2W / 7.9W |
| Default Zero-Load Power in ECO Mode | 0.8W / 1.3W / 2.5W (Retry interval: 2.5s, adjustable) |
| ECO Mode Stop & Start Power Setting | Adjustable |
| Protection Features | Short circuit, overload, battery voltage too high/low, overheating, DC ripple too high |
| Operating Temperature Range | -40°C to +65°C (Fan-assisted cooling) |
Enclosure Specifications
- Material & Color: Steel chassis with a blue RAL 5012 plastic cover.
- Battery Connection: Screw terminals supporting up to 10mm² / AWG8 cables.
-
AC Outlets:
- 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112)
- 120V: NEMA 5-15R, GFCI protected
- Protection Category: IP 21
- Weight: 2.4kg / 5.3lbs
- Dimensions (H x W x D): 86mm x 165mm x 260mm (3.4" x 6.5" x 10.2")
Included Accessories
- Remote On/Off Switch
- Automatic Transfer Switch: Filax
Compliance and Standards
The Phoenix Inverter adheres to stringent safety and electromagnetic compatibility (EMC) standards, ensuring reliable and safe operation on your vessel:
- Safety Standards: EN-IEC 60335-1, EN-IEC 62109-1, UL 458
- EMC Standards: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
-
Automotive Directive ECE R10-4:
- Supports nonlinear loads with a crest factor of 3:1
- Includes multiple protection keys:
- Output short circuit protection
- Overload protection
- Battery voltage too high protection
- Battery voltage too low protection
- Overheating protection
- DC ripple too high protection
Installation and Support
For proper installation, please refer to the provided manuals and guidelines. If you encounter any issues or need support, contact your local dealer for assistance with returns, repairs, or any other product-related concerns.
Additional Information
- GFCI: No
- Box Dimensions: 6" H x 9" W x 12" L
- Weight: 6.6 lbs
- UPC: 8719076035954
