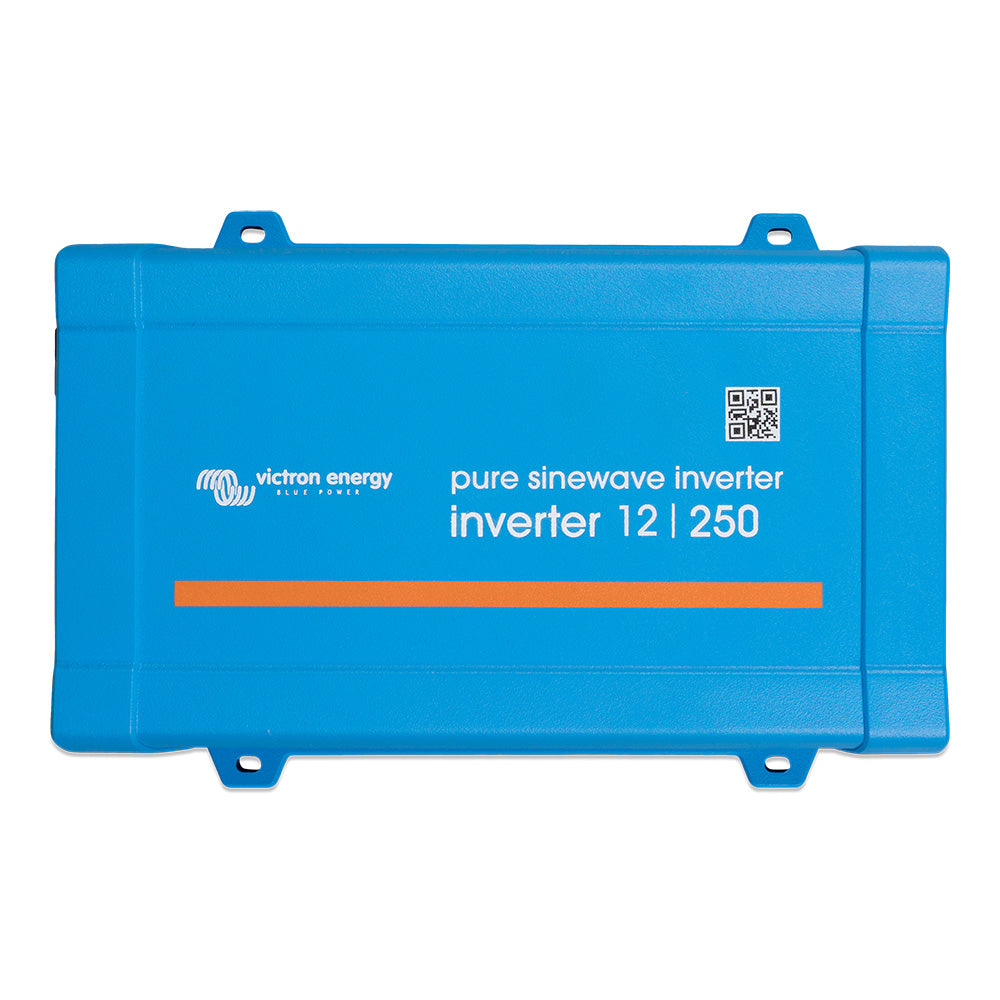

Victron Phoenix Inverter 12/250 - 120V - VE.Direct GFCI Duplex Outlet - 200W

The Phoenix Inverter 12/250 is the perfect power solution for marine and boating applications, enabling you to run essential 120V AC equipment seamlessly from your boat’s 12V battery system. Whether you're powering navigation tools, lighting, or entertainment systems, this reliable inverter ensures you have the energy you need while out on the water.

Key Features

• 200W Continuous Power and 400W Peak Power

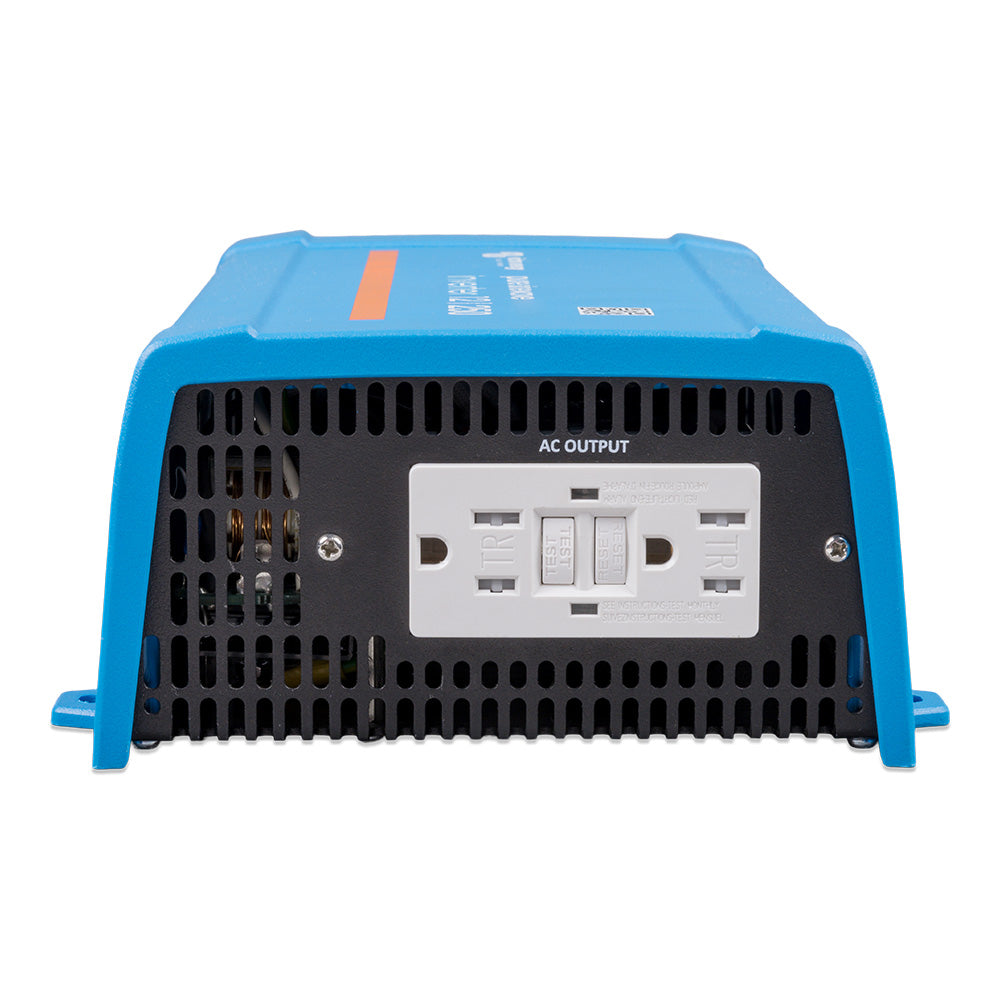

• GFCI Duplex Outlet for enhanced safety
• VE.Direct Communication Port for advanced monitoring and configuration
• Fully Configurable Settings to suit various power requirements
• Proven Reliability with robust protection features
• ECO Mode to optimize power usage and extend battery life
• Remote On/Off Capability for convenient control
• LED Diagnostics for easy troubleshooting

Advanced Connectivity

The Phoenix Inverter is equipped with a VE.Direct port, allowing seamless connection to a variety of devices:

• Computer (requires VE.Direct to USB interface cable)
• Apple and Android smartphones, tablets, MacBook, and other devices (requires VE.Direct Bluetooth Smart dongle)

Fully Configurable Settings

Customize the inverter’s performance to match your specific marine power needs:

• Adjustable low battery voltage alarm trip and reset levels
• Set low battery voltage cut-off and restart levels
• Dynamic cut-off based on load dependency
• Output voltage adjustable between 210V - 245V
• Frequency selectable at 50 Hz or 60 Hz
• ECO mode toggle and sensing level adjustments

Comprehensive Monitoring

Stay informed about your power system’s status with real-time monitoring:

• Input and output voltage display
• Percentage load indicator
• Alarm notifications for critical conditions

Proven Reliability

The Phoenix Inverter utilizes a full bridge plus toroidal transformer topology, ensuring long-term reliability even in demanding marine environments. It is short-circuit proof and protected against overheating caused by overloads or high ambient temperatures.

High Start-Up Power

Capable of handling the initial surge required to start power converters for LED lamps, halogen lamps, electric tools, and other high-startup power devices essential on board.

ECO Mode

Optimize power consumption with ECO mode, which switches the inverter to standby when the load drops below a preset value (minimum load: 15W). The inverter periodically checks the load every 2.5 seconds (adjustable) and resumes operation if the load exceeds the preset threshold.

Remote On/Off Control

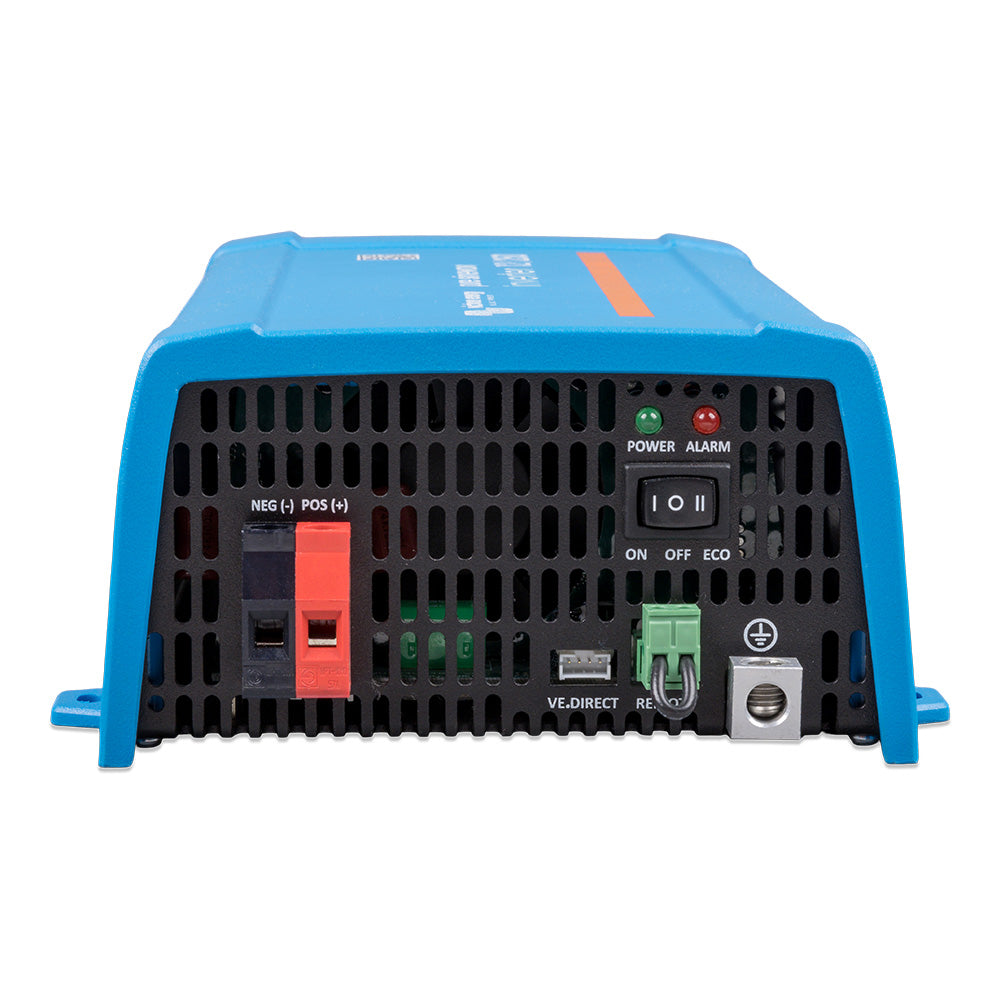

Easily manage your inverter with a remote on/off switch connected to a two-pole connector or between battery positive and the left-hand contact of the two-pole connector.

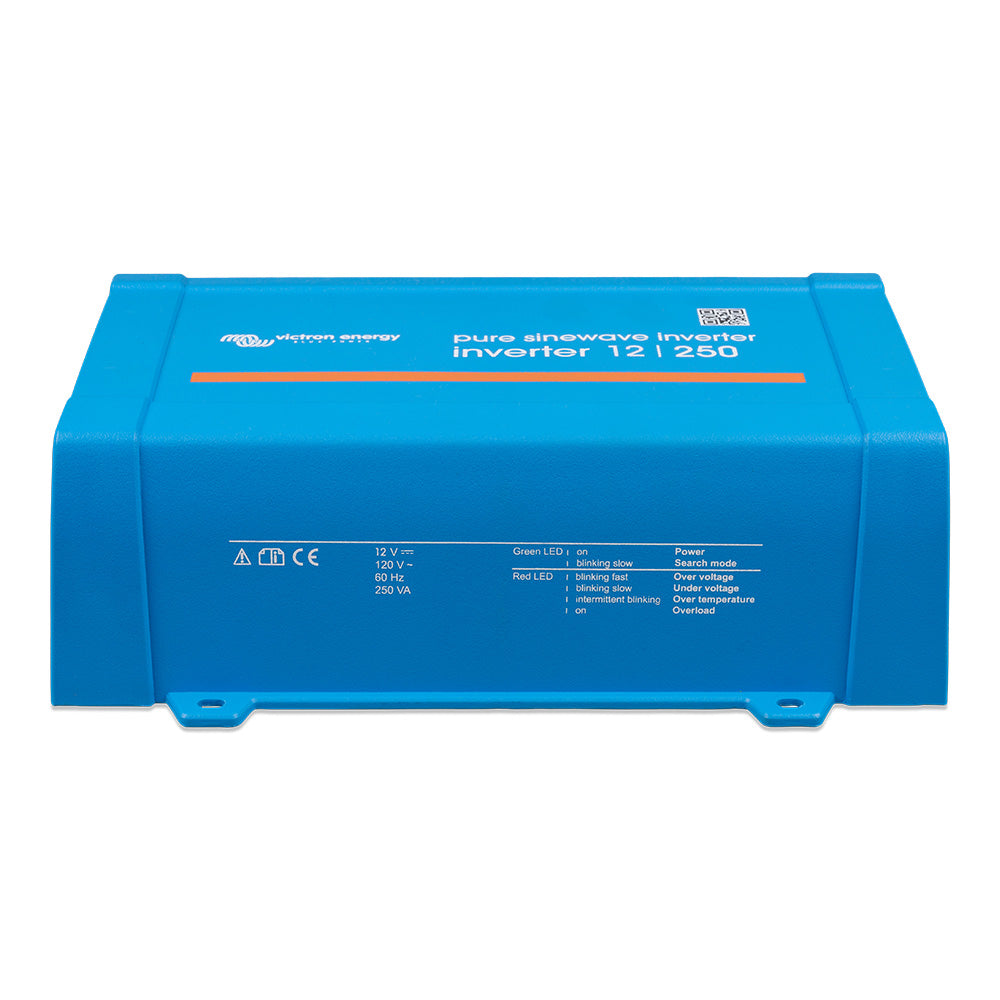

LED Diagnostics

Quickly identify and resolve issues using the built-in LED diagnostic indicators. Refer to the manual for detailed descriptions of each LED signal.

Automatic Transfer Switch

Ensure uninterrupted power supply by integrating the Filax Automatic Transfer Switch, recommended for Victron’s low-power inverters. With a switchover time of less than 20 milliseconds, it guarantees that sensitive equipment like computers and electronics remain operational without disruption.

Inverter Specifications

Parameter	Specification
Continuous Power at 25°C	250VA
Continuous Power at 25°C / 40°C	200W / 175W
Peak Power	400W
Output AC Voltage / Frequency	230VAC or 120VAC ±3%, 50Hz or 60Hz ±0.1%
Input Voltage Range	9.2 - 17V / 18.4 - 34.0V / 36.8 - 62.0V DC
DC Low Shut Down (Adjustable)	9.3V / 18.6V / 37.2V
Dynamic DC Low Shut Down	Fully configurable dynamic cut-off
DC Low Restart & Alarm (Adjustable)	10.9V / 21.8V / 43.6V
Battery Charge Detection (Adjustable)	14.0V / 28.0V / 56.0V
Maximum Efficiency	87% / 88% / 88%
Zero-Load Power	4.2W / 5.2W / 7.9W
Default Zero-Load Power in ECO Mode	0.8W / 1.3W / 2.5W
ECO Mode Stop & Start Power Setting	Adjustable
Protection Features	Short circuit, overload, battery over/under voltage, overheating, DC ripple
Operating Temperature Range	-40°C to +65°C (fan-assisted cooling)

Enclosure Specifications

Feature	Specification
Material & Color	Steel chassis with blue RAL 5012 plastic cover
Battery Connection	Screw terminals
Maximum Cable Cross-Section	10mm² / AWG8
Standard AC Outlets	230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: NEMA 5-15R, GFCI
Protection Category	IP 21
Weight	2.4kg / 5.3lbs
Dimensions (H x W x D)	86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 inches

Included Accessories

• Remote On-Off Switch
• Filax Automatic Transfer Switch

Compliance and Standards

• Safety: EN-IEC 60335-1, EN-IEC 62109-1, UL 458 (3)
• EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Automotive Directive ECE R10-4:
  1. Nonlinear load, crest factor 3:1
  2. Protection key:
     • Output short circuit
     • Overload
     • Battery voltage too high
     • Battery voltage too low
     • Temperature too high
     • DC ripple too high

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

• GFCI: Yes
• Box Dimensions: 6"H x 9"W x 13"L
• Weight: 7.3 lbs
• UPC: 8719076050193

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
