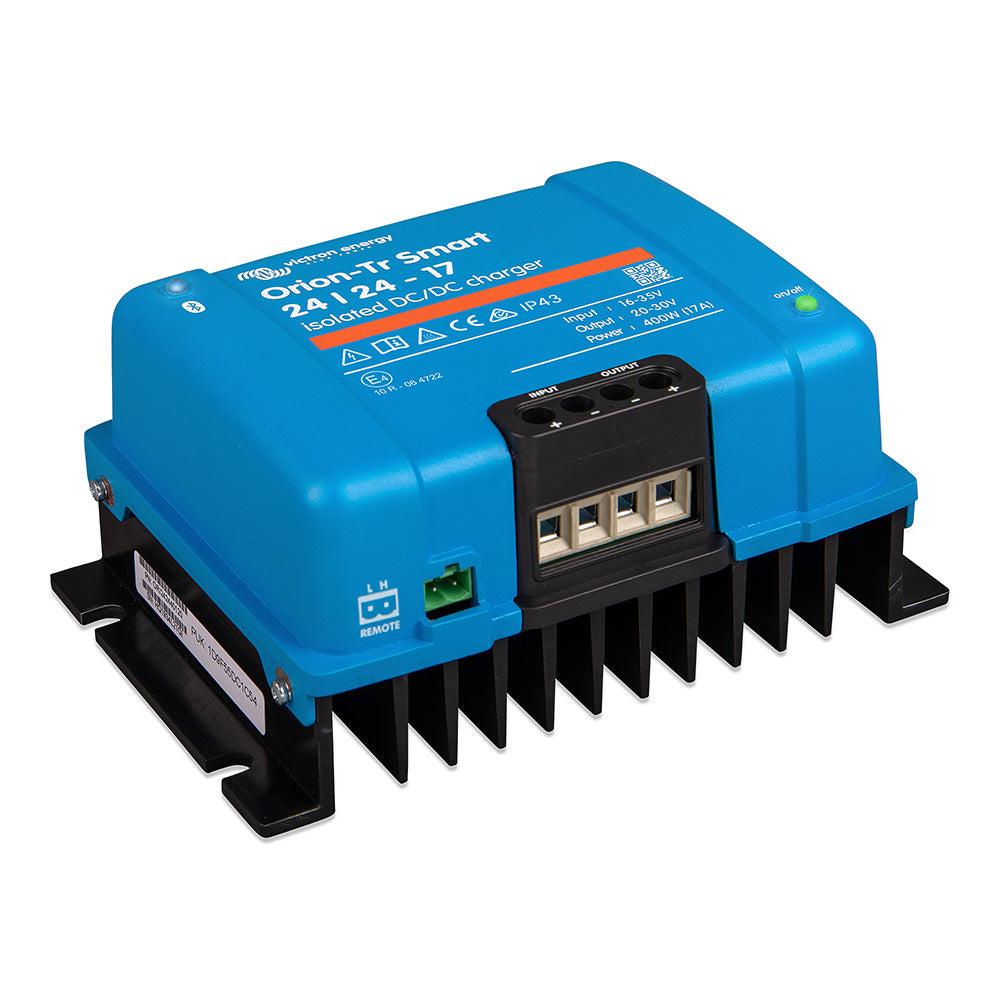

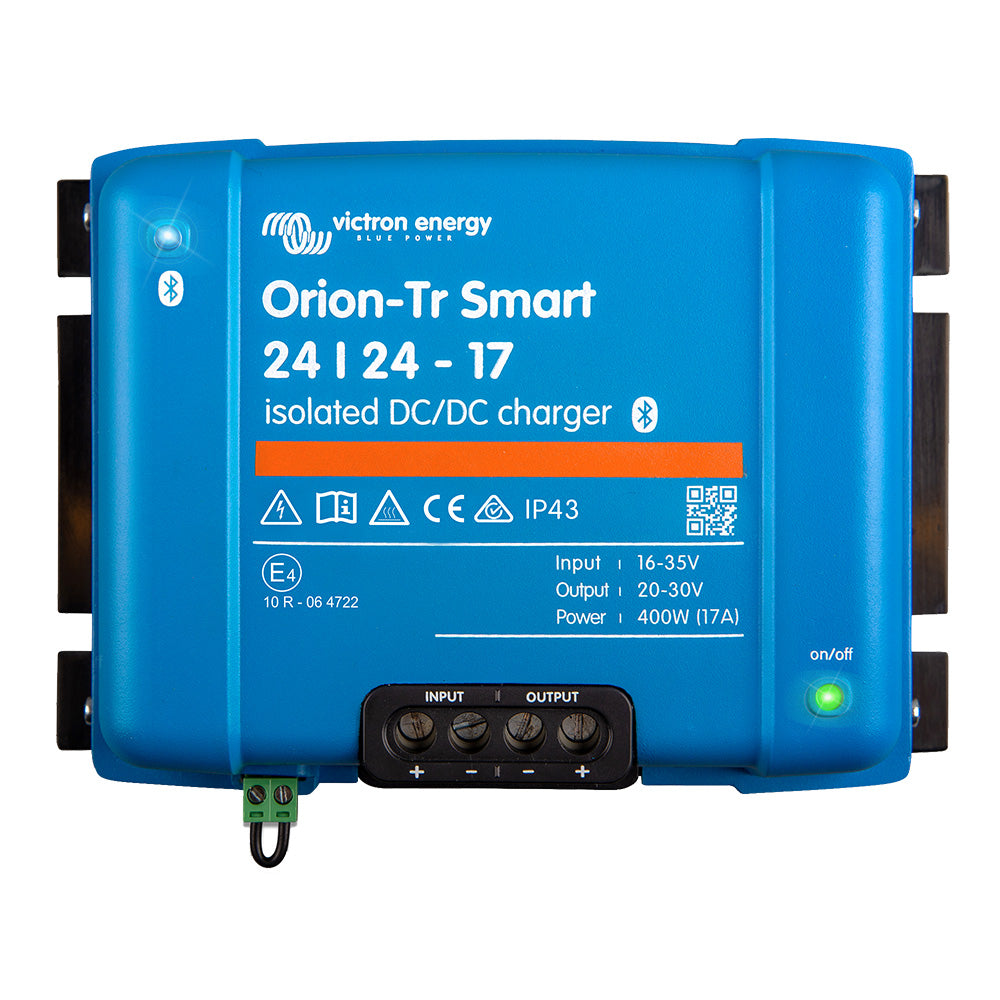

Victron Orion-TR Smart DC-DC 24/24-17 17a (400W) Isolated Charger or Power Supply
Victron Orion-TR Smart DC-DC 24/24-17 17a (400W) Isolated Charger or Power Supply is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Orion-TR Smart Isolated DC-DC Converter is the perfect solution for marine and boating applications, providing reliable and efficient power management on your vessel. With its robust 400W capacity and advanced features, it ensures your boat's electrical systems operate smoothly, whether you're cruising the open seas or anchored at the marina.
Advanced Bluetooth Smart Connectivity
- Monitor and control your DC-DC converter effortlessly using any Bluetooth-enabled smartphone, tablet, or device.
- Access real-time data, adjust settings, and receive software updates through the VictronConnect App.
- Instant Readout: View key metrics, warnings, and alarms directly on the device list page without needing to connect physically.
Fully Programmable for Custom Applications
- Configure your battery charge algorithm or set a fixed output to match your specific marine power needs.
- Smart alternator compatibility features engine running detection to optimize charging.
Adaptive 3-Stage Charging
- Bulk – Absorption – Float: Enhances battery longevity by adjusting charge stages based on battery type and discharge depth.
- For lead-acid batteries, minimizes overcharging during shallow discharges and ensures complete recharge after deep discharges.
- For lithium batteries, maintains a fixed absorption time of 2 hours for optimal performance.
Designed for Boats with Smart Alternators (Euro 5 and Euro 6 Engines)
- Built-in engine shutdown detection prevents unwanted discharge of the starter battery when the engine is not running.
- Enhances overall energy management on your vessel.
Remote On/Off Control
- Easily integrate a remote on/off switch or relay contact using the two-pole connector.
- Customize connections by switching terminals to battery plus or minus for seamless integration with your boat's electrical system.
Expandable and Safe Power Management
- All models are short circuit proof and can be connected in parallel to increase output current as needed.
- An unlimited number of units can be paralleled without compromising performance.
Reliable Protection Features
- High Temperature Protection: Automatically reduces output current in high ambient temperatures to prevent overheating.
- IP43 Protection: Ensures durability against moisture and dust when installed with screw terminals facing downward.
- Screw Terminals: Simple installation without the need for special tools.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage Range | 20-35 V |
| Under Voltage Shut Down | 14 V |
| Under Voltage Restart | 15 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at Nominal Voltage and 40°C | 17 A |
| Maximum Output Current (10 S) | 25 A |
| Short Circuit Output Current | 40 A |
| Continuous Output Power at 25°C | 480 W |
| Continuous Output Power at 40°C | 400 W |
| Efficiency | 89% |
| No Load Input Current | < 80 mA |
| Standby Current | Less than 1 mA |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55°C (derates 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Weight | 1.6 kg (3.5 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches) |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Safety Standards | EN 60950 |
| Immunity Standards | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Easy Installation and Support
- The converter features screw terminals for straightforward installation without the need for specialized tools.
- Input fuse is built-in and not replaceable, ensuring consistent performance and safety.
Please contact your dealer for any returns, repairs, or support issues related to this product.
