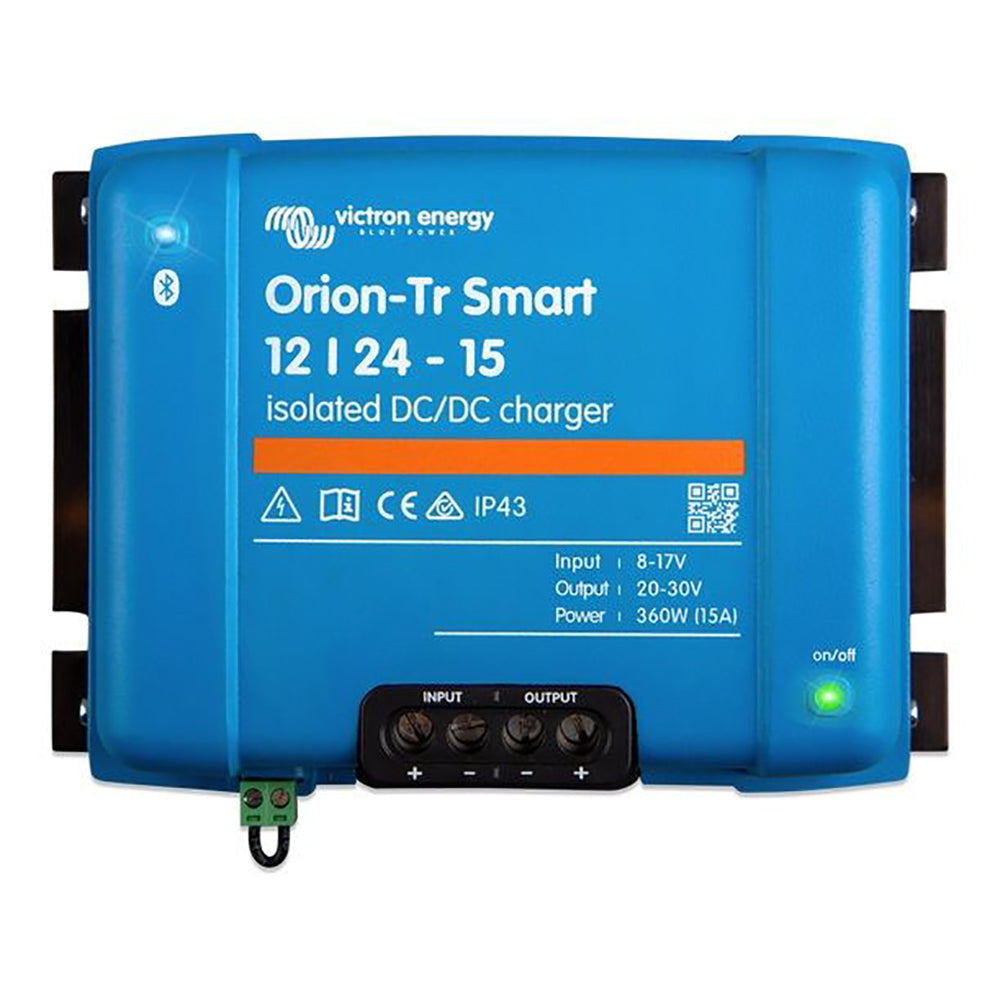

Victron Orion-TR Smart DC-DC 12/24-15 15A (360W) Isolated Charger or Power Supply

Enhance your boat's electrical system with the Orion-TR Smart 12/24-15A (360W) Isolated DC-DC Charger. Engineered for marine applications, this charger ensures reliable and efficient power management, safeguarding your batteries and maintaining optimal performance even in demanding marine environments.

Key Features

Bluetooth Smart Enabled

Easily monitor and control your charger using any Bluetooth-enabled smartphone, tablet, or device. The VictronConnect App allows you to:

• Monitor real-time performance and battery status
• Adjust settings and customize charging parameters
• Receive software updates for new features
• View instant readouts of key data, warnings, and alarms without direct connection

Fully Programmable

Customize the charging process to suit your specific needs with fully programmable settings:

• Adjustable battery charge algorithms or use a fixed output for consistent power delivery
• Smart Alternator Compatibility detects engine status to optimize charging

Adaptive 3-Stage Charge Algorithm

Ensure your batteries are charged efficiently and safely with an adaptive charging process:

• Bulk Stage: Rapidly charges the battery to a set voltage
• Absorption Stage: Maintains optimal voltage to fully charge the battery without overcharging
• Float Stage: Keeps the battery at a steady voltage to maintain charge without stress

For lead-acid batteries, the absorption time adjusts based on discharge depth to prevent overcharging. Lithium batteries have a fixed absorption time of 2 hours, or you can choose a fixed output voltage.

Smart Alternator Compatibility

Designed for boats with Euro 5 and Euro 6 smart alternators, the charger features an engine shutdown detection mechanism that stops the converter when the engine is off. This prevents unwanted discharge of the starter battery, ensuring reliable starting power every time.

Remote On/Off Control

Easily integrate remote control by connecting a switch or relay to the two-pole connector. Alternatively, you can switch the H terminal to battery positive or the L terminal to battery negative or chassis ground.

Scalable Performance

All models are short circuit proof and can be paralleled to increase output current. You can connect an unlimited number of units in parallel to meet your power requirements.

High Temperature Protection

Protect your system in high-temperature environments. The charger automatically reduces output current when ambient temperatures rise, preventing overheating and ensuring safe operation.

Durable and Weather-Resistant

With an IP43 protection rating, the charger is suitable for marine environments when installed with screw terminals facing downward, providing reliable performance even in harsh weather conditions.

Easy Installation

Installation is straightforward with screw terminals that require no special tools. The input fuse is integrated and not replaceable, ensuring safety and ease of use.

Specifications

Parameter	Value
Input Voltage Range	10-17 V
Under Voltage Shut Down	7 V
Under Voltage Restart	7.5 V
Nominal Output Voltage	24.2 V
Output Voltage Adjust Range	20-36 V
Output Voltage Tolerance	±0.2 V
Output Noise	2 mV rms
Continuous Output Current at Nominal Output Voltage and 40°C	15 A
Maximum Output Current (10 S) at Nominal Output Voltage minus 20%	25 A
Short Circuit Output Current	40 A
Continuous Output Power at 25°C	430 W
Continuous Output Power at 40°C	360 W
Efficiency	88%
No Load Input Current	< 100 mA
Standby Current	Less than 1 A
Use as Power Supply	Yes, output voltage can be set with Bluetooth
Galvanic Isolation	200 VDC between input, output, and case
Operating Temperature Range	-20 to +55 °C (derate 3% per °C above 40°C)
Humidity	Max. 95% non-condensing
DC Connection	Screw terminals
Maximum Cable Cross-Section	16 mm² / AWG6
Weight	1.8 kg (3 lb)
Dimensions (H x W x D)	130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches)
Protection Category	IP43 (electronic components), IP22 (connection area)
Safety Standards	EN 60950
Emission/Immunity Standards	EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive Standards	ECE R10-5

Safety and Compliance

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Product Specifications

Feature	Details
Portable	No
Charging Banks	1
Charger Output Voltage	24V
Charger Output - Amps	15A
Charger Input - Voltage	12V
Box Dimensions	4"H x 6"W x 8"L
Weight	4.4 lbs
UPC	8719076047704

Download the Quick Guide (PDF)
