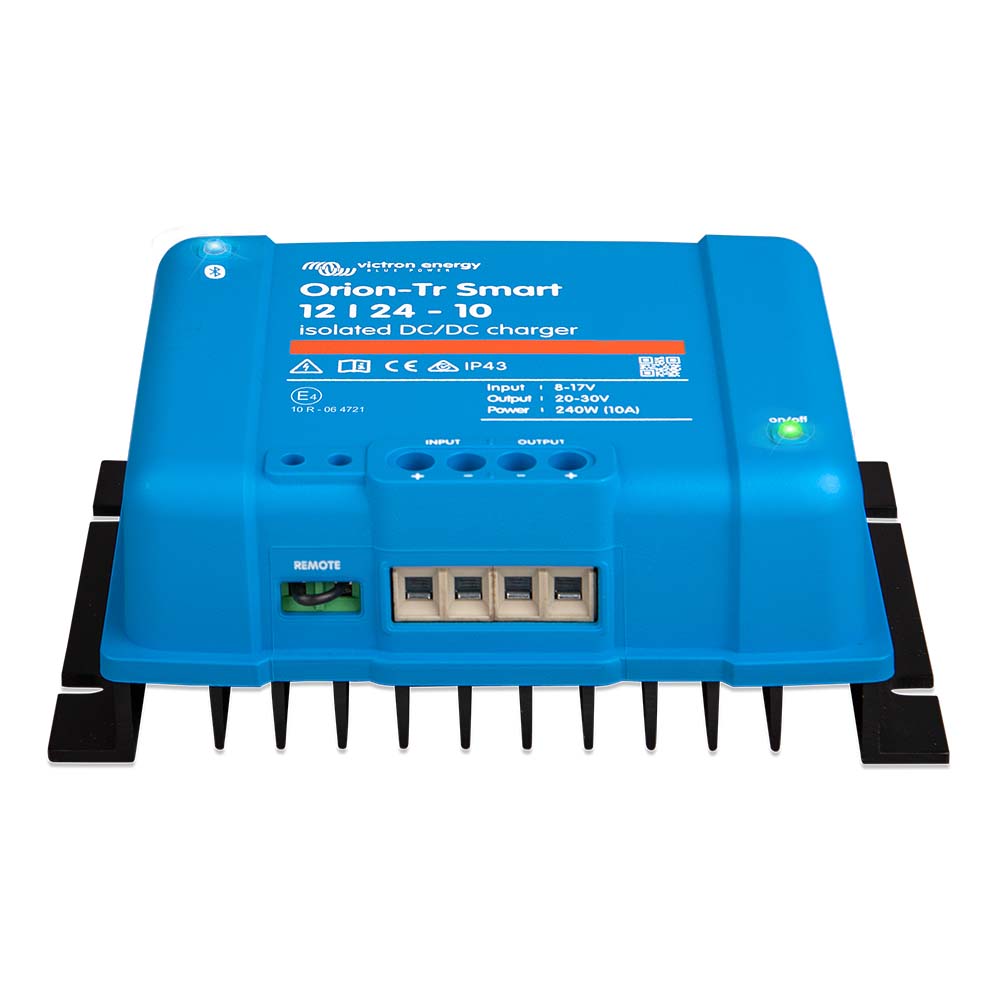

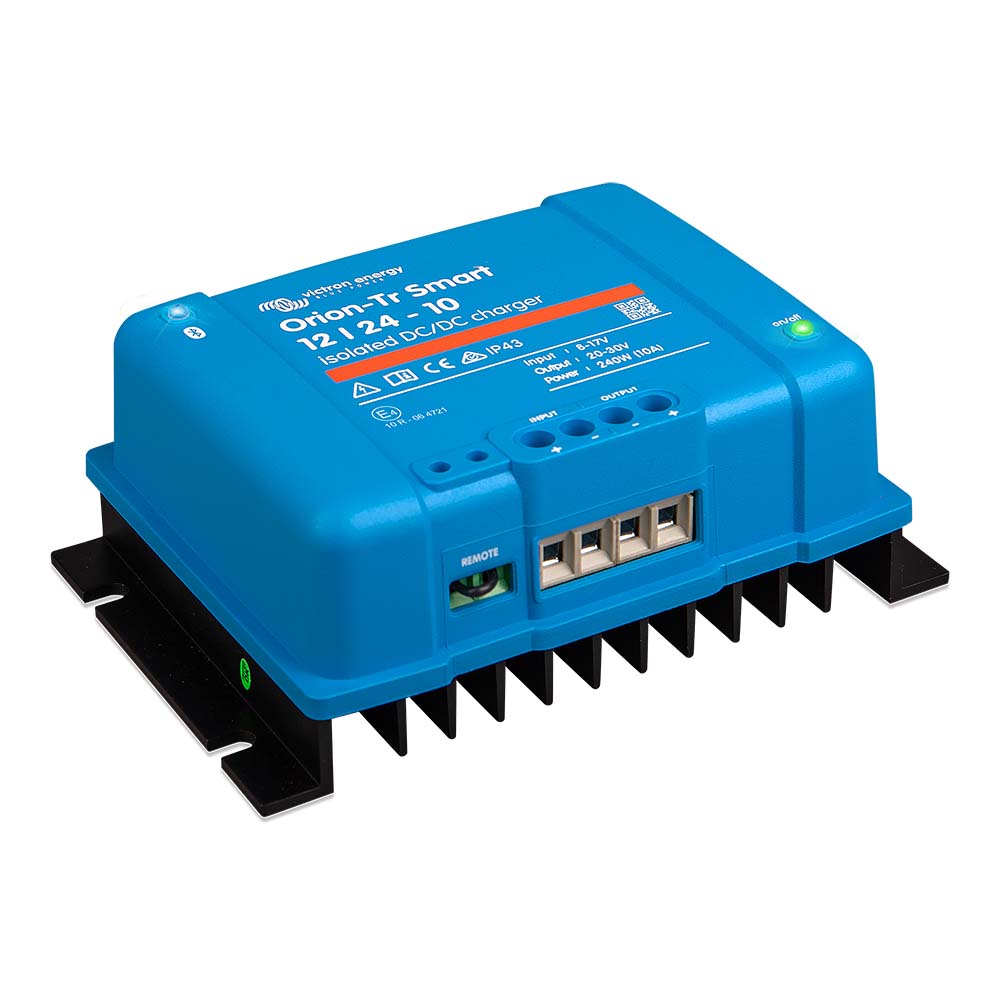

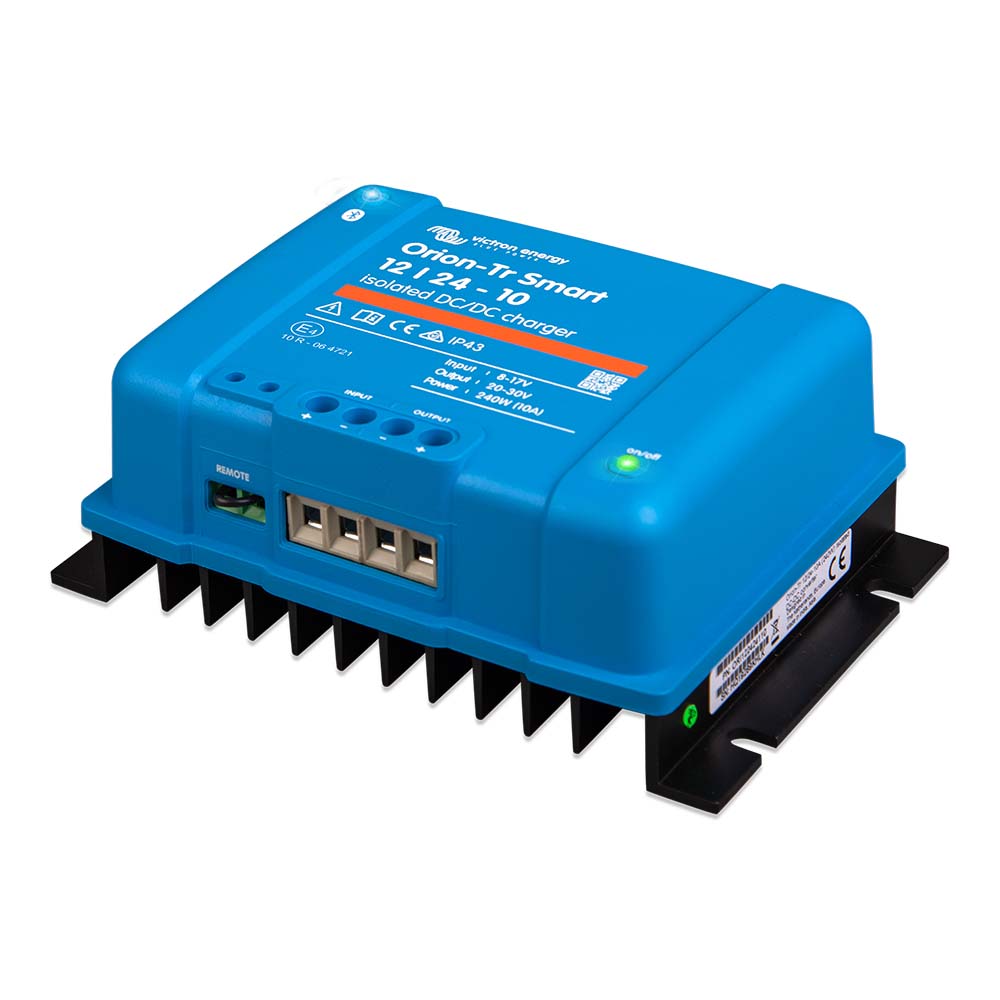

Victron Orion-Tr Smart 12/24 10 AMP (240W) Isolated DC-DC Charger or Power Supply
Victron Orion-Tr Smart 12/24 10 AMP (240W) Isolated DC-DC Charger or Power Supply is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Orion-TR Smart 12/24-10A (240W) Isolated DC-DC Charger is an essential power management solution for marine and boating applications. Designed to ensure optimal battery charging and provide a stable power supply, this versatile device caters to the unique demands of boats, RVs, and other mobile setups.
Key Features
Bluetooth Smart Connectivity
- Monitor, adjust settings, and update firmware using any Bluetooth-enabled smartphone, tablet, or device.
- Real-time data display through the VictronConnect App, including warnings and alarms, without needing to connect directly to the charger.
Fully Programmable Settings
- Customizable battery charge algorithms or fixed output options to suit different battery types.
- Smart Alternator Compatibility with engine running detection to optimize charging performance.
Adaptive 3-Stage Charge Algorithm
- Bulk: Rapidly charges the battery to a set voltage.
- Absorption: Maintains the charge voltage, adjusting time based on battery discharge levels.
- Float: Sustains the battery at a safe voltage to prevent overcharging.
For lead-acid batteries, the absorption phase duration is automatically adjusted based on discharge depth, while for lithium batteries, a fixed absorption time of 2 hours ensures complete charging.
Smart Alternator Compatibility
Optimized for vehicles equipped with Euro 5 and Euro 6 smart alternators, the charger includes an engine shutdown detection feature to prevent unwanted discharge of the starter battery when the engine is off.
Remote On/Off Control
Easily manage the charger’s operation with a remote switch or relay contact connected to the two-pole connector. Alternatively, control can be achieved by switching the H terminal to battery plus or the L terminal to battery minus.
Scalable and Protective Design
- Short circuit proof and capable of being paralleled with multiple units to increase output current as needed.
- High temperature protection reduces output current in elevated ambient conditions.
- IP43 protection rating ensures durability when installed with screw terminals facing downward.
Easy Installation
Equipped with screw terminals, the charger requires no special tools for installation. An input fuse is included (non-replaceable) to safeguard the system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range | 8-17 V |
| Under Voltage Shut Down | 7 V |
| Under Voltage Restart | 7.5 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at Nominal Voltage (40°C) | 10 A |
| Maximum Output Current (10 seconds) at 80% Nominal Voltage | 15 A |
| Short Circuit Output Current | 25 A |
| Continuous Output Power | 280 W at 25°C, 240 W at 40°C |
| Efficiency | 88% |
| No Load Input Current | < 100 mA |
| Standby Current | Less than 1 A |
| Power Supply Usage | Yes, output voltage can be set via Bluetooth |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55 °C (derates 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² (AWG6) |
| Weight | 1.8 kg (3 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in) |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Safety Standards | EN 60950 |
| Emission/Immunity Standards | EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Why Choose Orion-TR Smart DC-DC Charger for Your Marine Setup?
Whether you're outfitting a boat, RV, or any other marine vehicle, the Orion-TR Smart DC-DC Charger ensures your batteries stay charged efficiently and safely. Its advanced features like Bluetooth connectivity, smart alternator compatibility, and adaptive charging algorithms provide reliable performance even in demanding conditions.
