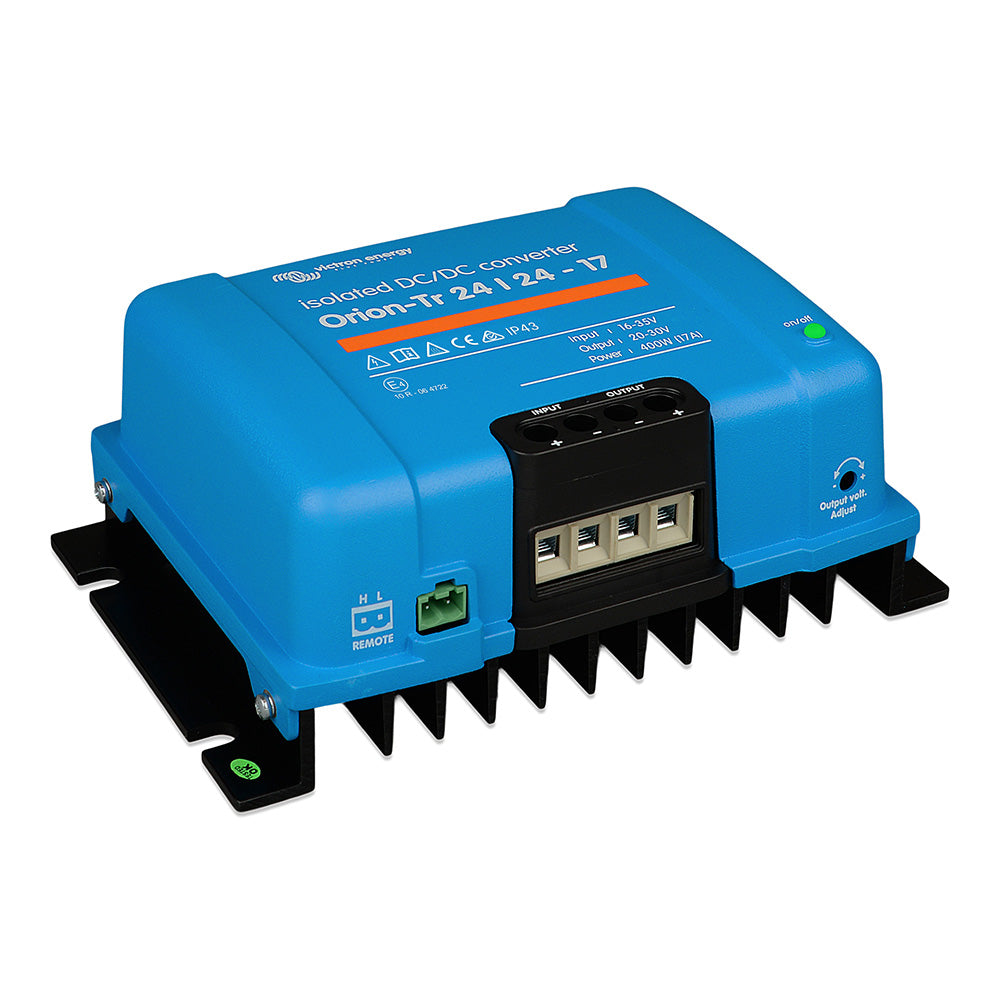

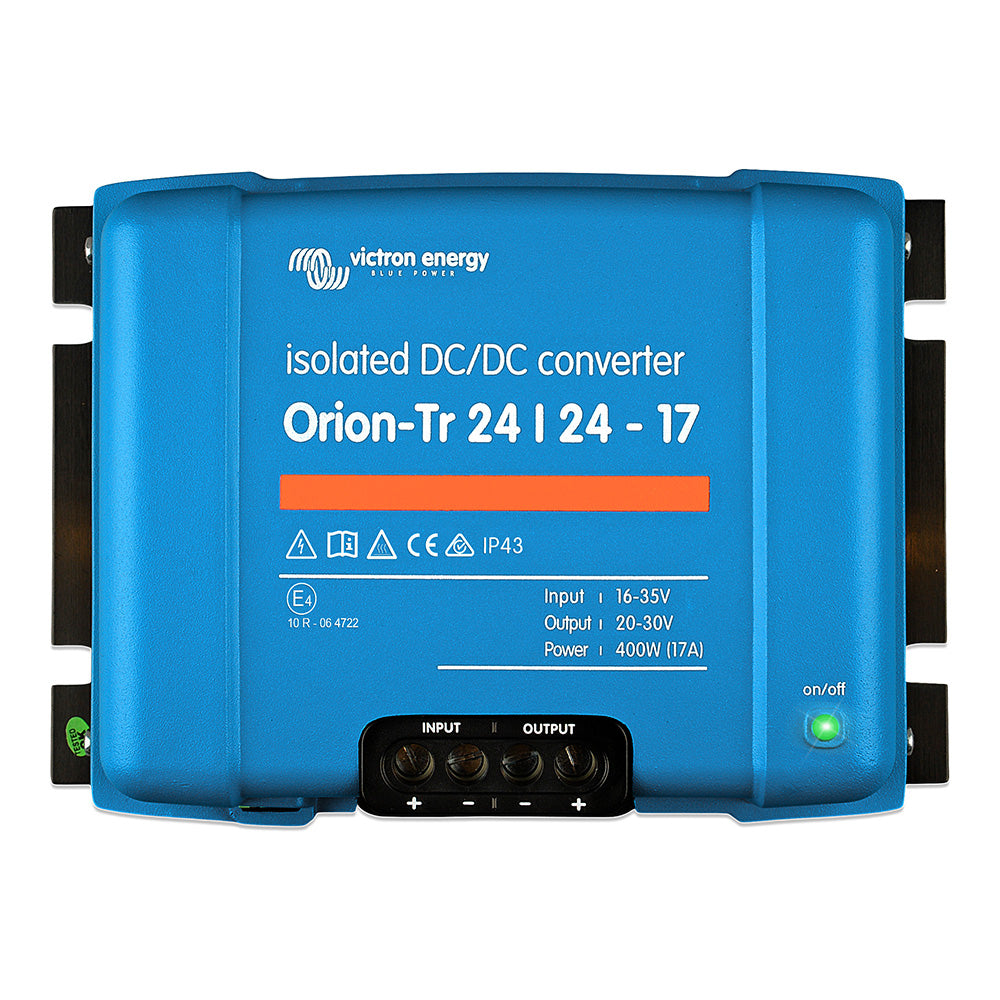

Victron Orion-TR Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP
Victron Orion-TR Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Orion-TR 24/24-17A (400W) Isolated DC-DC Converter is a dependable power management solution tailored for marine and boating applications. Engineered to deliver consistent voltage conversion, robust protection features, and effortless installation, this converter ensures reliable performance in the demanding marine environment.
Key Features
- Isolated Design - Separate input and output (-) leads provide enhanced safety, crucial for marine electrical systems.
- Remote On/Off Control - Seamlessly integrate with your boat's engine run/stop switch or a low power switch, eliminating the need for high current switches in the input wiring.
- Short Circuit Protection - Safeguards your marine electronics by preventing damage from short circuits.
- Paralleling Capability - Connect unlimited units in parallel to scale your power output, accommodating various marine power requirements.
- High Temperature Protection - Automatically reduces output current in high ambient temperatures, ensuring safe operation in the warm marine environment.
- IP43 Enclosure - Offers protection against solid objects larger than 1mm and low-pressure water spray, ideal for marine installations when screw terminals are oriented downward.
- Easy Installation - Equipped with user-friendly screw terminals that require no special tools for secure and efficient setup.
- Built-in Input Fuse - Integrated and non-replaceable fuse on 12 V and 24 V input models provides added safety without maintenance.
- Adjustable Output Voltage - Customize the output voltage between 20-30 V to meet your specific marine electrical needs (note: not intended for battery charging; consider using an Orion-Tr Smart for battery charging).
Remote On/Off Control
The Orion-TR’s remote on/off terminal allows you to control the converter using a low power switch, such as your boat's engine run/stop switch. This integration simplifies your wiring setup by removing the need for bulky high current switches in the input circuit.
Paralleling for Enhanced Power
Designed for flexibility, multiple Orion-TR units can be paralleled to increase the total output current. This feature is perfect for marine applications where power demands may vary, ensuring that your electrical system remains reliable and scalable.
Protection Features
- Short Circuit Protection - Prevents damage to connected marine electronics by limiting output current during a short circuit.
- High Temperature Protection - Reduces output current when operating in high ambient temperatures to safeguard the converter and connected devices.
- IP43 Rating - Ensures protection against solid objects and water spray, suitable for installation in various marine environments when installed correctly.
- Galvanic Isolation - Provides 200 VDC isolation between input, output, and case, enhancing the safety of your boat's electrical system.
Easy Installation
The Orion-TR 24/24-17A is designed for straightforward installation in your marine setup. The screw terminals allow for quick and secure connections without the need for specialized tools. Ensure that the unit is installed with the screw terminals facing downward to maintain the IP43 protection against water spray.
Adjustable Output Voltage
Adapt the output voltage to your specific requirements with the adjustable voltage feature, ranging from 20 to 30 V. This flexibility makes the Orion-TR suitable for a variety of marine applications. However, this model is not intended for battery charging; for charging purposes, the Orion-Tr Smart is recommended.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 20-35 V |
| Under Voltage Shut Down | 14 V |
| Under Voltage Restart | 15 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at 24.2 V and 40°C | 17 A |
| Maximum Output Current (10 S) | 25 A |
| Short Circuit Output Current | 40 A |
| Continuous Output Power | 480 W at 25°C, 400 W at 40°C |
| Efficiency | 89% |
| No Load Input Current | < 80 mA |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Weight | 1.6 kg (3.5 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in) |
| Safety Standards | EN 60950 |
| Emission Standards | EN 61000-6-3, EN 55014-1 |
| Immunity Standards | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Packaging Details
| Parameter | Value |
|---|---|
| Charger Input Voltage | 24 V |
| Charger Output Current | 17 A |
| Charger Output Voltage | 24 V |
| Box Dimensions | 3" H x 5" W x 9" L |
| Weight | 2.9 lbs |
| UPC | 8719076038856 |
