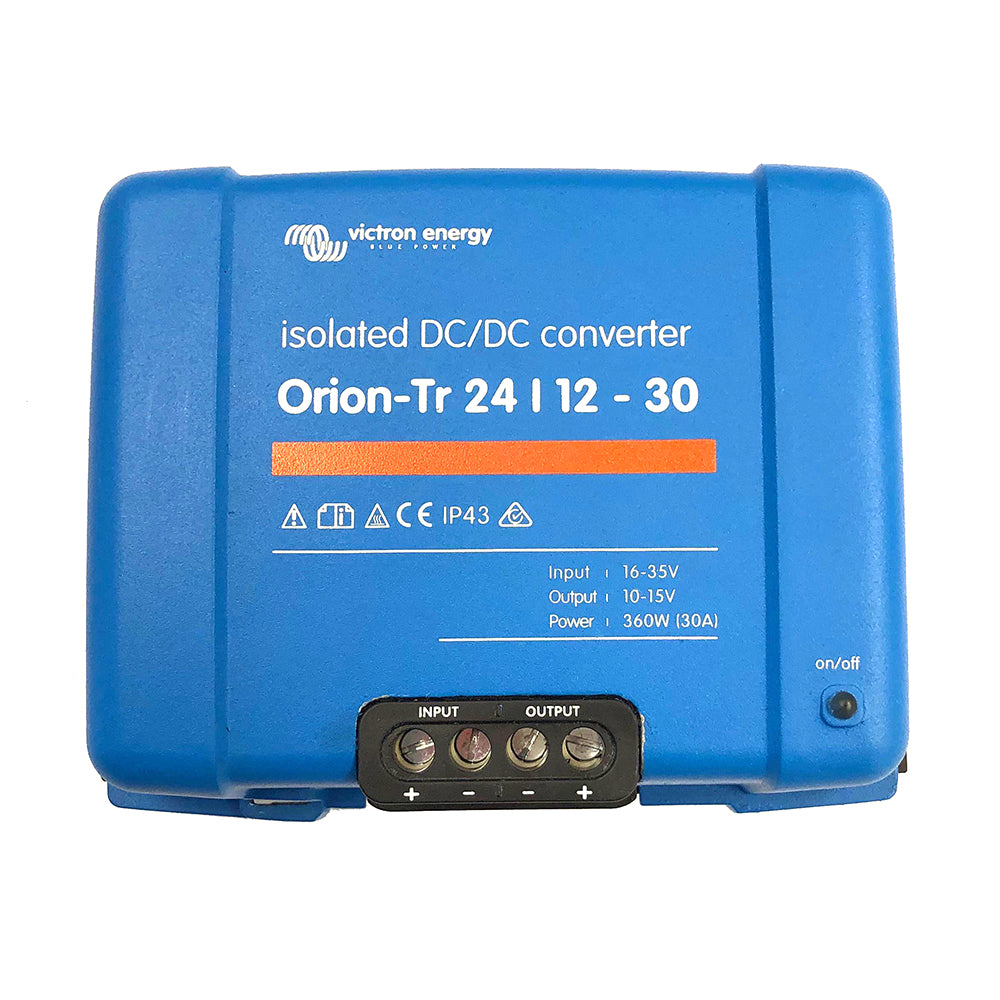

Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 30AMP Isolated

The Orion-TR 24/12-30A (360W) Isolated DC-DC Converter is engineered specifically for marine and boating applications, providing reliable and efficient power conversion to keep your vessel's electrical systems running smoothly.

Product Highlights

• Isolated Design: Features separate positive and negative leads for both input and output, ensuring optimal safety and performance in marine environments.
• Remote On/Off Control: Simplify your boat’s wiring by using a low power switch or integrating with your engine’s run/stop switch, eliminating the need for high current switches in the input wiring.
• Scalable Power: Short circuit proof with the ability to parallel multiple units, allowing you to increase output current as needed for your boat’s power requirements.
• Thermal Protection: Automatically reduces output current in high ambient temperatures to prevent overheating, ensuring consistent performance even in warm marine climates.
• Durable IP43 Rating: Designed to withstand harsh marine conditions when installed with screw terminals facing downward, providing protection against water splashes and dust.
• Easy Installation: Equipped with screw terminals that require no special tools, making setup straightforward for marine enthusiasts.
• Safe Operation: Includes a non-replaceable input fuse for 12V and 24V models, enhancing safety within your boat’s electrical system.
• Adjustable Voltage: Offers output voltage adjustment from 10V to 15V, though it is not recommended for battery charging applications. For battery charging, consider the Orion-TR Smart model.

Technical Specifications

Parameter	Specification
Input Voltage Range	20-35 V
Under Voltage Shut Down	14 V
Under Voltage Restart	15 V
Nominal Output Voltage	12.2 V
Output Voltage Adjustable Range	10-15 V
Output Voltage Tolerance	±0.2 V
Output Noise	2 mV rms
Continuous Output Current at 12.2 V and 40°C	30 A
Maximum Output Current (10 Seconds)	45 A
Short Circuit Output Current	60 A
Continuous Output Power at 25°C	430 W
Continuous Output Power at 40°C	360 W
Efficiency	88%
No Load Input Current	< 100 mA
Current Consumption When Disabled via Remote Port	< 200 µA
Galvanic Isolation	200 VDC between input, output, and case
Operating Temperature Range	-20°C to +55°C (derate 3% per °C above 40°C)
Humidity	Max. 95% non-condensing
DC Connection	Screw terminals
Maximum Cable Cross-Section	16 mm² AWG6
Weight	1.3 kg (3 lb)
Dimensions (H x W x D)	130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches)
Safety Standards	EN 60950
Immunity Standards	EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive Standards	ECE R10-5

Additional Specifications

Feature	Detail
Charger Input Voltage	24 V
Charger Output Amperage	30 A
Charger Output Voltage	12 V
Box Dimensions	4" H x 6" W x 8" L
Weight	4.1 lbs
UPC	8719076038849

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
