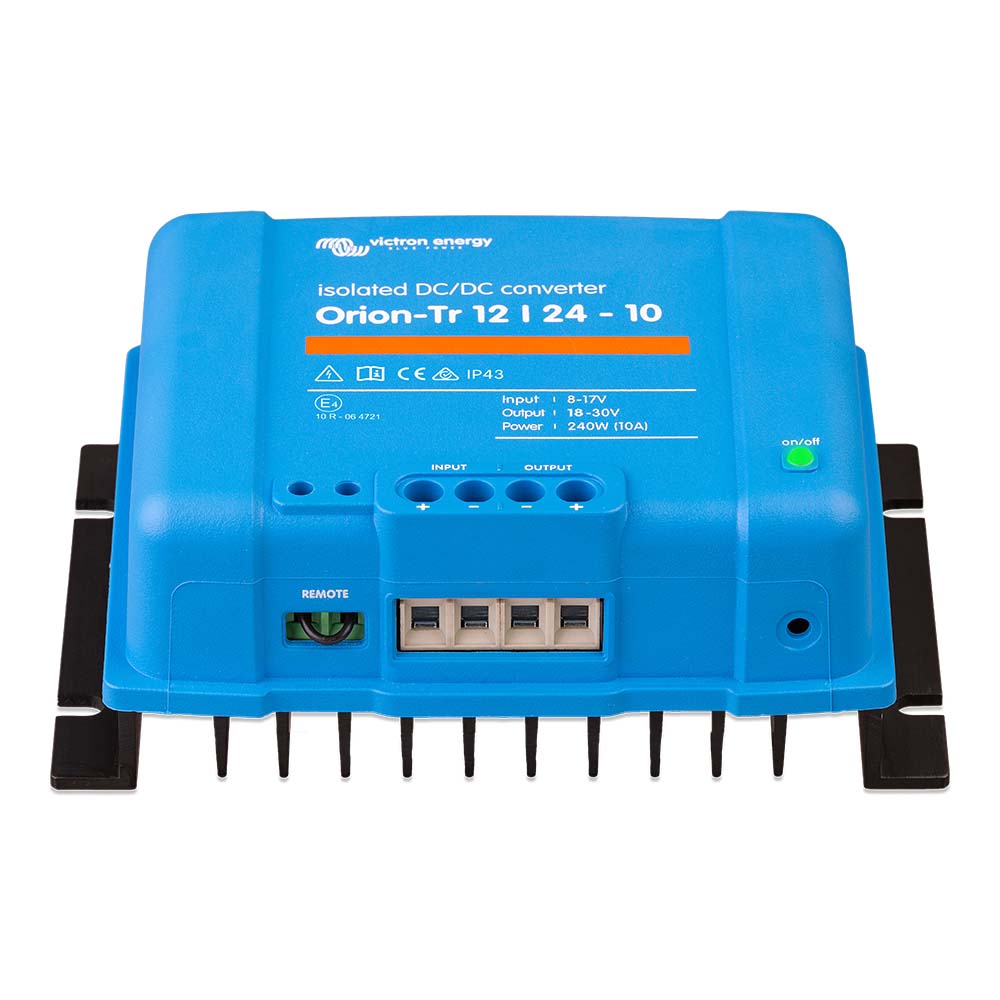

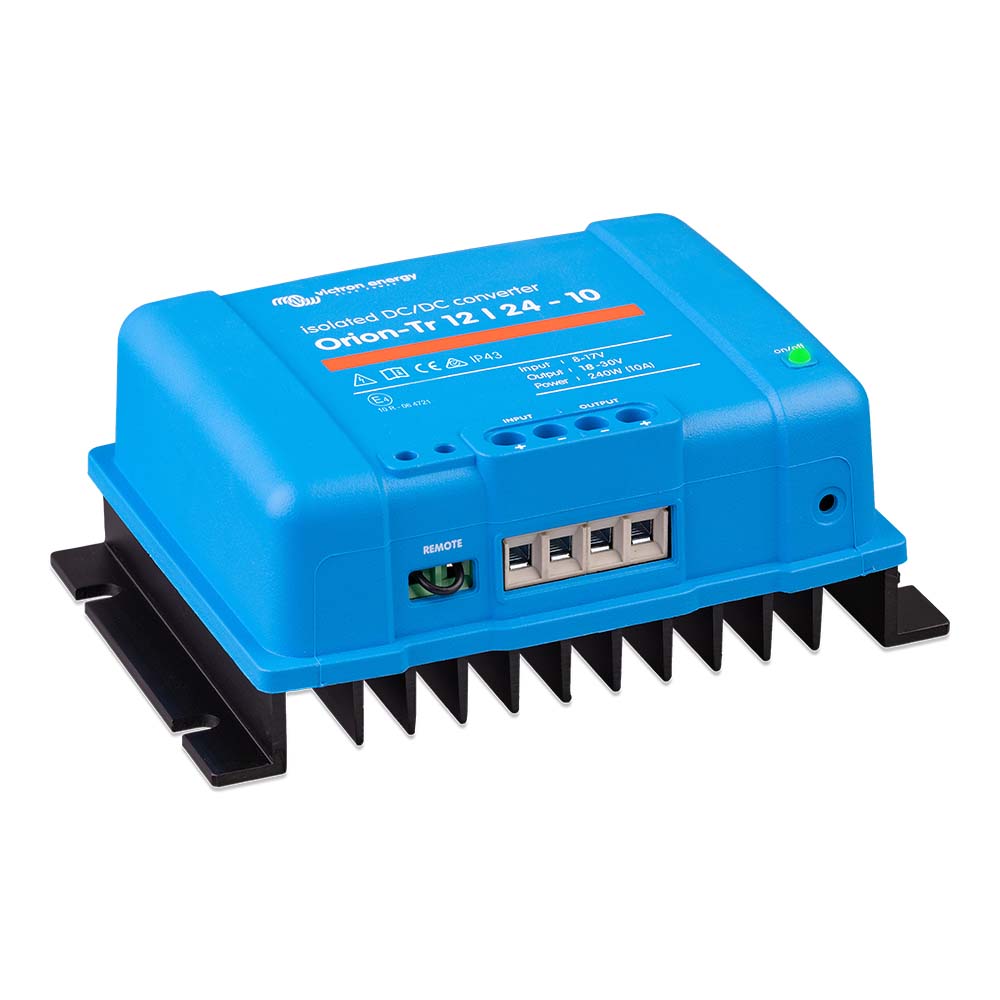

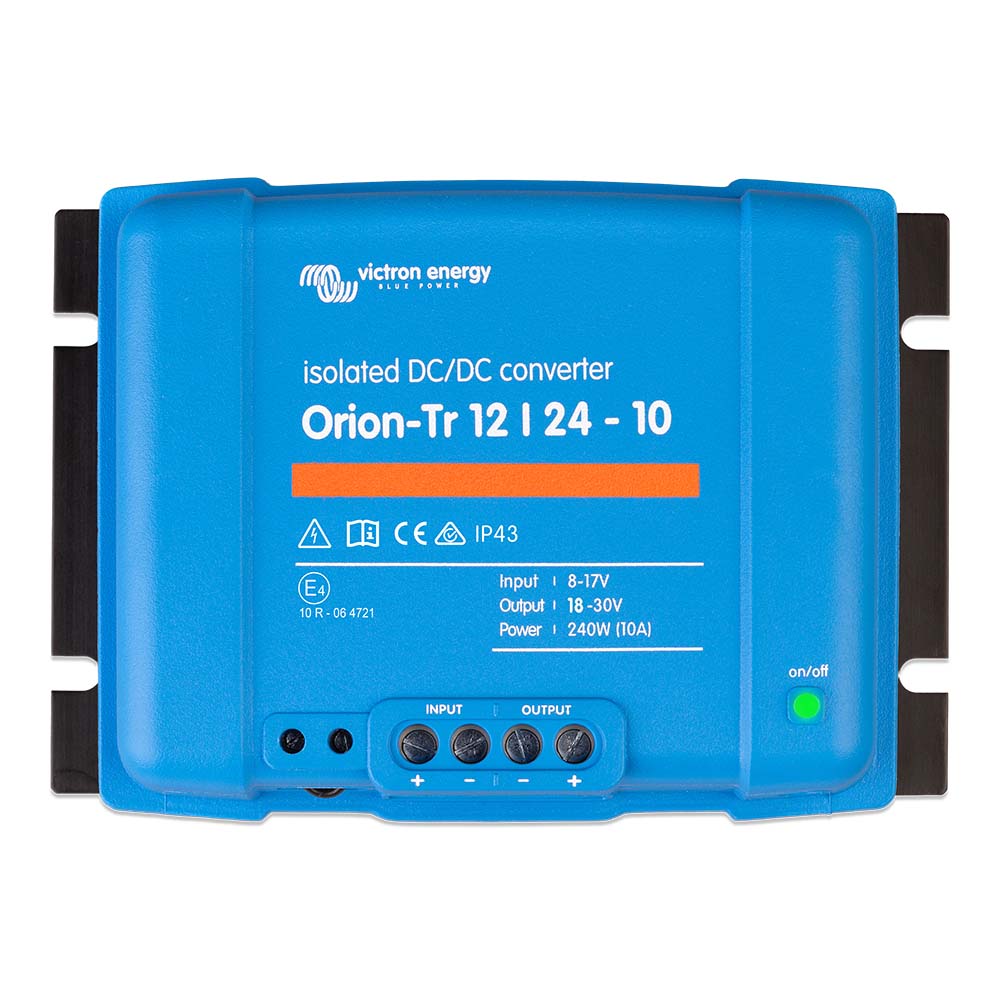

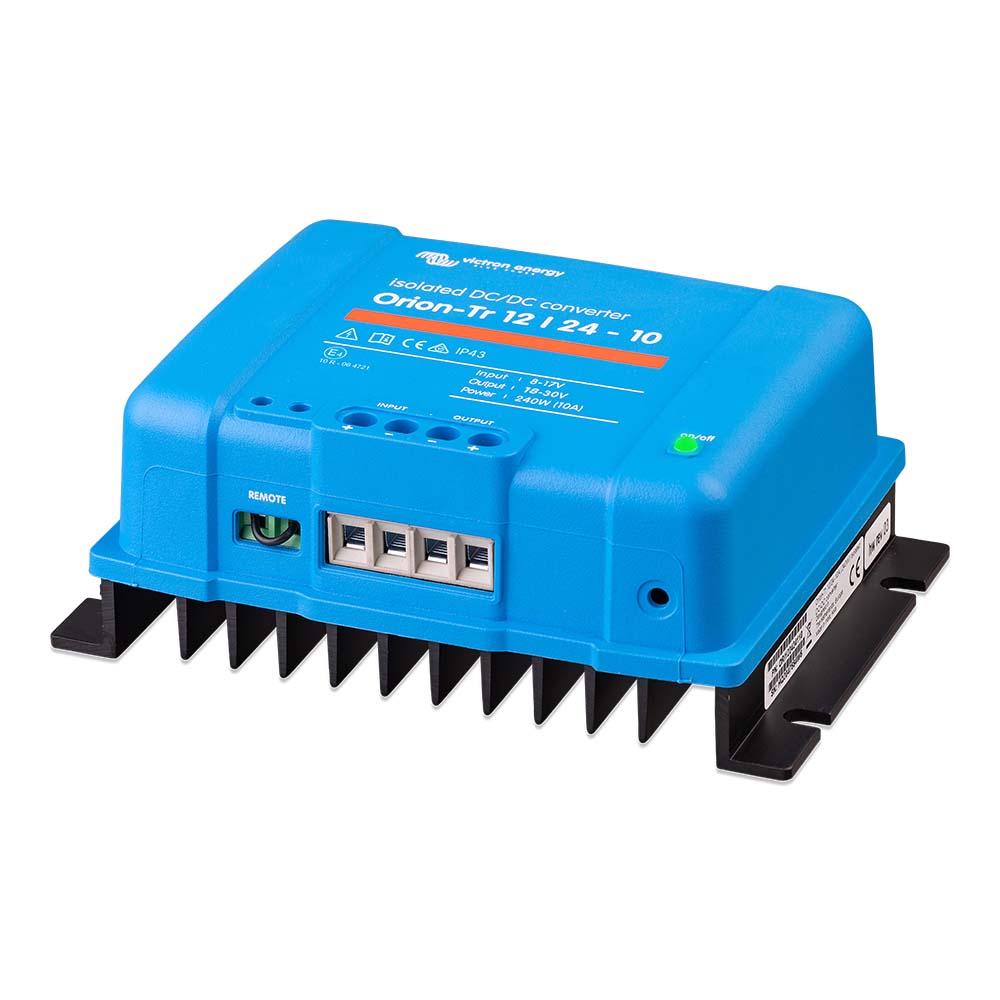

Victron Orion-TR DC-DC Converter - 12 VDC TO 24 VDC - 10A Isolated
Victron Orion-TR DC-DC Converter - 12 VDC TO 24 VDC - 10A Isolated is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Orion-TR 12/24-10A (240W) Isolated DC-DC Converter is an essential power management solution for marine and boating applications. Engineered for reliability in harsh marine environments, it ensures stable and efficient power conversion to meet your vessel’s electrical needs.
Key Features
- Isolated Model – Features separate positive and negative leads for input and output, ensuring electrical isolation and enhanced safety.
- Remote On/Off Terminal – Simplify your wiring by controlling the converter with a low-power switch, such as your boat’s engine run/stop switch.
- Short Circuit Proof & Parallel Operation – All models are protected against short circuits and can be paralleled to increase output current, providing flexibility for various power requirements.
- High Temperature Protection – Automatically reduces output current in high ambient temperatures to prevent overheating, ensuring longevity and reliability.
- IP43 Protection – Rated for protection against solid objects and water spray when installed with screw terminals oriented downward, ideal for marine environments.
- Easy Installation with Screw Terminals – No special tools required, making installation straightforward and efficient.
- Non-Replaceable Input Fuse – Equipped with an input fuse on 12V and 24V models for added safety.
- Adjustable Output Voltage – Customize the output voltage between 10V and 15V to suit your specific marine electrical systems. Note: Not intended for battery charging; consider the Orion-TR Smart for battery charging needs.
Specifications
| Parameter | Details |
|---|---|
| Input Voltage Range | 8-17 V |
| Under Voltage Shut Down | 7 V |
| Under Voltage Restart | 7.5 V |
| Nominal Output Voltage | 12.2 V |
| Output Voltage Adjustable Range | 10-15 V |
| Output Voltage Tolerance | ±0.2 V |
| Output Noise | 2 mV rms |
| Continuous Output Current at Nominal Voltage (40°C) | 10 A |
| Maximum Output Current (10 S) at Nominal Voltage | 15 A |
| Short Circuit Output Current | 25 A |
| Continuous Output Power at 25°C | 280 W |
| Continuous Output Power at 40°C | 240 W |
| Efficiency | 88% |
| No Load Input Current | < 100 mA |
| Current Consumption When Disabled | < 200 µA via remote port |
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55°C (derate 3% per °C above 40°C) |
| Humidity | Max. 95% non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Weight | 1.3 kg (3 lb) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in) |
| Safety Standards | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity Standards | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Why Choose the Orion-TR 12/24-10A for Your Boat?
The Orion-TR 12/24-10A Isolated DC-DC Converter is designed to meet the rigorous demands of marine electrical systems. Its robust construction and comprehensive protection features ensure reliable performance in the challenging conditions often encountered at sea. Whether you’re powering navigation equipment, lighting, or other onboard electronics, this converter provides the stable and efficient power you need.
