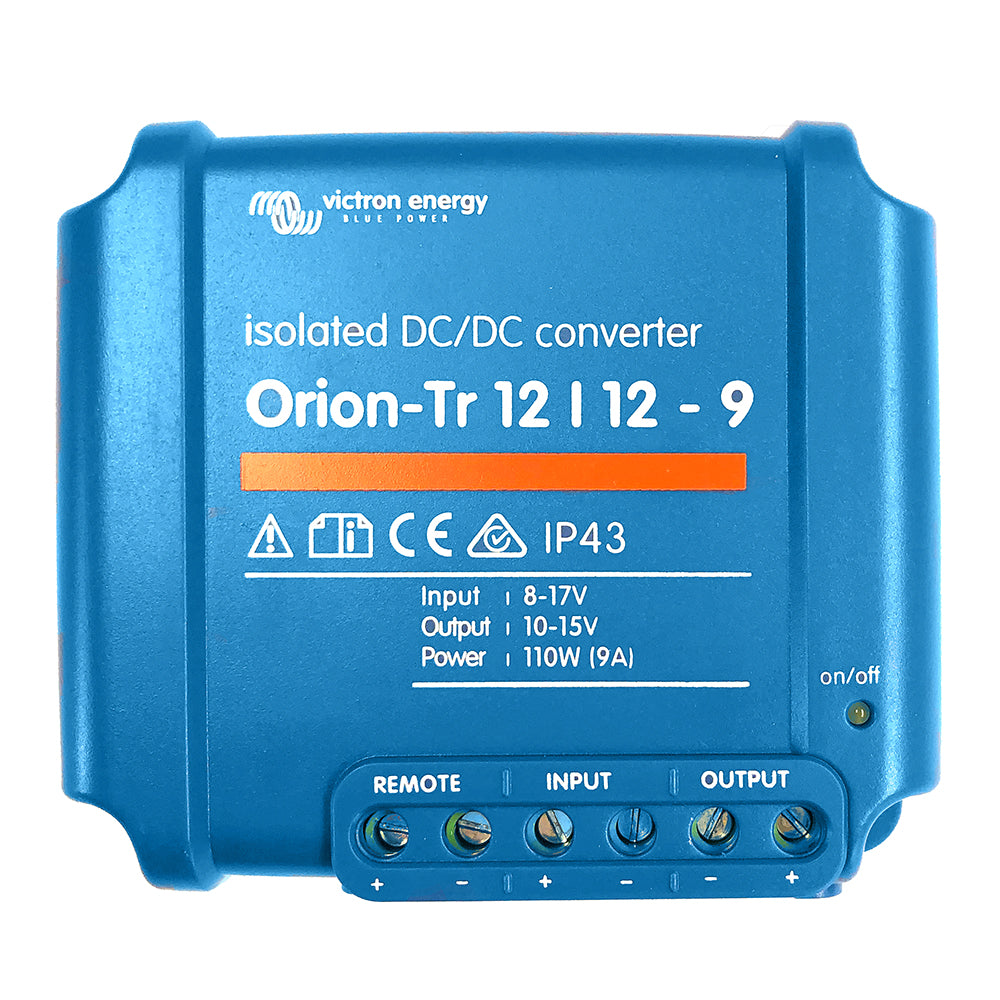

Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 9AMP Isolated

The Orion-TR 12/12-9A (110W) Isolated DC-DC Converter is an essential component for marine and boating electrical systems. Designed to provide reliable power conversion, it ensures your onboard electronics operate smoothly and efficiently, even in demanding environments.

Key Features

Remote On/Off Control

Eliminate the need for a high current switch in your input wiring with the remote on/off terminal. Easily control the converter using a low power switch or integrate it with your engine run/stop switch for seamless operation.

Expandable and Short Circuit Proof

The Orion-TR series is short circuit proof and allows for unlimited parallel connections to increase output current. This flexibility ensures you can scale your power system as your needs grow.

High Temperature Protection

Designed to operate in high ambient temperatures, the converter automatically reduces the output current to protect the system, ensuring longevity and reliability.

IP43 Protection

With an IP43 rating, the Orion-TR is safeguarded against dust ingress and water spray when installed with the screw terminals facing downward, making it ideal for marine environments.

Easy Installation with Screw Terminals

Installation is straightforward with screw terminals that require no special tools. This user-friendly design simplifies setup and maintenance on your vessel.

Built-In Safety Features

• Input Fuse: Integrated on 12 V and 24 V models for added protection (non-replaceable).
• Galvanic Isolation: 200 VDC isolation between input, output, and case ensures safe operation.

Adjustable Output Voltage

Customize the output voltage between 10-15 V to match your specific needs. Please note, this converter is not intended for battery charging. For battery charging applications, consider using an Orion-Tr Smart converter.

Technical Specifications

Specification	Details
Input Voltage Range	8-17 V
Under Voltage Shut Down	7 V
Under Voltage Restart	7.5 V
Nominal Output Voltage	12.2 V
Output Voltage Adjust Range	10-15 V
Output Voltage Tolerance	±0.2 V
Output Noise	2 mV rms
Continuous Output Current at 12.2 V & 40°C	9 A
Maximum Output Current (10 S)	12.5 A
Short Circuit Output Current	32 A
Continuous Output Power	110 W @ 25°C, 85 W @ 40°C
Efficiency	87%
No Load Input Current	< 50 mA
Current Consumption (Remote Disabled)	< 200 µA
Galvanic Isolation	200 VDC
Operating Temperature Range	-20 to +55°C (derate 3% per °C above 40°C)
Humidity	Max. 95% non-condensing
DC Connection	Screw terminals
Maximum Cable Cross-Section	6 mm² AWG10
Weight	0.42 kg (1 lb)
Dimensions (H x W x D)	100 x 113 x 47 mm (4.0 x 4.5 x 1.9 in)
Safety Standards	EN 60950
Immunity Standards	EN 61000-6-3, EN 61000-6-1, EN 55014-2
Automotive Directive Standards	ECE R10-5

Safety and Compliance

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

Specification	Detail
Charger Input - Voltage	12 V
Charger Output - Amps	9 A
Charger Output Voltage	12 V
Box Dimensions	3"H x 6"W x 9"L
Weight	1.05 lbs
UPC	8719076016878

Helpful Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
