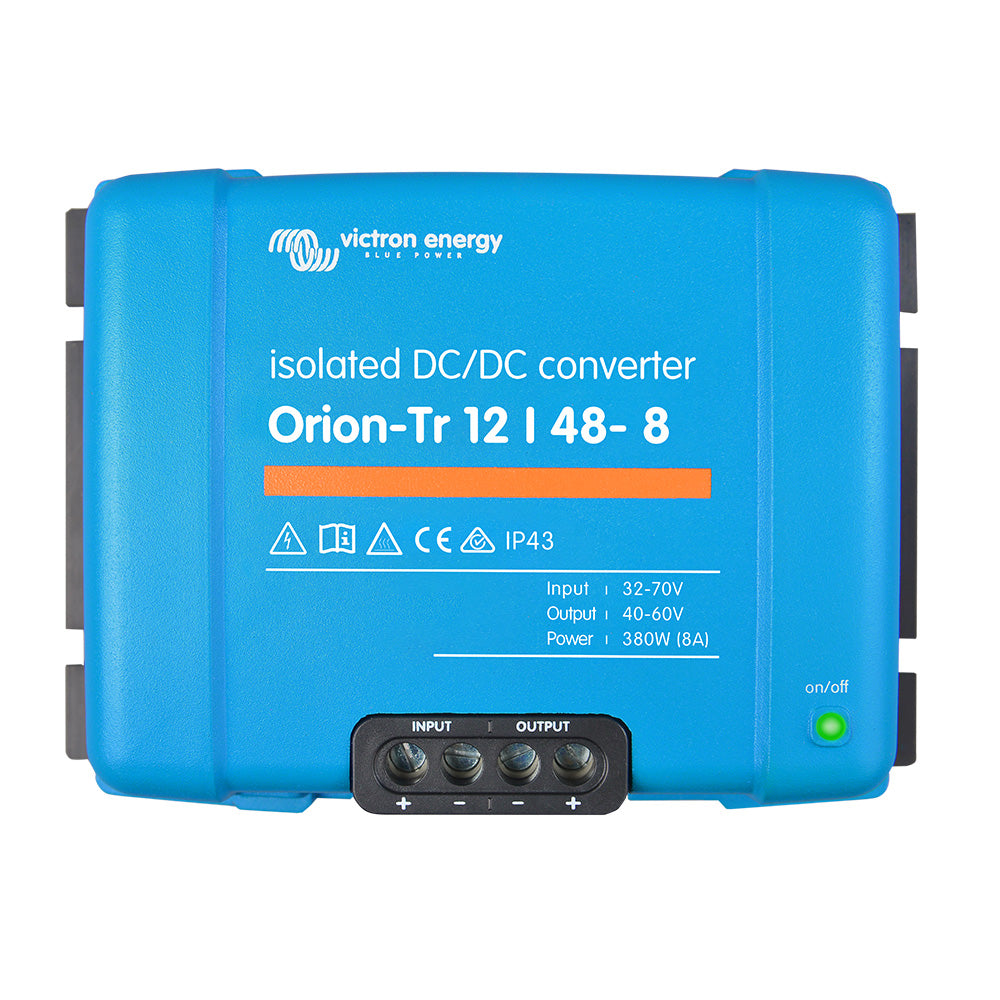

Victron Orion-TR 12/48-8A (380W) Isolated DC-DC Converter

The Orion-TR 12/48-8A (380W) Isolated DC-DC Converter is a reliable and efficient power solution designed specifically for marine and boating applications. Engineered to provide stable voltage and protect your boat’s electrical systems, this converter ensures optimal performance whether you're cruising the open seas or navigating coastal waters.

Key Features

Remote On/Off Terminal

Eliminate the need for a high-current switch in your boat’s input wiring. The remote on/off terminal allows operation with a low-power switch, such as the engine run/stop switch, enhancing convenience and safety onboard.

Short Circuit Proof and Paralleling Capability

All models are designed to be short circuit proof and can be paralleled to increase output current. This flexibility allows you to connect an unlimited number of units, ensuring scalable power solutions for larger marine electrical systems.

High Temperature Protection

Operating in marine environments can subject electronics to varying temperatures. The Orion-TR reduces output current at high ambient temperatures, safeguarding the converter and connected devices from overheating.

IP43 Protection Rating

With an IP43 rating, this converter is protected against solid objects larger than 1mm and water spray from any direction when installed with the screw terminals oriented downward, making it suitable for the humid and wet conditions typical on boats.

Easy Installation with Screw Terminals

No special tools are required for installation. The screw terminals provide a secure and straightforward connection method, ideal for the dynamic environment of marine applications.

Built-in Input Fuse

Models with 12V and 24V inputs include a non-replaceable input fuse, adding an extra layer of protection to your boat’s electrical system.

Adjustable Output Voltage

Customize the output voltage between 40V and 60V to meet your specific marine electrical requirements. Please note, it is not intended for battery charging—consider using an Orion-Tr Smart model for that purpose.

Technical Specifications

Parameter	Specification
Input Voltage Range	10-17 V
Under Voltage Shut Down	7 V
Under Voltage Restart	7.5 V
Nominal Output Voltage	48.2 V
Output Voltage Adjust Range	40-60 V
Output Voltage Tolerance	±0.2 V
Output Noise	2 mV rms
Continuous Output Current at Nominal Voltage (40°C)	8 A
Maximum Output Current (10 seconds) at Nominal Voltage -20%	15 A
Short Circuit Output Current	25 A
Continuous Output Power (25°C)	430 W
Continuous Output Power (40°C)	380 W
Efficiency	89%
No Load Input Current	< 220 mA
Current Consumption (Remote Disabled)	< 200 µA
Galvanic Isolation	200 VDC between input, output, and case
Operating Temperature Range	-20°C to +55°C (derate 3% per °C above 40°C)
Humidity	Max. 95% non-condensing
DC Connection	Screw terminals
Maximum Cable Cross-Section	16 mm² AWG6
Weight	1.8 kg (4 lb)
Dimensions (H x W x D)	130 x 186 x 80 mm (5.1 x 7.3 x 3.2 in)
Safety Standards	EN 60950
Immunity Standards	EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive Standards	ECE R10-5

Additional Specifications

• Charger Input Voltage: 12V
• Charger Output Amperage: 8A
• Charger Output Voltage: 48V
• Box Dimensions: 4" H x 6" W x 9" L
• Weight: 3.5 lbs
• UPC: 8719076063650

Why Choose Orion-TR for Your Marine Needs?

The Orion-TR 12/48-8A converter is built to withstand the harsh conditions of marine environments. Its robust design ensures consistent power delivery, while features like remote control operation and high-temperature protection provide added reliability and safety for your boat’s electrical systems. Whether you're outfitting a small yacht or a large marine vessel, the Orion-TR offers the performance and flexibility you need.

Installation Tips

For optimal performance, install the converter with the screw terminals facing downward to maintain the IP43 protection rating. Ensure proper ventilation to manage heat dissipation, especially in confined engine compartments. Always follow marine electrical standards and consult with a professional installer if needed to ensure a safe and efficient setup.

Support and Warranty

Please contact your dealer for any returns, repairs, or support issues related to this product. Our dedicated support team is here to help you ensure your marine electrical systems are running smoothly.

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
