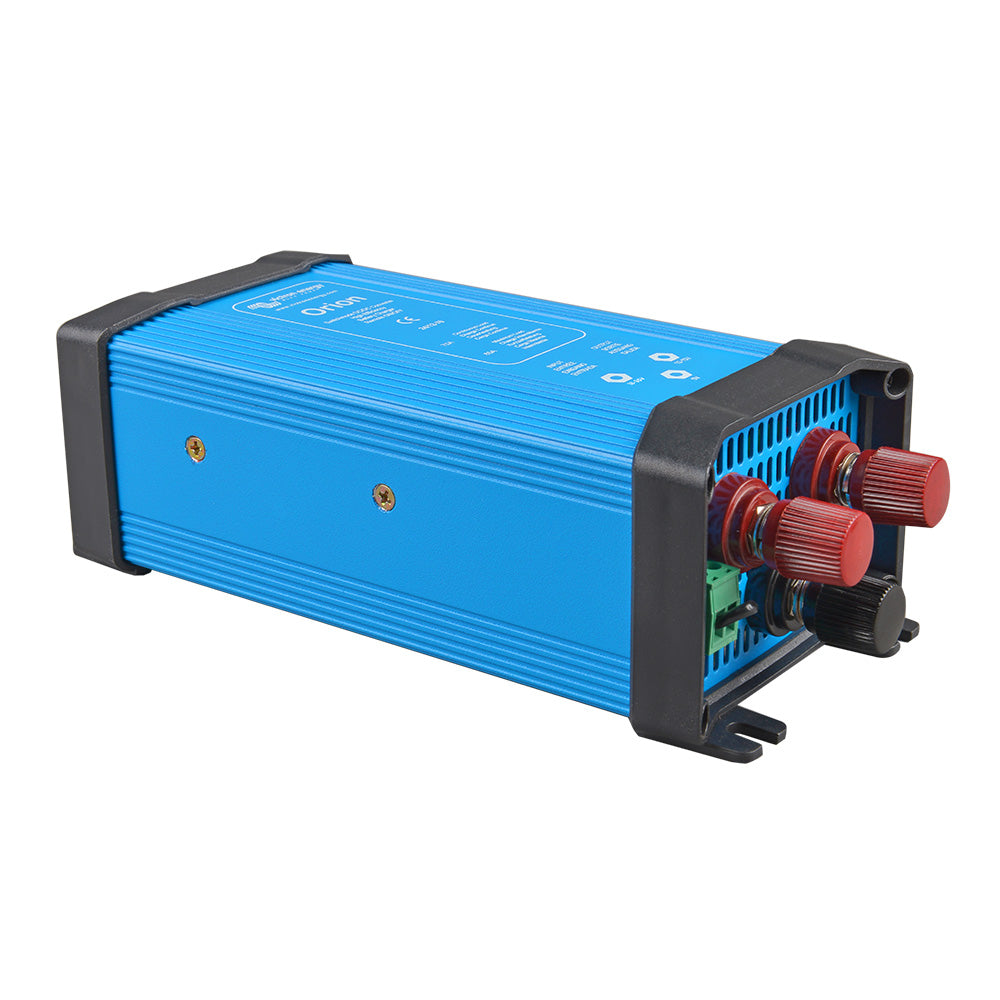

Victron Orion 24/12-70A DC-DC Converter w/Binding Posts - IP20

The Orion 24/12-70A DC-DC Converter is a reliable and efficient power solution designed specifically for marine and boating applications. Engineered to seamlessly integrate into your vessel's electrical system, this converter ensures stable voltage regulation, allowing you to power your accessories and charge batteries with ease.

Key Features

Remote On-Off Connector

The remote on-off feature eliminates the need for a high-current switch in the input wiring. It can be operated using a low-power switch or synchronized with your vessel's engine run/stop switch for added convenience (refer to the manual for detailed instructions).

Adjustable Output for Versatile Use

All models with adjustable output can double as a battery charger, making it perfect for charging a 12-volt starter or accessory battery within an otherwise 24-volt system.

Scalable Performance

Multiple units can be connected in parallel to increase the total output current. Up to five converters can work together, providing enhanced power capacity for larger systems.

Easy Installation

Installation is straightforward with the delivery including four insulated Fastons Female Crimp 6.3mm connectors, ensuring secure and efficient wiring connections.

Specifications

Feature	Details
Input Voltage Range (V)	18-35
Under Voltage Shutdown (V)	14
Under Voltage Restart (V)	18
Output Voltage Adjustable with Potentiometer	Yes
Output Voltage (V)	Adjustable, 10–15V, Factory Set at 13.2V
Efficiency (%)	92%
Suitable to Buffer-Charge a Battery	Yes
Can Be Connected in Parallel	Yes
Continuous Output Current (A)	70
Max. Output Current (A)	85
Fan-Assisted Cooling (Temp. Controlled)	Yes
Galvanic Isolation	No
Off Load Current	< 20mA
Remote On-Off	Yes
Operating Temperature Range	-20 to +55°C (Derate 3% Per °C above 40°C)
DC Connection	M6 bolts
Weight	0.9 kg / 2.0 lbs
Dimensions (H x W x D)	65 x 88 x 195 mm / 2.6” x 3.5” x 7.7”
Safety Standards	EN 60950
Emission Standards	EN 61000-6-3, EN 55014-1
Immunity Standards	EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive Standards	ECE R10-4

Why Choose the Orion DC-DC Converter?

• Reliable Performance: High efficiency at 92% ensures minimal energy loss and optimal performance for your marine electrical systems.
• Versatile Application: Perfect for both power regulation and battery charging, adaptable to various boating setups.
• Expandable Capacity: Scale your power needs by paralleling multiple units, providing flexibility for different vessel sizes and power demands.
• Durable Design: Built to withstand the harsh marine environment with a wide operating temperature range and robust construction.
• Easy Integration: Simple installation process with included connectors and comprehensive support documentation.

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

Download the Quick Guide (PDF)
