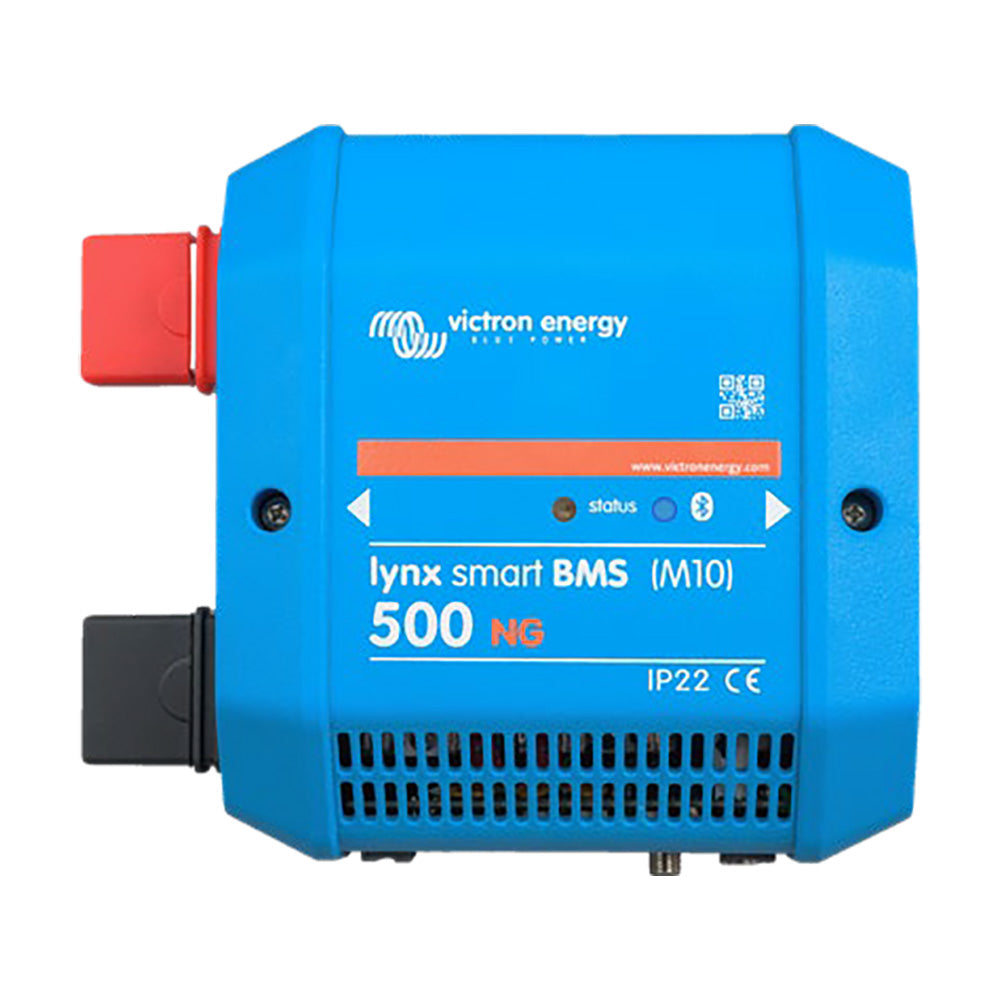

Victron Lynx Smart BMS 500 NG (M10)

The Lynx Smart BMS 500 NG (M10) is a cutting-edge Battery Management System tailored for marine and boating applications. Designed to seamlessly integrate with Victron Lithium NG batteries, this BMS ensures optimal performance, safety, and reliability for your onboard energy systems.

Key Features

Built-in 500 A or 1000 A Contactor

• Available in 500 A (M10) and 1000 A (M10) versions
• Provides a secondary safety layer to protect batteries if primary controls (ATC, ATD, DVCC) fail
• Functions as a remote controllable main system switch

Pre-Charge Circuit

• Mitigates high inrush currents when connecting capacitive loads like inverters
• Eliminates the necessity for external pre-charging devices

Monitoring & Control

• Bluetooth connectivity for real-time monitoring and control via the VictronConnect App
• VE.Can compatibility allows integration with GX devices such as Cerbo GX or Ekrano GX and access through the VRM portal
• Displays cell voltages and temperatures on GX devices and the VRM portal
• Built-in battery monitor offers data on state of charge, voltage, current, historical trends, and status information
• Instant Readout provides diagnostics at a glance

DVCC Closed Loop Control and ATC/ATD Contacts

• Automatically manages Victron inverter/chargers, Orion XS 12/12-50A DC-DC battery chargers, and solar charge controllers via connected GX devices and DVCC
• Utilizes ATC/ATD contacts to control other chargers and loads with remote on/off capabilities

Programmable Relay

• Can function as an alarm relay in conjunction with the pre-alarm or to control an alternator via its external regulator (ignition cable)
• Features Alternator ATC mode for safe alternator disconnection prior to battery disconnects

AUX Terminal

• Includes an onboard auxiliary power supply (1.1 A @ system voltage) to power specific loads (e.g., GX devices) after BMS shutdown
• Automatically shuts down BMS and AUX connection if no charge voltage is detected within 5 minutes following a low voltage event

VE.Can and NMEA 2000 Data Communication

• Facilitates easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable
• Enables integration into marine networks through the NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable)

Lynx Distributor Fuse Monitoring

• Monitors the fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices
• Alerts you with alarms in the event of blown fuses

¹Up to 5 BMS units can be paralleled, subject to a firmware update expected in Q3 2024.

Specifications

Power

Parameter	Details
Battery Voltage Range	9 – 60 VDC
Maximum Input Voltage	75 VDC
Supported System Voltages	12, 24, or 48V
Reverse Polarity Protection	No
Main Safety Contactor Continuous Current Rating	500 A continuous
Main Safety Contactor Peak Current Rating	600 A for 5 minutes
Power Consumption OFF Mode	0.3 mA for all system voltages
Power Consumption in Standby Mode	Approximately 0.6 W (50 mA at 12 V)
Power Consumption in ON Mode	Approx. 2.6 W (217 mA at 12 V) depending on relay state
Minimum Load Resistance for Pre-Charging	10 Ω and above for 12 V systems, 20 Ω and above for 24 V and 48 V systems
AUX Output Maximum Current Rating	1.1 A continuous, protected by resettable fuse
Allow-to-Charge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Allow-to-Discharge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Alarm Relay (SPDT) Maximum Current Rating	2 A at 60 VDC

Connections

• Busbar: M10 (Torque: 33 Nm) – compatible with all M10 Lynx products
• VE.Can: RJ45
• I/O: Removable multi-connector with screw terminals
• Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring (supports up to 50 batteries per system)
• Lynx Distributor Fuse Monitoring (up to 4 modules): RJ10 (cable included with each Lynx Distributor)

Physical

• Enclosure Material: ABS plastic
• Enclosure Dimensions: 190 x 180 x 80 mm
• Unit Weight: 1.9 kg
• Busbar Material: Tinned copper
• Busbar Dimensions: 8 x 30 mm

Environmental

• Operating Temperature Range: -40 °C to +60 °C
• Storage Temperature Range: -40 °C to +60 °C
• Humidity: Maximum 95% (non-condensing)
• Protection Class: IP22

Standards

• Safety: EN-IEC 63000:2018
• EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
• Quality Management: NEN-EN-ISO 9001:2015

Why Choose Lynx Smart BMS 500 NG (M10) for Your Marine Setup?

The Lynx Smart BMS 500 NG offers unparalleled control and monitoring capabilities essential for marine and boating energy systems. Whether you're powering navigation equipment, lighting, or other critical onboard systems, this BMS ensures your Victron Lithium NG batteries operate safely and efficiently. Its seamless integration with other Lynx Distributor components and Victron GX devices makes it an ideal choice for boat owners seeking a robust and scalable energy management solution.
