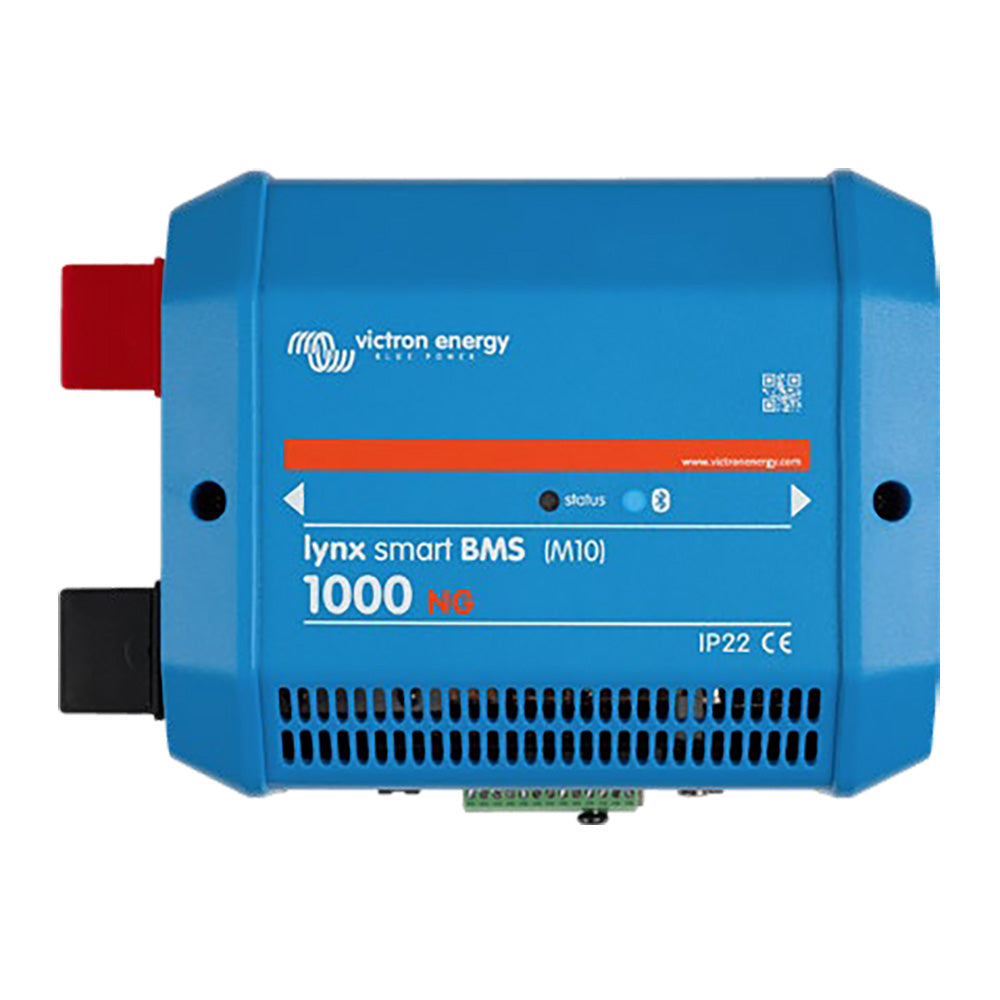

Victron Lynx Smart BMS 1000 NG (M10) MGMT System

The Lynx Smart BMS 1000 NG (M10) Management System is the ultimate Battery Management System tailored for marine enthusiasts using Victron Lithium NG batteries. Engineered with advanced features and seamless integration capabilities, it ensures your boat's power system operates reliably and efficiently, providing peace of mind on every voyage.

Why Choose Lynx Smart BMS NG?

Designed specifically for Victron’s Lithium Iron Phosphate (LiFePO4) batteries, the Lynx Smart BMS NG offers unparalleled performance and safety for marine and boating applications. Whether you're cruising the open seas or navigating calm waters, this BMS ensures optimal battery management, extending the lifespan of your battery bank and enhancing your onboard power system.

Key Features

Integrated Contactor

• Built-in 500 A or 1000 A Contactor: Available in both 500 A (M10) and 1000 A (M10) versions.
• Acts as a secondary safety mechanism, protecting the battery if primary controls fail.
• Serves as a remote controllable main system switch for enhanced convenience.

Pre-Charge Circuit

• Prevents high inrush currents when connecting capacitive loads such as inverters.
• Eliminates the need for external pre-charging devices, simplifying your setup.

Advanced Monitoring & Control

• Bluetooth connectivity for easy monitoring and control via the VictronConnect App.
• VE.Can compatibility with GX devices like Cerbo GX or Ekrano GX for comprehensive system management through the VRM portal.
• Real-time readout of cell voltages, temperatures, state of charge, voltage, current, and historical data.
• Instant Readout feature for at-a-glance diagnostics.

Dynamic Voltage Control

• Supports DVCC Closed Loop Control and ATC/ATD Contacts for automatic management of Victron inverter/chargers, Orion DC-DC chargers, and solar charge controllers.
• Allows control of additional chargers and loads with remote on/off capabilities.

Programmable Relay

• Functions as an alarm relay or to control alternators via external regulators.
• Includes Alternator ATC mode for safe disconnection before battery shutdown.

AUX Terminal

• Provides an onboard auxiliary power supply (1.1 A @ system voltage) for powering critical loads post-BMS shutdown.
• Automatically shuts down BMS and AUX connection if no charge voltage is detected within 5 minutes after a low voltage event.

Data Communication

• Supports VE.Can and NMEA 2000 for seamless integration into marine networks.
• Easy connection with GX devices using a standard RJ45 network cable.
• Requires a VE.Can to NMEA 2000 micro-C male cable for NMEA 2000 integration.

Lynx Distributor Fuse Monitoring

• Monitors the fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices.
• Alerts you with alarms in case of blown fuses, ensuring system reliability.

Specifications

Power
Battery Voltage Range	9 – 60 VDC
Maximum Input Voltage	75 VDC
Supported System Voltages	12, 24, or 48 V
Reverse Polarity Protection	No
Main Safety Contactor Continuous Current Rating	1000 A continuous
Main Safety Contactor Peak Current Rating	1200 A for 5 minutes
Power Consumption (OFF Mode)	0.3 mA for all system voltages
Power Consumption (Standby Mode)	~0.6 W (50 mA at 12 V)
Power Consumption (ON Mode)	~4.2 W (350 mA at 12 V)
Minimum Load Resistance for Pre-Charging	10 Ω (12 V systems), 20 Ω (24 V and 48 V systems)
AUX Output Maximum Current Rating	1.1 A continuous, protected by resettable fuse
Allow-to-Charge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Allow-to-Discharge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Alarm Relay (SPDT) Maximum Current Rating	2 A at 60 VDC

Connections
Busbar	M10 (Torque: 33 Nm) – compatible with all M10 Lynx products
VE.Can	RJ45
I/O	Removable multi-connector with screw terminals
Battery BTV Cables	Male and female circular 3-pole connector with M8 screw ring (supports up to 50 batteries)
Lynx Distributor Fuse Monitoring	RJ10 (cable included with each Lynx Distributor)

Physical
Enclosure Material	ABS
Dimensions (H x W x D)	230 x 180 x 100 mm
Unit Weight	2.7 kg
Busbar Material	Tinned copper
Busbar Dimensions (H x W)	8 x 30 mm

Environmental
Operating Temperature Range	-40 °C to +60 °C
Storage Temperature Range	-40 °C to +60 °C
Humidity	Max. 95% (non-condensing)
Protection Class	IP22

Standards
Safety	EN-IEC 63000:2018
EMC	EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS	NEN-EN-ISO 9001:2015

Expandable and Future-Proof

Currently available in 500 A and 1000 A versions, up to 5 BMS units can be paralleled to accommodate growing energy needs. A firmware update, expected in Q3 2024, will enable this expansion, making the Lynx Smart BMS NG a scalable solution for your marine power system.

Seamless Integration

The Lynx Smart BMS NG integrates effortlessly with other Lynx Distributor system products, ensuring a harmonious and efficient marine power setup. Connect and communicate with GX devices or integrate into NMEA 2000 networks for comprehensive system management and monitoring.

Support and Documentation

Please contact your dealer for any returns, repairs, or support issues related to this product.

Quick Guide (PDF)
Owner's Manual (PDF)
