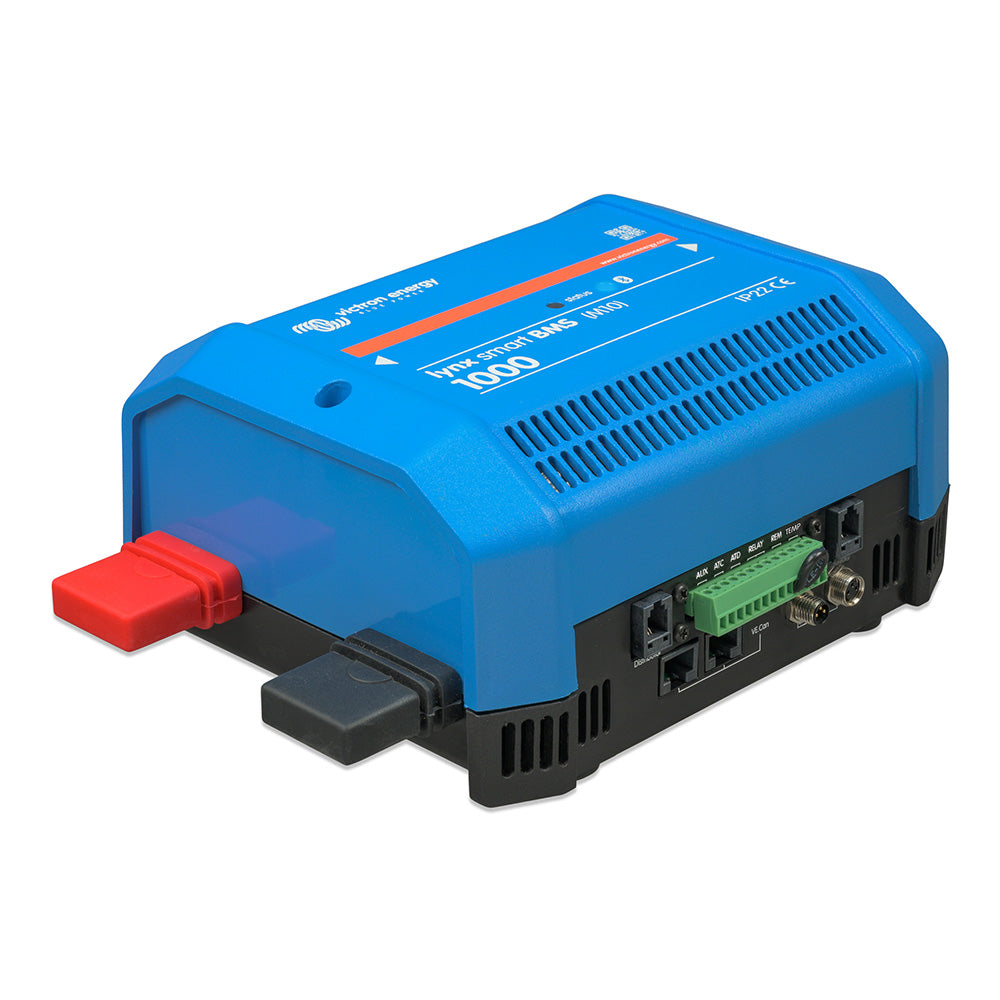

Victron Lynx Smart BMS 1000 Battery Management System f/Lithium Smart Batteries

Enhance the performance and safety of your marine electrical system with the Lynx Smart BMS 1000 Battery Management System, specifically designed for Victron Lithium Smart batteries. Ideal for boating enthusiasts, this advanced BMS ensures optimal battery management, seamless integration, and reliable protection for your vessel's power needs.

Advanced Battery Management for Marine Applications

The Lynx Smart BMS is engineered to manage Victron Lithium Iron Phosphate (LiFePO4) Smart batteries, available in 12.8 V or 25.6 V configurations and various capacities. Whether you need a 12V, 24V, or 48V system, the Lynx Smart BMS supports series, parallel, and series/parallel connections, allowing you to build a robust battery bank tailored to your marine setup. Capable of handling up to 20 batteries, it provides substantial energy storage—up to 84 kWh for a 12V system and up to 102 kWh for 24V and 48V systems.

Key Features

Built-in 1000 A Contactor

The integrated contactor serves as a secondary safety mechanism, protecting your batteries by disconnecting loads and chargers if primary controls fail. It also functions as a remotely controllable main system switch, enhancing overall system reliability.

Pre-charge Circuit

Prevent high inrush currents with the built-in pre-charge circuit, ideal for connecting capacitive loads like MultiPlus/Quattro inverters. This feature eliminates the need for external pre-charging equipment, simplifying your marine electrical setup.

Comprehensive Monitoring and Control

Stay informed and in control with Bluetooth connectivity via the VictronConnect App or a GX device such as the Cerbo GX. Access real-time data on state of charge, voltage, current, and more through the VRM Portal. The built-in battery monitor offers instant diagnostics, even without a direct connection to the BMS.

DVCC Closed Loop Control and ATC/ATD Contacts

Automatically manage Victron inverters/chargers and solar chargers through connected GX devices and DVCC. Utilize the ATC/ATD contacts to control additional chargers and remote on/off loads, ensuring efficient power distribution on your vessel.

Programmable Relay

Customize your system with the programmable relay, useful for alarm functions or controlling alternators via external regulators. In Alternator ATC mode, the relay ensures the alternator is shut off before disconnecting the battery, enhancing system safety.

AUX Terminal

The onboard auxiliary power supply provides 1.1 A @ system voltage to essential loads like GX devices. In the event of a low cell voltage, the BMS will shut down non-essential loads, maintaining critical system functions until charging resumes.

VE.Can and NMEA 2000 Data Communication

Integrate seamlessly with marine networks using VE.Can, which supports standard RJ45 cabling and NMEA 2000 protocols. Easily connect to marine multifunction displays (MFDs) for comprehensive system monitoring.

Lynx Distributor Fuse Monitoring

Monitor the status of up to four Lynx Distributor fuses and receive alerts if a fuse blows. This feature ensures ongoing protection and reliability for your marine electrical system.

System Components

• Lynx Distributor with 2 fused paralleled Victron Lithium Smart batteries.
• Lynx Smart BMS featuring the BMS unit, contactor, and battery monitor.
• Additional Lynx Distributor for inverter/charger connections, with expandable modules for more connections.
• Cerbo GX or compatible GX device for data monitoring and system management.

Power Specifications

Specification	Details
Battery Voltage Range	9 – 60 VDC
Maximum Input Voltage	75 VDC
Supported System Voltages	12, 24, or 48 V
Reverse Polarity Protection	No
Main Safety Contactor Continuous Current Rating	1000 A continuous
Main Safety Contactor Peak Current Rating	1200 A for 5 minutes
Power Consumption OFF Mode	0.3 mA for all system voltages
Power Consumption in Standby Mode	~0.6 W (50 mA at 12 V)
Power Consumption in ON Mode	~2.6 W (217 mA at 12 V) depending on relay state
Minimum Load Resistance for Pre-Charging	10 Ω (12 V systems), 20 Ω (24 V & 48 V systems)
AUX Output Maximum Current Rating	1.1 A continuous, protected by resettable fuse
Allow-to-Charge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Allow-to-Discharge Port Maximum Current Rating	0.5 A at 60 VDC, protected by resettable fuse
Alarm Relay (SPDT) Maximum Current Rating	2 A at 60 VDC

Connections

• Busbar: M10 (Torque: 17 Nm)
• VE.Can: RJ45
• I/O: Removable multi-connector with screw terminals
• Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring
• Supports up to 20 batteries per system
• Lynx Distributor fuse monitoring (up to 4 modules) via RJ10 (cable included with each Lynx Distributor)

Physical Specifications

• Enclosure Material: ABS
• Dimensions (H x W x D): 230 x 180 x 100 mm
• Unit Weight: 2.7 kg
• Busbar Material: Tinned copper
• Busbar Dimensions (H x W): 8 x 30 mm

Environmental Specifications

• Operating Temperature: -40 °C to +60 °C
• Storage Temperature: -40 °C to +60 °C
• Maximum Humidity: 95% (non-condensing)
• Protection Class: IP22

Compliance and Standards

• Safety: EN-IEC 63000:2018
• EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012
• Quality Management: NEN-EN-ISO 9001:2015

Included in the Package

• Lynx Distributor with 2 fused paralleled Victron Lithium Smart batteries
• Lynx Smart BMS with contactor and battery monitor
• Additional Lynx Distributor for inverter/charger and load connections
• Cerbo GX or compatible GX device for system data monitoring

For returns, repairs, or support issues related to this product, please contact your dealer.

Quick Guide (pdf)
Owner's Manual (pdf)
