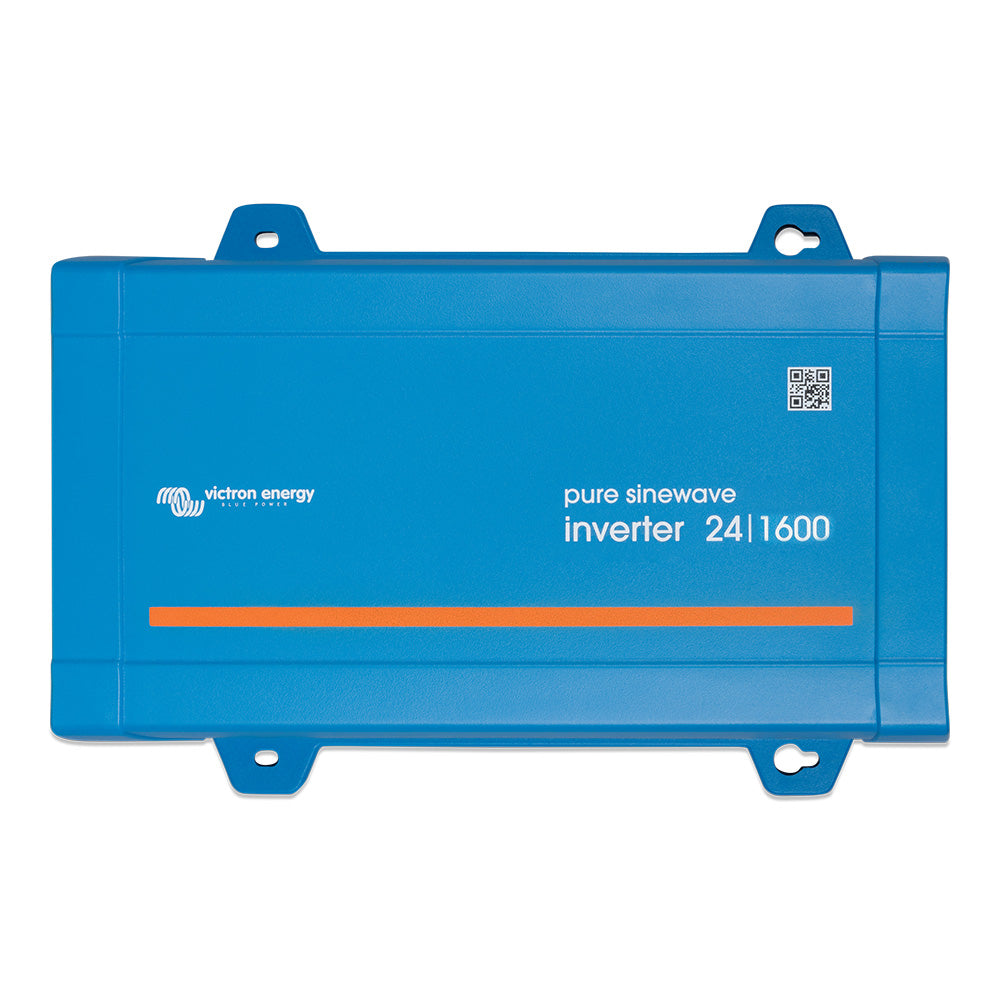

Victron Inverter 24/1600 120v VE.Direct Nema GFCI (UL 458)

Inverter 24/1600 120v VE.Direct Nema GFCI (UL 458)

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut -off and restart levels
• Dynamic cut -off: load-dependent cut-off level
• Output voltage 2 10 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

In- and output voltage, % load and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against o verheating, whether due to over load or high ambient temperature.

High start-up power

Needed to start loads such as power co nverters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode , the inverter will switch to stan dby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds) . If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connecto r, or between battery plus and the left-hand contact of the two-pole connector.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters , we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals

No special tools needed for installation

Output Sockets

GFCI

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications:

• AC Connection Type: Outlet
• DC Connection Type: Hardwire
• GFCI: Optional
• Inverter Cont. Output Wattage: 1500w
• Inverter Input Voltage: 120VAC
• Inverter Output Voltage: 24VDC
• Inverter Surge Rating: 2100W
• Outlet Qty: 1 NEMA 5-15R
• Box Dimensions: 8"H x 12"W x 18"L WT: 19 lbs
• UPC: 8719076071952

Owner's Manual (pdf)
Brochure (pdf)
