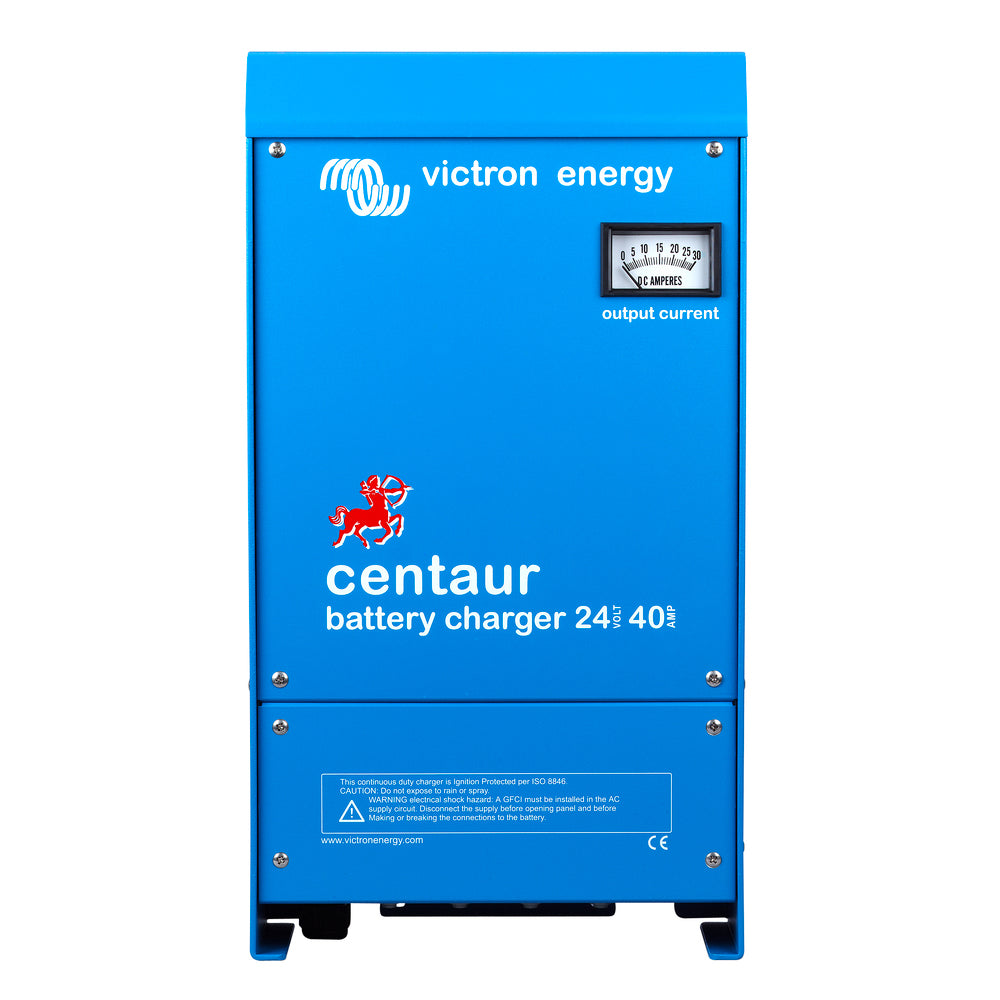

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

The Centaur Charger is a robust and reliable power solution designed specifically for marine and boating applications. With its durable construction and versatile input options, it ensures your vessel's battery banks are efficiently charged and maintained, even in the harshest marine environments.

Key Features

• Exceptional Durability: Built with aluminum epoxy powder-coated cases featuring a drip shield and stainless steel fixings, the Centaur Charger withstands extreme conditions such as heat, humidity, and salt air. Circuit boards are safeguarded with an acrylic coating for enhanced corrosion resistance. Integrated temperature sensors monitor power components, automatically reducing output current to prevent overheating during adverse environmental conditions.
• Versatile Power Input: Supports a universal input voltage range of 90-265V AC and is also compatible with DC power supplies, enabling seamless AC-DC and DC-DC operation. Additionally, it can operate with a DC supply ranging from 90-400V, providing flexibility for various marine power setups.
• Triple Bank Charging: Features three isolated outputs, each capable of delivering the full 40A rating, allowing simultaneous charging of three separate battery banks without compromise.
• Advanced Three-Stage Charging: Utilizes a bulk charge phase until the output current drops to 70% of the rated amperage, followed by a 4-hour timed transition to float mode. An internal temperature sensor adjusts the charge voltage based on ambient conditions (-2 mV/ºC per cell), ensuring optimal charging for Flooded Lead-acid, Gel, or AGM batteries. A DIP switch allows easy selection of the appropriate charge and float voltages for different battery types.

Technical Specifications

Feature	Specification
Portable	No
Charger Output Voltage	24 VDC
Charger Output Current	40 AMP
Charger Input Voltage	120/240 VAC
Charging Banks	3
Dimensions	9" H x 14" W x 25" L
Weight	22.45 lbs
UPC	8719076021568

Warranty and Support

Warranty Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
