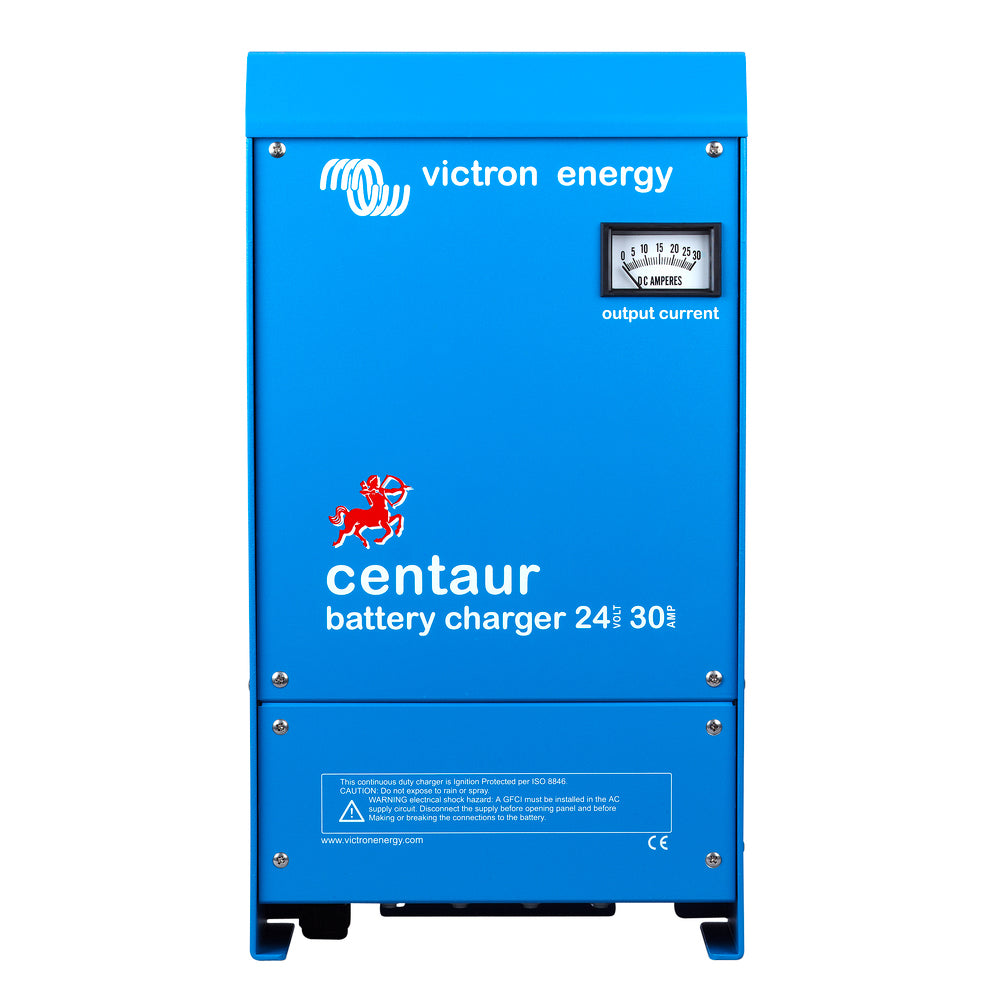

Victron Centaur Charger - 24 VDC - 30AMP - 3-Bank - 120-240 VAC

The Centaur Charger is a robust and reliable power solution designed specifically for marine and boating applications. With its high-capacity 24 VDC output and versatile input options, it ensures your vessel's batteries are efficiently charged and maintained, even in the most demanding marine environments.

Key Features

• Durable Construction: Crafted with aluminum epoxy powder-coated cases, the Centaur Charger features a drip shield and stainless steel fixings to withstand harsh marine conditions such as heat, humidity, and salt air. Circuit boards are safeguarded with an acrylic coating for enhanced corrosion resistance.
• Wide Input Voltage Range: Compatible with a universal 90-265V AC input and 90-400V DC supply, the charger operates seamlessly without any adjustments needed, supporting both AC-DC and DC-DC operations across 50 Hz or 60 Hz frequencies.
• Triple Charging Capability: Equipped with three isolated outputs, each port can deliver the full 30A rated current, allowing simultaneous charging of three separate battery banks without compromise.
• Advanced Charging Technology: Features a three-stage charging process with temperature compensation. The charger operates at bulk rate until 70% charge, followed by a 4-hour timed float rate. An internal temperature sensor adjusts the charge voltage by –2 mV/ºC per cell to optimize battery health. A DIP switch allows selection of charge/float voltages tailored for Flooded Lead-acid, Gel, or AGM batteries.
• Environment Monitoring: Built-in temperature sensors ensure all power components operate within safe limits, automatically reducing output current under extreme conditions to protect the charger and batteries.

Technical Specifications

Feature	Specification
Portable	No
Charging Banks	3
Charger Output Voltage	24V DC
Charger Output Current	30A
Charger Input Voltage	120/240V AC
Dimensions	8" H x 13" W x 21" L
Weight	15.05 lbs
UPC	8719076021551

Warranty and Support

Warranty Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)

Brochure (PDF)
