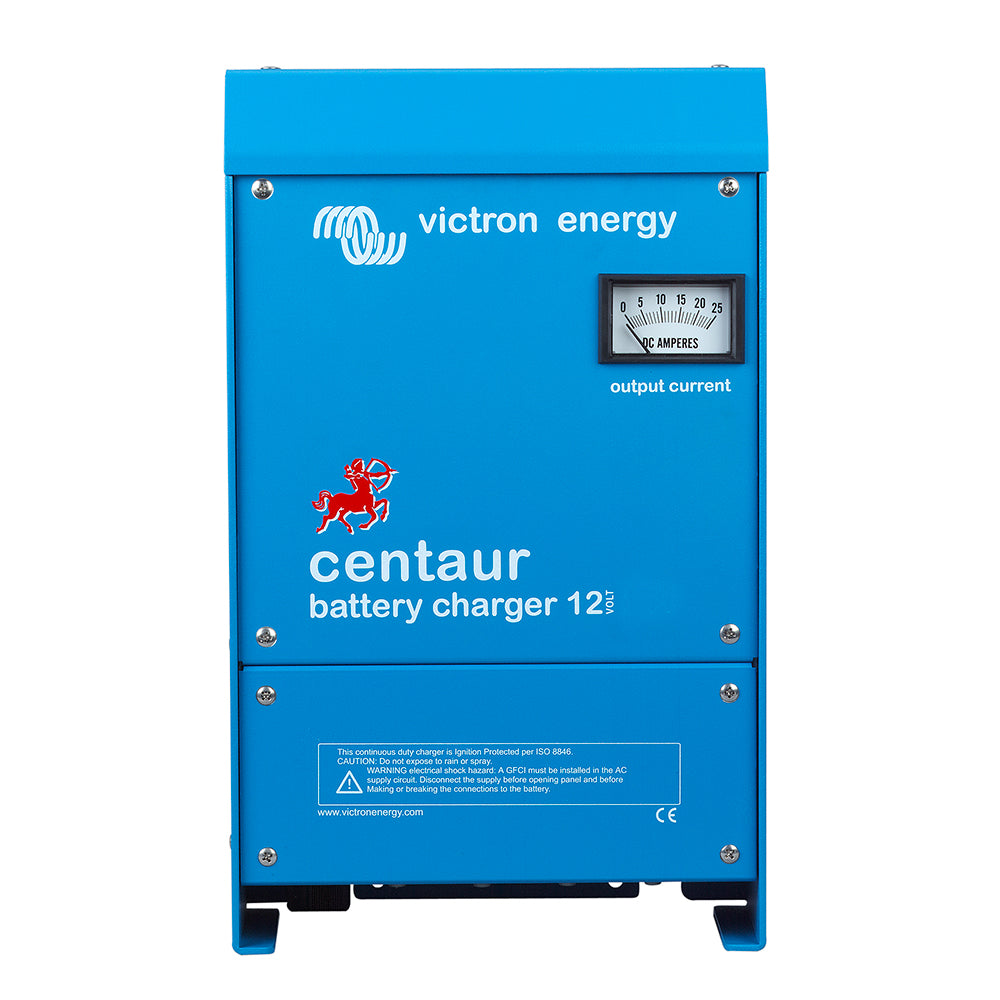

Victron Centaur Charger - 12 VDC - 60AMP - 3-Bank - 120-240 VAC

The Centaur Charger is a high-performance power solution designed specifically for marine and boating applications. Engineered to deliver reliable and efficient charging, it ensures your vessel’s batteries are always ready, even in the most demanding marine environments.

Key Features

• Durable Construction: Crafted with aluminium epoxy powder-coated cases, the Centaur Charger is built to withstand harsh marine conditions, including heat, humidity, and salt air. Stainless steel fixings and an acrylic-coated circuit board provide maximum corrosion resistance, ensuring long-lasting performance.
• Wide Input Voltage Range: Compatible with a universal 90-265V AC input and 90-400V DC supply, the charger seamlessly operates with both AC-DC and DC-DC power sources without the need for adjustments, accommodating various onboard power systems.
• Multi-Bank Charging: Equipped with three isolated outputs, each output can deliver the full rated 60A, allowing simultaneous charging of three separate battery banks. This feature is ideal for managing multiple power storage systems on your vessel.
• Advanced Charging Technology: The Centaur Charger employs a three-stage charging process with temperature compensation. It charges at a bulk rate until 70% capacity, then switches to a timed float rate. An internal temperature sensor adjusts the charge voltage automatically, ensuring optimal performance for Flooded Lead-acid, Gel, or AGM batteries.
• Robust Protection: Temperature sensors monitor power components to maintain operation within safe limits, automatically reducing output current under extreme conditions to protect your investment.

Technical Specifications

Feature	Specification
Portable	No
Charging Banks	3
Charger Output Voltage	12 VDC
Charger Input Voltage	120/240 VAC
Charger Output Amps	60 A
Dimensions	8" H x 13" W x 21" L
Weight	15.4 lbs
UPC	8719076021513

Warranty and Support

Warranty Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Safety Information

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
