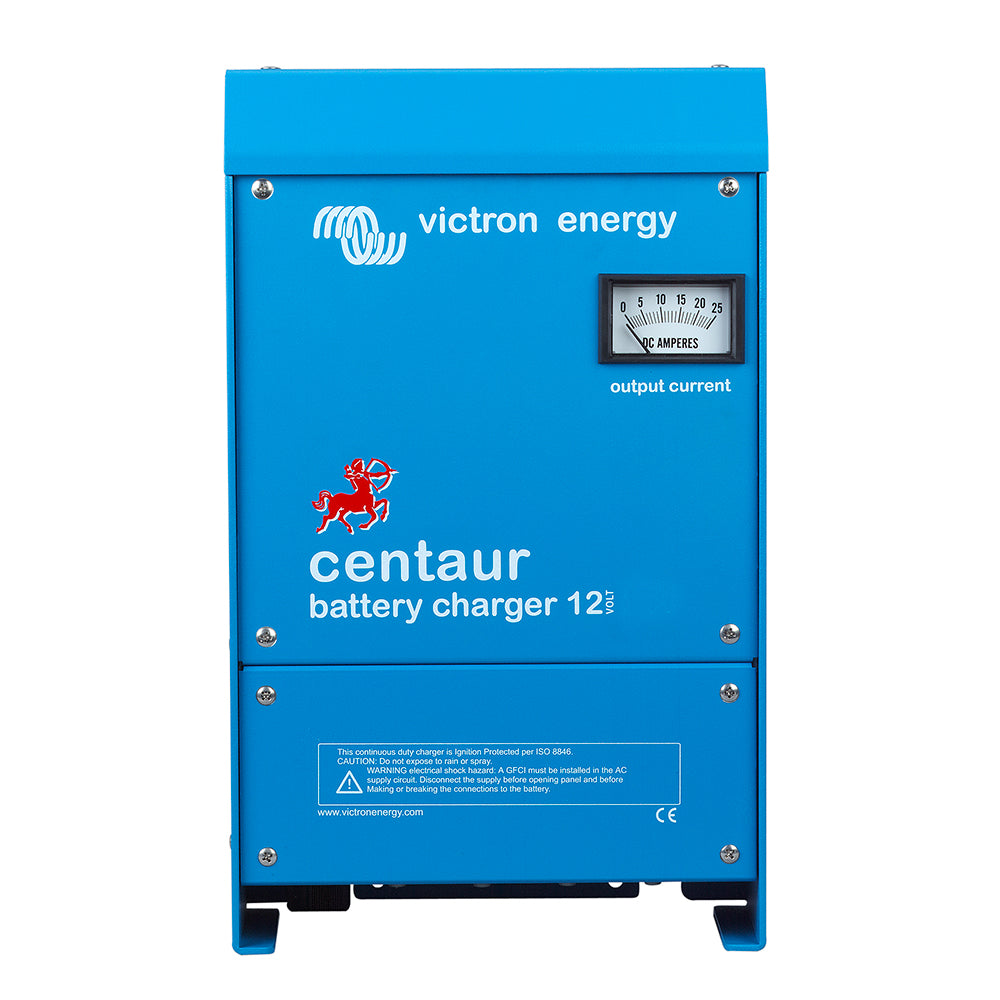

Victron Centaur Charger - 12 VDC - 100AMP - 3-Bank - 120-240 VAC

The Centaur Charger is a robust and reliable power solution designed specifically for marine and boating applications. With its high-capacity 12 VDC output and versatile input options, it ensures your boat's battery banks are efficiently charged and maintained, keeping your adventures on the water uninterrupted.

Key Features

• Durable Construction: Encased in aluminum epoxy powder-coated cases with a drip shield and stainless steel fixings, the Centaur Charger is built to withstand harsh marine environments, including extreme heat, humidity, and salt air. Circuit boards are safeguarded with an acrylic coating for superior corrosion resistance.
• Wide Input Voltage Range: Compatible with a universal 90-265V AC input and suitable for DC supply, allowing both AC-DC and DC-DC operation. Additionally, it accepts a 90-400 V DC supply, providing flexibility in various power setups without the need for adjustments.
• Triple Output Capability: Features three isolated outputs that can each supply the full rated current, enabling simultaneous charging of up to three separate battery banks. Perfect for boats with multiple battery systems.
• Advanced Charging Technology: Utilizes a three-stage charging process with temperature compensation. The charger operates at bulk rate until 70% of the rated current is achieved, then transitions to a 4-hour timer before switching to float rate. An internal temperature sensor adjusts the charge voltage based on ambient conditions, ensuring optimal performance for Flooded Lead-acid, Gel, or AGM batteries via a selectable DIP switch.

Technical Specifications

Feature	Specification
Charging Banks	3
Portable	No
Charger Output Voltage	12 V
Charger Output - Amps	100 A
Charger Input - Voltage	120/240 V
Box Dimensions	9" H x 14" W x 25" L
Weight	24.25 lbs
UPC	8719076021537

Warranty and Support

We stand behind the quality of our Centaur Charger. For detailed warranty information, please visit our Warranty Info page. Should you need any assistance with returns, repairs, or support, please contact your local dealer.

IMPORTANT WARNING: This product may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
