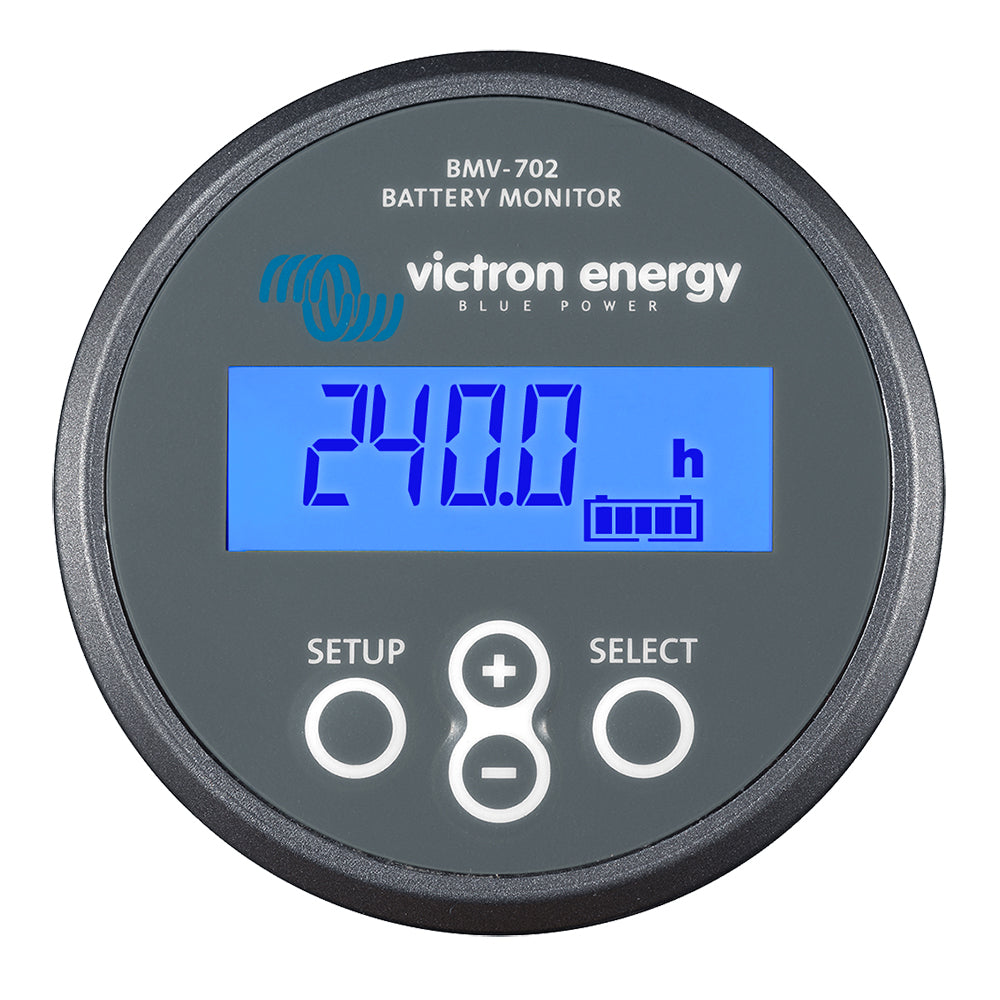

Victron BMV-702 Battery Monitor - Grey

The BMV-702 Battery Monitor in elegant grey is the essential tool for marine enthusiasts seeking precise battery management on their vessels. Designed to provide real-time insights into your battery's performance, it ensures you stay powered up during your maritime adventures.

Key Features

Advanced Battery Monitoring

The BMV-702 acts as a comprehensive battery 'fuel gauge,' offering a time-to-go indicator and more. It accurately measures the remaining battery capacity by accounting for ampere-hours consumed, discharge current, temperature, and battery age using sophisticated software algorithms.

Display Options	Description
Voltage	Monitor real-time voltage levels of your batteries.
Current	Track the current flow to manage power usage effectively.
Ampere-Hours Consumed	Keep an eye on the total ampere-hours used over time.
State of Charge	Understand the current charge level of your battery.
Time to Go	Estimate how long your battery will last at the current discharge rate.
Power Consumption (Watts)	Measure the power usage in watts for better energy management.

Additional Input:

• Measure the voltage of a second battery
• Monitor battery temperature
• Check midpoint voltage

Seamless Connectivity with Bluetooth Smart

Stay connected with the Bluetooth Smart dongle, allowing you to monitor your batteries effortlessly from Apple or Android smartphones, tablets, MacBooks, and other compatible devices.

Effortless Installation

Installing the BMV-702 is straightforward with all electrical connections designed for the quick connect PCB on the current shunt. The shunt links to the monitor using a standard RJ12 telephone cable.

• Includes a 10m RJ12 cable and a 2m battery cable with fuse
• No additional components required
• Comes with a separate front bezel for either a square or round display
• Includes a securing ring for rear mounting and screws for front mounting

Smartphone Programming

Customize your BMV-702 settings with ease. Use the quick install menu with intuitive scrolling texts or leverage the comprehensive smartphone app (Bluetooth Smart dongle required) for a streamlined setup process.

Comprehensive Standard Features

Feature	Details
Battery Metrics	Voltage, current, power, ampere-hours consumed, and state of charge
Remaining Time	Estimated time remaining based on the current discharge rate
Alarms	Programmable visual and audible alarms for critical battery levels
Relay Control	Programmable relay to disconnect non-critical loads or activate a generator when needed
Shunt Specifications	500 Amp quick connect shunt with connection kit, selectable up to 10,000 Amps
Communication	VE.Direct communication port for seamless integration
Data Storage	Stores extensive historical data to evaluate usage patterns and battery health
Voltage Range	Wide input voltage range from 6.5V to 95V
Measurement Resolution	High current measurement resolution of 10 mA (0.01A)
Power Consumption	Low current consumption: 2.9Ah/month (4mA) @12V and 2.2Ah/month (3mA) @24V

Warranty and Support

Warranty Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
