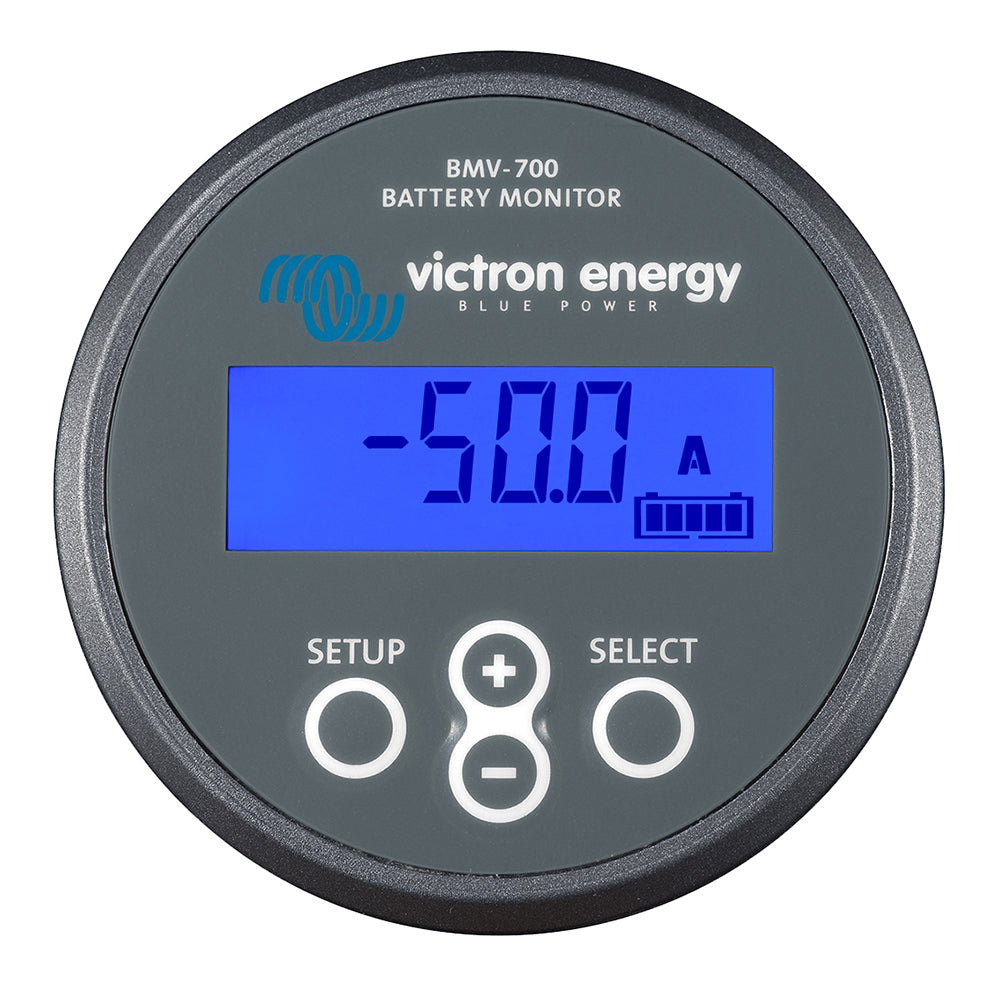

Victron BMV-700 Battery Monitor - Grey

The BMV-700 Battery Monitor by Victron Energy is an essential tool for marine and boating enthusiasts seeking precise battery management. Designed to provide real-time insights into your vessel's power system, the BMV-700 ensures you stay informed about your battery's performance, helping you make informed decisions while at sea.

Key Features

Feature	Description
Comprehensive Monitoring	Tracks battery voltage, current, power, ampere-hours consumed, and state of charge with high precision.
Remaining Time Estimation	Calculates the remaining time based on the current discharge rate, ensuring you never run out of power unexpectedly.
Programmable Alarms	Set visual and audible alerts to notify you of critical battery levels or other important events.
Smart Relay Control	Automatically manage non-critical loads or activate a generator when necessary to preserve battery life.
High Amp Shunt	Includes a 500 Amp quick connect shunt with options available up to 10,000 Amps for versatile applications.
Advanced Communication	Equipped with a VE.Direct communication port for seamless integration with other Victron products.
Historical Data Logging	Stores extensive historical events to help you analyze usage patterns and assess battery health over time.
Wide Voltage Range	Operates efficiently within a voltage range of 6.5 – 95V, making it suitable for various marine battery setups.
High Measurement Resolution	Offers a current measurement resolution of 10 mA (0.01A) for accurate monitoring.
Low Power Consumption	Consumes only 2.9Ah per month at 12V and 2.2Ah per month at 24V, ensuring minimal drain on your battery.

Seamless Connectivity with VictronConnect

The BMV-700 integrates effortlessly with VictronConnect, allowing you to access live status information and configure settings directly from your smartphone or tablet. Whether your device has built-in Bluetooth or is connected via a VE.Direct Bluetooth Smart Dongle, managing your battery system has never been easier.

Technical Specifications

• Input Voltage Range: 6.5 – 95V
• Current Measurement Resolution: 10 mA (0.01A)
• Shunt Capacity: 500 Amp (Quick Connect) up to 10,000 Amps
• Power Consumption: 2.9Ah/month at 12V, 2.2Ah/month at 24V
• Communication Port: VE.Direct

Installation and Setup

Installing the BMV-700 Battery Monitor on your boat is straightforward with the provided quick connect shunt and connection kit. Whether you're retrofitting an existing system or setting up a new one, the BMV-700 offers flexibility and ease of integration to ensure accurate monitoring from the get-go.

Warranty and Support

Warranty Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
