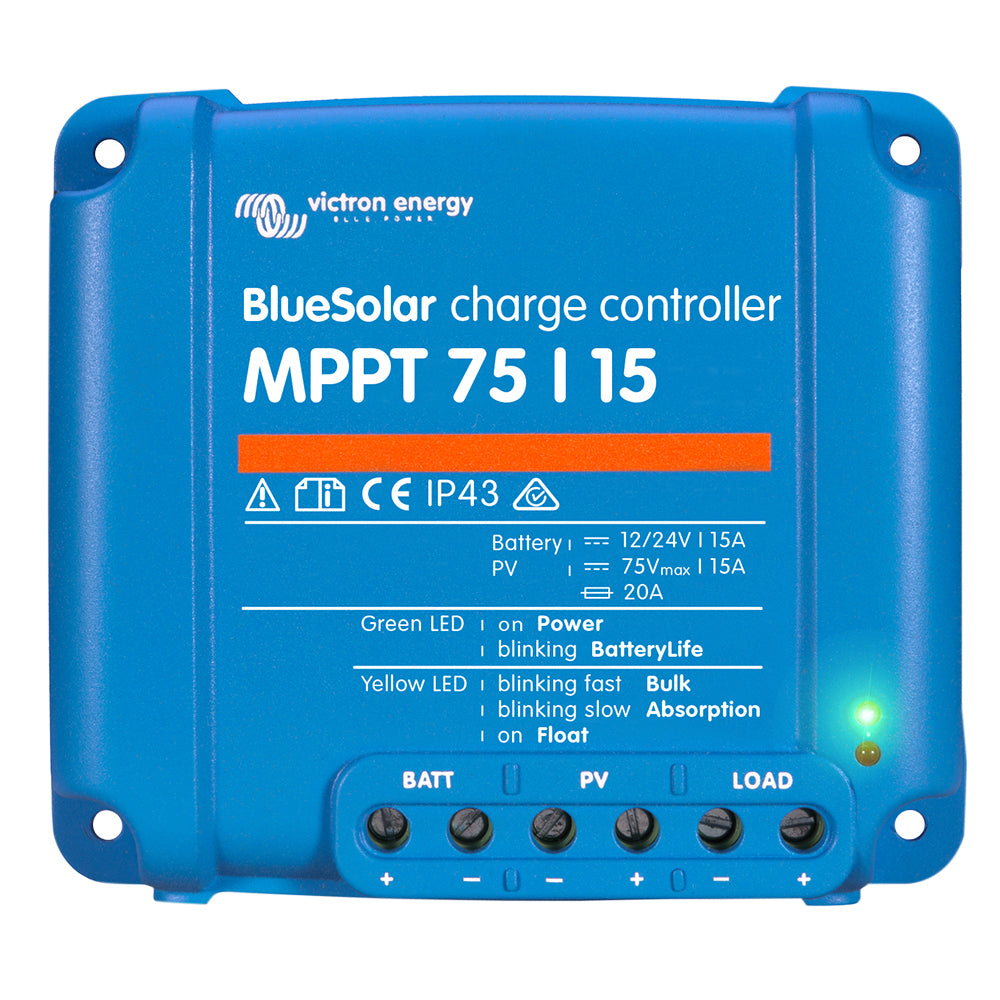

Victron BlueSolar MPPT Charge Controller - 75V - 15AMP - UL Approved

The BlueSolar MPPT Charge Controller - 75V - 15AMP is a high-efficiency solar charge controller designed to optimize your marine or boating electrical system. Engineered for reliability in demanding environments, it ensures your boat's batteries are charged efficiently, maximizing energy harvest from your solar panels.

Features

• Ultra-Fast Maximum Power Point Tracking (MPPT): In conditions with fluctuating light intensity, such as a clouded sky, this controller enhances energy harvest by up to 30% compared to PWM charge controllers and up to 10% over slower MPPT controllers.
• Load Output: Prevents battery over-discharge by disconnecting loads when the battery reaches a preset voltage. It features an intelligent battery management algorithm ensuring optimal battery life. Note that some loads, especially inverters, may require direct connection to the battery with the inverter remote controlled via the load output. A special interface cable may be needed; refer to the manual.
• Battery Life: Intelligent Battery Management: The controller monitors your battery's state of charge and adjusts the load disconnect level to ensure the battery is recharged to nearly 100% capacity weekly. This prevents harmful partial cycling, which can significantly reduce battery lifespan.
• Programmable Battery Charge Algorithm: Customize your charging parameters through our comprehensive software available on our website.
• Day/Night Timing and Light Dimming Option: Manage your loads based on time and ambient light conditions. Detailed settings are available in our software section.
• Programming, Real-Time Data, and History Display Options: Integrate with Color Control GX or other GX devices for enhanced data monitoring. Alternatively, connect a smartphone or Bluetooth-enabled device using a VE.Direct Bluetooth Smart dongle for real-time insights.

Specifications

Feature	Details
Charger Input Voltage	18-75V
Charger Output Amperage	15A
Charger Output Voltage	12V/24V
Charging Banks	1
Portable	No
Box Dimensions	2"H x 6"W x 6"L
Weight	1.3 lbs
UPC	8719076025320

Resources

• Quick Guide (PDF)
• Brochure (PDF)
• Warranty Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs, or support issues related to this product.

Watch the BlueSolar MPPT Charge Controller in Action
