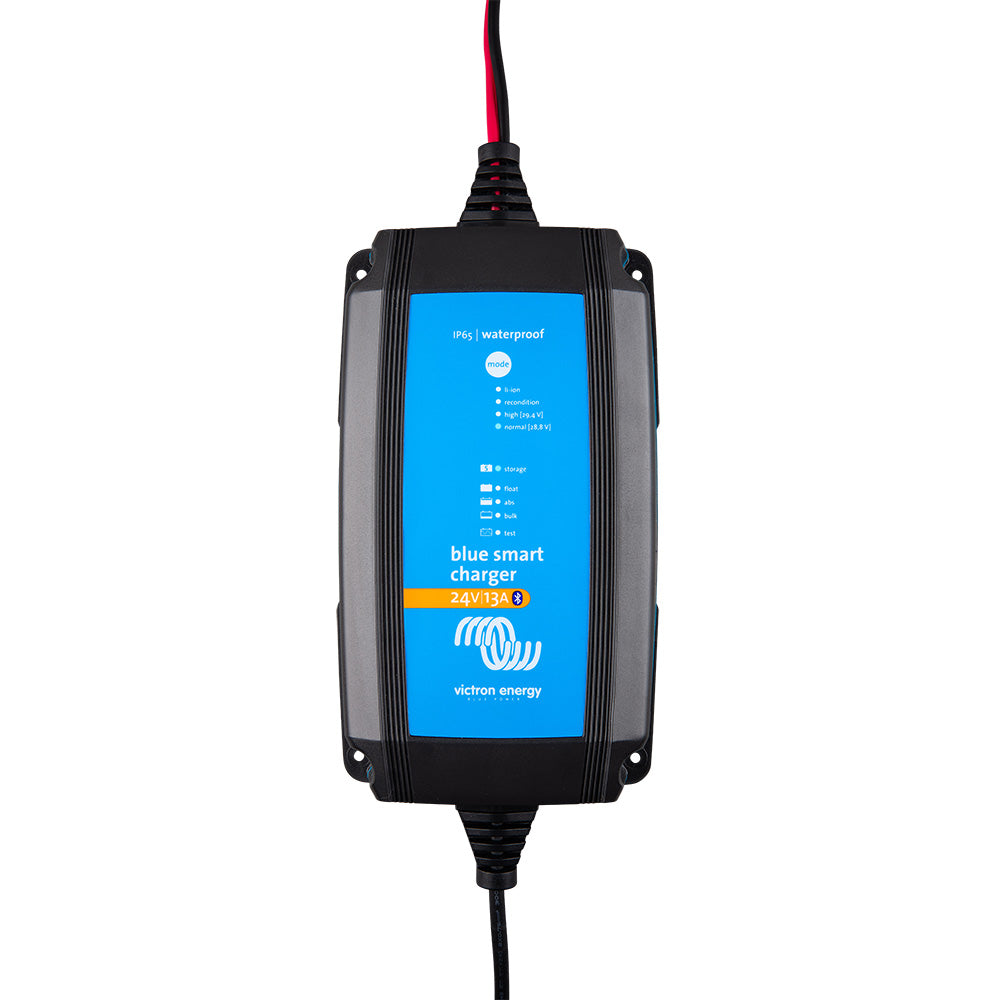

Victron BlueSmart IP65 Charger 24/13 (1) 120V NEMA 1-15P UL Approved

The BlueSmart IP65 Charger 24/13 is the ultimate solution for maintaining and charging your marine batteries. Designed with professional-grade features and built-in Bluetooth connectivity, this charger ensures your boat's battery remains in optimal condition, providing reliable performance and extended battery life.

Features

The BlueSmart IP65 Charger is engineered for versatility and durability, making it ideal for various marine applications. Whether you're boating, sailing, or managing a marina fleet, this charger delivers exceptional performance in challenging environments.

Advanced Charging Technology

Utilizing a sophisticated seven-step charging algorithm, the BlueSmart IP65 optimizes battery health and efficiency. This intelligent system:

1. Delivers precise power to the battery
2. Maintains battery health
3. Enhances overall performance
4. Prolongs battery lifespan
5. Recovers deeply-discharged batteries
6. Ensures safe and reliable charging
7. Adapts to different battery types and conditions

Recovery of Deeply-Discharged Batteries

Unlike other chargers, the BlueSmart IP65 actively attempts to revive deeply-discharged or 'dead' batteries. It employs a low current to gently re-energize the battery before resuming normal charging once sufficient voltage is detected, ensuring your marine batteries are always ready for use.

Seamless Connectivity

Equipped with built-in Bluetooth, the BlueSmart IP65 allows you to monitor and control your charging process remotely. Using the VictronConnect app on your smartphone, tablet, or laptop, you can:

• Check the status of the charger and battery
• Configure all charger settings
• Receive real-time notifications and updates

Easy Battery Connection

Connecting your battery is hassle-free with the BlueSmart IP65 Charger. It includes:

• Crocodile clips for quick attachment
• M8 eyelets for a more secure and permanent connection

This flexibility allows you to set up the charger permanently on your boat or move it as needed.

Robust Enclosure

Designed to withstand harsh marine environments, the BlueSmart IP65 features:

• IP65-rated protection against splash and dust
• Ignition protection for safety
• Durable construction with a lightweight design of 0.9kg (2lbs)
• Compact dimensions (60 x 105 x 190mm / 2.3 x 4.1 x 7.5 inches) for easy storage

Comprehensive Specifications

Category	Details
Input Voltage	120 VAC
Efficiency	95%
Standby Power Consumption	0.5W
Minimum Battery Voltage	Starts charging from 0V
Charge Voltage 'Absorption'	Normal: 28.8V High: 29.4V Li-ion: 28.4V
Charge Voltage 'Float'	Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage 'Storage'	Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Current	5/8A
Charge Current in Low Current Mode	2/3A
Temperature Compensation (Lead-Acid Batteries Only)	32 mV/°C (18mV/°F)
Can Be Used as Power Supply	Yes
Back Current Drain	0.7Ah/month (1mA)
Protection Features	Reverse polarity; Output short circuit; Over temperature
Operating Temperature Range	-40 to +60°C (full rated output up to 30°C) -40 to +140°F (full rated output up to 90°F)
Humidity (non-condensing)	Max 95%

Enclosure Specifications

Component	Details
Battery Connection Cable	Black and red cables, 1.5 meters (4.9 feet)
AC Connection Cable	1.8 meters (5.9 feet) with US NEMA 1-15 plug
Protection Category	P65 (splash and dust proof, ignition protected)
Weight	0.9kg (2lbs)
Dimensions (H x W x D)	60 x 105 x 190mm (2.3 x 4.1 x 7.5 inches)

Safety and Compliance

The BlueSmart IP65 Charger meets rigorous safety and performance standards, ensuring reliable operation in marine environments:

• Safety Standards: UL 1236, CSA C22.2, EN 60335-1, EN 60335-2-29
• Emission Standards: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity Standards: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

Support and Resources

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

Specification	Detail
Charger Input Voltage	120V
Charger Output Amps	13A
Charger Output Voltage	24V
Charging Banks	1
Portable	Yes
Box Dimensions	4"H x 7"W x 16"L
Weight	4.8 lbs
UPC	8719076060888

Quick Guide (PDF)

Owner's Manual (PDF)
