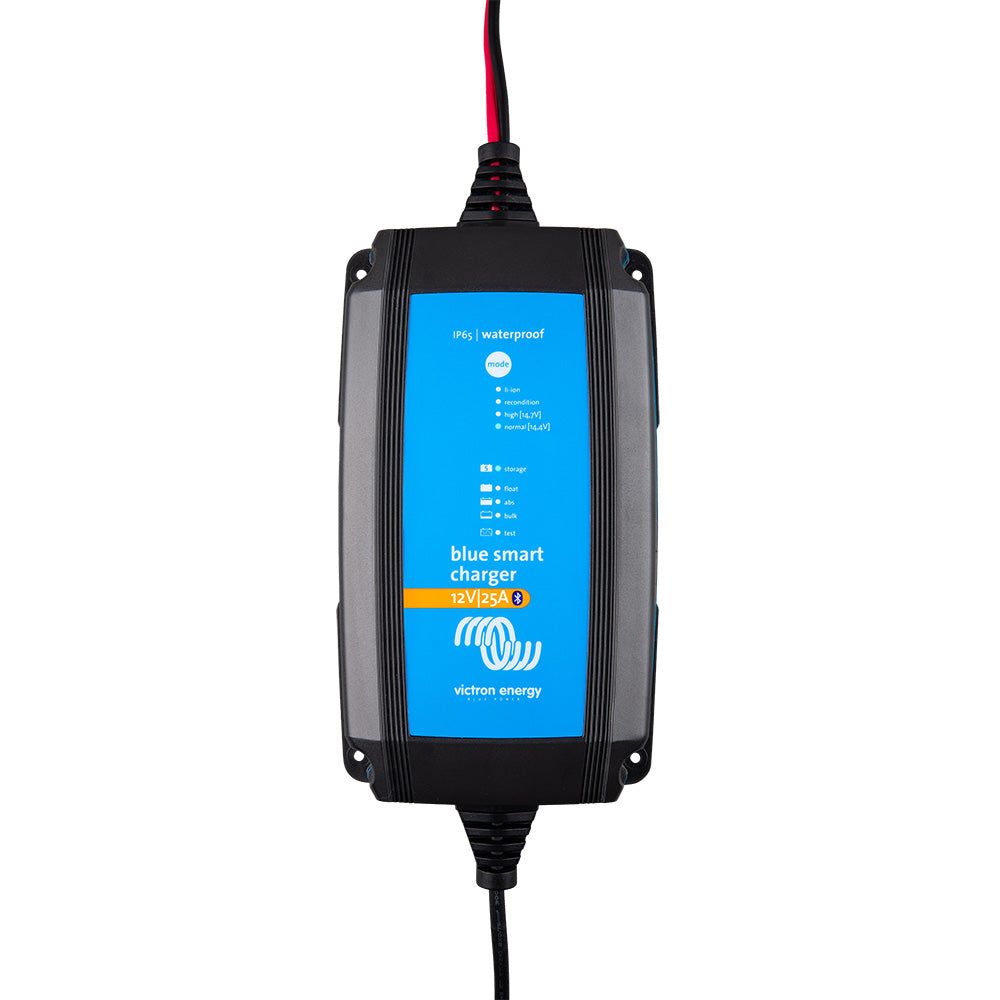

Victron BlueSmart IP65 Charger 12/25 (1) 120V NEMA 1-15P

The BlueSmart IP65 Charger 12/25 is a highly durable and intelligent battery charger tailored for marine and boating applications. Its IP65 rating ensures resistance against water and dust, making it ideal for the harsh environments encountered on boats, yachts, and other marine vehicles. Designed with built-in Bluetooth connectivity, this charger offers seamless integration and remote monitoring, ensuring your vessel's batteries remain in optimal condition.

Advanced Charging Technology for Optimal Battery Health

The BlueSmart IP65 Charger utilizes a sophisticated seven-step charging algorithm to maximize battery performance and longevity. This intelligent system provides the precise amount of power needed, maintains battery health, enhances overall performance, and extends the life of your batteries, ensuring they are always ready when you need them.

Revive Deeply-Discharged Batteries

Unlike many other chargers on the market, the BlueSmart IP65 Charger is capable of recovering deeply-discharged or ‘dead’ batteries. It does so by initiating a low current to gently revive the battery, after which normal charging resumes once adequate voltage is detected. This feature is particularly useful for marine batteries that may become heavily drained during extended periods of inactivity.

Effortless Battery Connection

Designed for ease of use, the charger comes equipped with both crocodile clips and M8 eyelets, allowing for quick and secure connections to your battery. For added convenience, users have the option to leave the charger permanently connected, ensuring continuous maintenance of battery health without the need for frequent reconnections.

Remote Battery Monitoring with Bluetooth

Stay informed about your battery's status from anywhere on board with the BlueSmart IP65 Charger’s built-in Bluetooth functionality. Monitor and manage your charging settings through the VictronConnect app on your smartphone, tablet, or laptop, providing seamless control and oversight without the need to be physically near the charger.

Technical Specifications

Feature	Specification
Input Voltage	120 VAC
Efficiency	94%
Standby Power Consumption	0.5W
Minimum Battery Voltage	Starts charging from down to 0V
Charge Voltage 'Absorption'	Normal: 14.4V High: 14.7V Li-ion: 12.4V
Charge Voltage 'Float'	Normal: 13.8V High: 13.8V Li-ion: 13.5V
Charge Voltage 'Storage'	Normal: 13.2V High: 13.2V Li-ion: 13.5V
Charge Current	25A
Temperature Compensation (Lead-Acid Batteries Only)	16 mV/°C (18 mV/°F)
Can Be Used as Power Supply	Yes
Back Current Drain	0.7Ah/month (1mA)
Protection	Reverse polarity Output short circuit Over temperature
Operating Temperature Range	-40 to +60°C (full rated output up to 30°C) -40 to +140°F (full rated output up to 90°F)
Humidity (non-condensing)	Max 95%

Enclosure Features

• Battery Connection: Black and red cables, each 1.5 meters (4.9 feet)
• 120 V AC Connection: 1.8-meter (5.9 feet) cable with US NEMA 1-15 plug
• Protection Category: IP65 (splash and dust proof, ignition protected)
• Weight: 0.9kg (2lbs)
• Dimensions (H x W x D): 60 x 105 x 190mm (2.3 x 4.1 x 7.5 inches)

Compliance and Standards

• Safety: UL 1236, CSA C22.2, EN 60335-1, 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Specifications

• Charger Input - Voltage: 120V
• Charger Output - Amps: 25A
• Charger Output Voltage: 12V
• Charging Banks: 1
• Portable: Yes
• Box Dimensions: 4"H x 8"W x 16"L
• Weight: 4.8 lbs
• UPC: 8719076060871

Quick Guide (pdf)

Owner's Manual (pdf)
