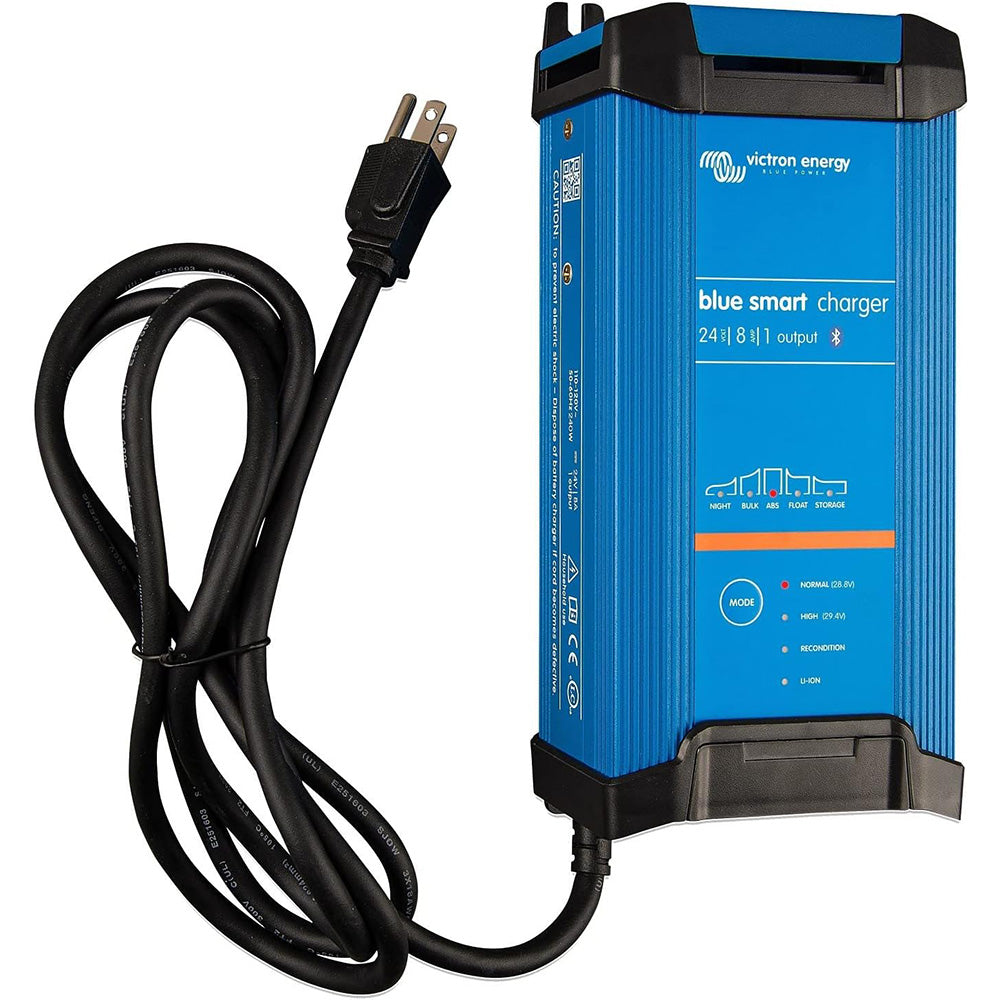

Victron Blue Smart IP22 24VDC 8A 1 Bank 120V Charger - Dry Mount

The Blue Smart IP22 24VDC 8A 1 Bank 120V Charger is an advanced marine battery charger designed specifically for boating enthusiasts. With its robust features and built-in Bluetooth connectivity, it ensures your marine batteries are efficiently charged and maintained, providing reliable power for your boating adventures.

Key Features

Bluetooth Smart Connectivity

Stay connected with the Blue Smart IP22 Charger’s built-in Bluetooth feature. Monitor voltage and current, adjust settings, and receive firmware updates wirelessly, all through your smartphone or tablet. This seamless connectivity allows for real-time battery management, ensuring optimal performance during your marine excursions.

High Efficiency

Achieve superior charging efficiency with up to 94%, significantly reducing heat generation compared to standard chargers. This high efficiency not only conserves energy but also extends the lifespan of your marine batteries. Additionally, once your battery is fully charged, the charger’s power consumption drops to just 0.5 watts, minimizing energy usage when your boat is not in active use.

Adaptive 6-Stage Charge Algorithm

The Blue Smart Charger employs a microprocessor-controlled adaptive battery management system that automatically optimizes the charging process based on your battery’s usage. The six-stage algorithm includes:

1. Test
2. Bulk
3. Absorption
4. Recondition
5. Float
6. Storage

Storage Mode

Extend the life of your marine batteries with the storage mode feature. When the battery hasn’t been discharged for 24 hours, the charger reduces the float voltage to minimize gassing and corrosion, preventing electrolyte stratification and sulfation. This ensures your batteries remain in peak condition even during prolonged periods of inactivity.

Li-ion Battery Compatibility

Versatile and adaptable, the Blue Smart IP22 Charger is capable of charging Li-ion batteries using a straightforward bulk–absorption–float algorithm, making it suitable for a variety of marine energy storage systems.

Fully Discharged Battery Recovery

Never worry about deeply discharged batteries. The charger can initiate charging even if the battery voltage drops to zero, and features an internal disconnect function to safely reconnect to fully discharged Li-ion batteries.

NIGHT and LOW Settings

Operate your charger quietly with the NIGHT or LOW settings. These modes reduce the output current to a maximum of 50% of the nominal output, ensuring noiseless operation. The NIGHT mode automatically deactivates after 8 hours, while the LOW mode can be manually turned off as needed.

Overheat Protection

Designed for reliability, the Blue Smart Charger includes overheat protection. If the temperature rises up to 50°C, the output current is automatically reduced to prevent overheating, ensuring safe and continuous operation even in demanding marine environments.

LED Status Indicators

Stay informed with eleven LED indicators that display the current charging stage, including TEST, BULK, ABSORPTION, RECONDITION, FLOAT, STORAGE, and READY. Use the MODE button to select between NORMAL (14.4V), HIGH (14.7V), RECONDITION, and LI-ION charging modes.

Technical Specifications

Specification	Details
Input Voltage Range	100 - 130 VAC
Charge Current (Normal Mode)	8A / 12A / 16A
Charge Current (NIGHT or LOW)	4A / 6A / 8A
Efficiency	94%
No Load Power Consumption	0.5 W
Frequency	45 – 65 Hz
Number of Outputs	1
Charge Voltage 'Absorption'	Normal: 28.8V High: 29.4V Li-ion: 28.4V
Charge Voltage 'Float'	Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage 'Storage'	Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm	6-stage adaptive
Power Supply Capability	Yes
Protection Features	Battery reverse polarity (fuse), Output short circuit, Over temperature
Operating Temperature Range	-20°C to +50°C
Humidity (non-condensing)	Max 98%
Bluetooth Frequency	2402-2480MHz
Bluetooth Power	-4dBm

Enclosure Specifications

Specification	Details
Material & Color	Aluminium (Blue RAL 5012)
Battery Connection	Screw terminals 13 mm² / AWG6
230V AC Connection	1.5-meter cable with CEE 7/7 plug, BS 1363 plug (UK), or AS/NZS 3112 plug (AU/NZ)
Protection Category	IP22
Weight	1.3 kg
Dimensions (H x W x D)	235 x 108 x 65 mm

Compliance and Standards

The Blue Smart IP22 Charger meets rigorous safety and performance standards, ensuring reliable operation in marine environments:

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000
• Automotive: E4-10R

Additional Specifications

Specification	Details
Charger Input Voltage	120V
Charger Output Amperage	8A
Charger Output Voltage	24V
Charging Banks	1
Portable	No
Box Dimensions	3" H x 7" W x 11" L
Weight	3.25 lbs
UPC	8719076050643

Downloadable Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
