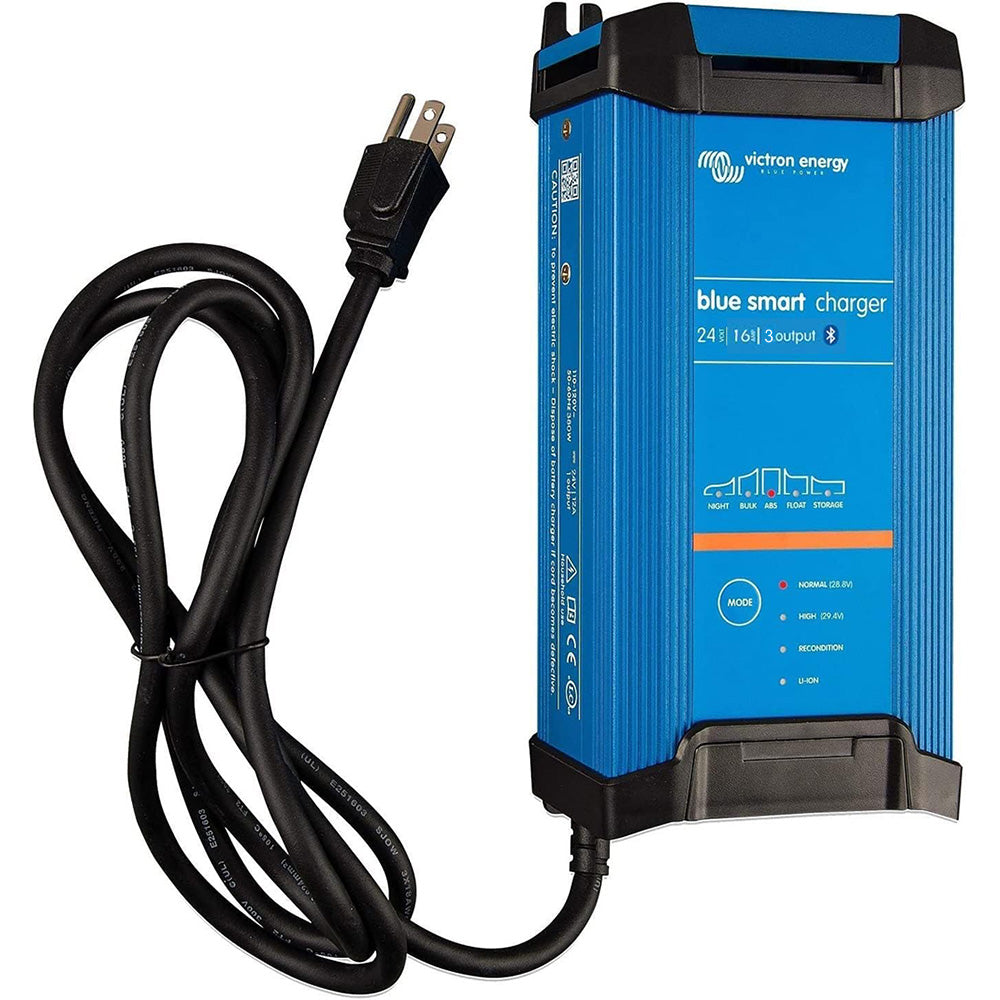

Victron Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry Mount

The Blue Smart IP22 24VDC 16A 3 Bank 120V Charger - Dry Mount is the ultimate charging solution designed specifically for marine and boating applications. With its robust build and advanced features, it ensures your vessel's batteries are maintained efficiently and reliably.

Key Features

Bluetooth Smart Connectivity

Monitor and control your charging process wirelessly using Bluetooth. Adjust settings, track voltage and current, and receive firmware updates effortlessly through the Blue Smart app.

High Efficiency Performance

Achieve up to 94% charging efficiency, generating significantly less heat compared to standard chargers. Once your battery reaches full charge, power consumption drops to a mere 0.5 Watts, ensuring energy conservation and prolonging battery life.

Adaptive 6-Stage Charge Algorithm

Equipped with a microprocessor-controlled adaptive charging system, the Blue Smart Charger optimizes each charging stage based on your battery's usage patterns. The six stages include Test, Bulk, Absorption, Recondition, Float, and Storage, ensuring comprehensive battery management.

Storage Mode for Extended Battery Life

When not in use, the charger enters Storage Mode after 24 hours of no discharge. This reduces float voltage to minimize gassing and corrosion, while periodically equalizing the battery to prevent electrolyte stratification and sulfation.

Compatible with Li-ion Batteries

The Blue Smart IP22 Charger effectively charges Li-ion batteries using a straightforward Bulk – Absorption – Float algorithm, ensuring versatility for various battery types used in marine environments.

Fully Discharged Battery Recovery

Capable of recovering batteries even if they are fully discharged to zero volts. It can restore fully discharged Li-ion batteries with internal disconnect functionality.

Quiet Operation Modes: NIGHT and LOW

Reduce output current by up to 50% in NIGHT or LOW modes for silent operation, perfect for nighttime charging on your boat. NIGHT mode automatically deactivates after 8 hours, while LOW mode can be turned off manually when needed.

Overheat Protection

The charger automatically reduces output current as temperature rises up to 50°C, ensuring safe operation without failure.

Status Indication with LED Indicators

Stay informed with eleven LED indicators displaying charging stages such as TEST, BULK, ABSORPTION, RECONDITION, FLOAT, STORAGE, and READY. Use the MODE button to select Normal (14.4V), High (14.7V), Recondition, or Li-ion settings.

Specifications

Feature	Details
Input Voltage Range	100 - 130 VAC
Charge Current (Normal Mode)	8/12/16 A
Charge Current (Night/Low Mode)	4/6/8 A
Efficiency	94%
No Load Power Consumption	0.5 W
Frequency	45 – 65 Hz
Number of Outputs	1
Charge Voltage 'Absorption'	Normal: 28.8V High: 29.4V Li-ion: 28.4V
Charge Voltage 'Float'	Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage 'Storage'	Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm	6-stage adaptive
Power Supply Function	Yes
Protection Features	Battery reverse polarity (fuse), Output short circuit, Over temperature
Operating Temperature Range	-20 to +50°C
Humidity (non-condensing)	Max 98%
Bluetooth Specifications	Frequency: 2402-2480MHz Power: -4dBm

Enclosure Specifications

• Material & Color: Aluminium (Blue RAL 5012)
• Battery Connection: Screw terminals 13 mm² / AWG6
• 230 V AC Connection: 1.5-meter cable with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
• Protection Category: IP22
• Weight: 1.3 kg
• Dimensions (H x W x D): 235 x 108 x 65 mm

Compliance & Standards

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000
• Automotive: E4-10R

Additional Information

Please contact your dealer for any returns, repairs, or support issues related to this product.

Product Specifications

Feature	Details
Charger Input Voltage	120V
Charger Output Amps	16A
Charger Output Voltage	24V
Charging Banks	3
Portable	No
Box Dimensions	3"H x 7"W x 11"L
Weight	3.35 lbs
UPC	8719076052548

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
