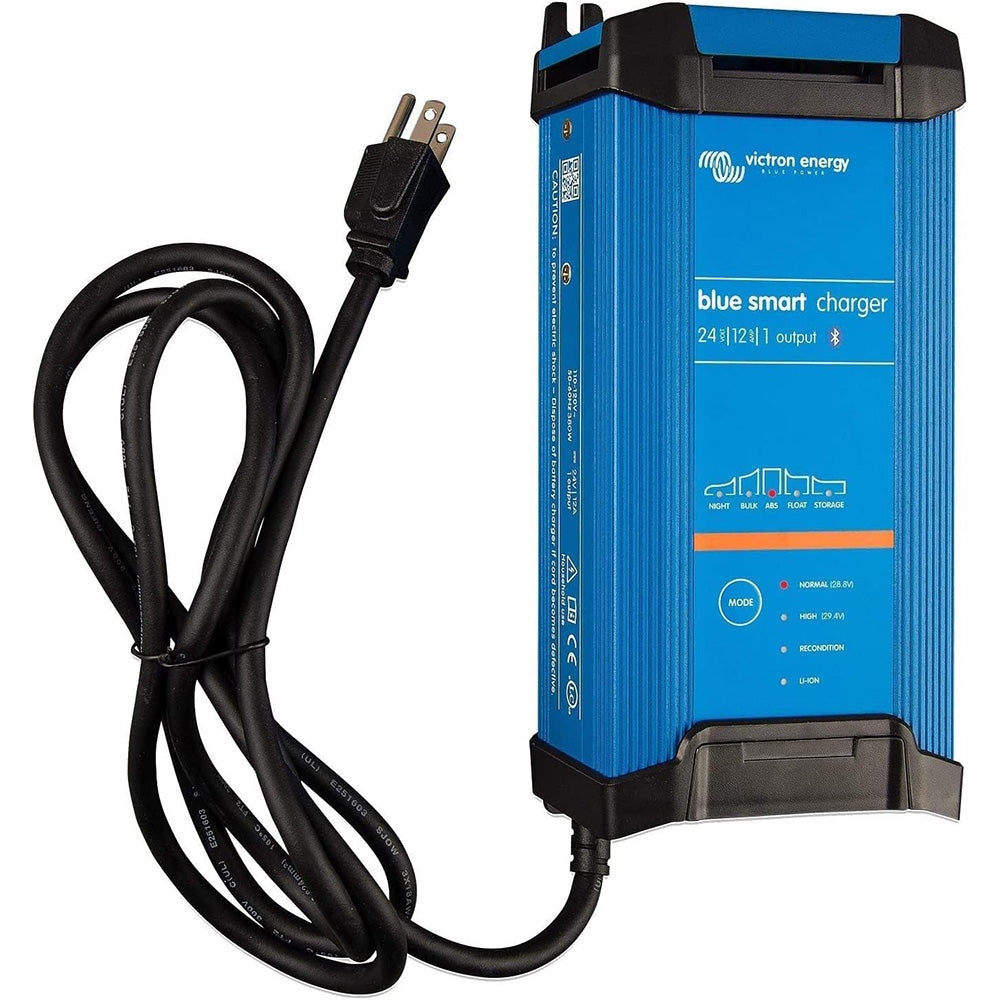

Victron Blue Smart IP22 24VDC 12A 1 Bank 120V Charger - Dry Mount

The Blue Smart IP22 24VDC 12A Charger is an advanced, reliable solution designed specifically for marine and boating applications. Whether you're maintaining batteries on your boat, camper-van, or any motor vehicle, this charger ensures optimal performance and longevity with its intelligent features and robust build.

Key Features

• IP22 Rated Enclosure: Durable aluminum housing (RAL 5012 blue) protects against dust and dripping water, making it ideal for harsh marine environments.
• Bluetooth Smart Connectivity: Effortlessly monitor and control your charging process wirelessly via Bluetooth-enabled devices.
• High Efficiency: Achieves up to 94% efficiency, reducing heat generation and minimizing power consumption when not actively charging.
• Adaptive 6-Stage Charging: Automatically adjusts the charging stages based on battery usage, ensuring precise and safe charging.
• Storage Mode: Extends battery life by minimizing maintenance and preventing sulfation during periods of inactivity.
• Li-ion Battery Compatibility: Supports charging for Li-ion batteries with a simplified charging algorithm.
• Fully Discharged Battery Recovery: Rejuvenates deeply discharged batteries, including those with internal disconnect features.
• Night and Low Modes: Operate silently with reduced current, perfect for overnight charging without disturbance.
• Overheat Protection: Automatically reduces output current to prevent overheating, ensuring safety and reliability.
• Comprehensive Status Indicators: Eleven LED indicators provide real-time information on charging stages and modes.

Bluetooth Smart Connectivity

Stay connected with the Blue Smart IP22 Charger through its built-in Bluetooth feature. Monitor voltage and current, adjust settings, and receive updates directly to your smartphone or tablet. This wireless capability allows for convenient management of your charging process from anywhere within the Bluetooth range.

High Efficiency

Experience superior efficiency with up to 94%, resulting in significantly less heat generation compared to standard chargers. When your battery reaches full charge, the power consumption drops to a minimal 0.5 Watt, ensuring energy savings and prolonged charger lifespan.

Adaptive 6-Stage Charge Algorithm

The microprocessor-controlled adaptive charging algorithm intelligently manages the charging process through six stages: Test, Bulk, Absorption, Recondition, Float, and Storage. This ensures that each battery is charged optimally based on its current state and usage patterns, enhancing performance and extending battery life.

Storage Mode

When your battery is not in use for 24 hours, the storage mode activates, reducing the float voltage to minimize gassing and corrosion. This mode helps prevent electrolyte stratification and sulfation, which are common causes of premature battery failure. Weekly voltage equalization maintains battery health during extended periods of inactivity.

Li-ion Battery Compatibility

The Blue Smart IP22 Charger is versatile, supporting Li-ion batteries with a straightforward Bulk – Absorption – Float charging algorithm. This ensures safe and efficient charging for modern battery technologies used in various marine applications.

Fully Discharged Battery Recovery

Even if a battery is completely discharged to zero volts, the charger can initiate the charging process to recover it. This feature is compatible with Li-ion batteries that have an internal disconnect function, ensuring no damage occurs during recovery.

Night and Low Modes

For silent operation during nighttime or in quiet environments, the charger offers Night and Low modes. These modes reduce the output current to a maximum of 50% of the nominal output, ensuring a noiseless charging experience. The Night mode automatically deactivates after 8 hours, while the Low mode can be turned off manually.

Overheat Protection

Safety is paramount with the Blue Smart IP22 Charger. It features overheat protection that reduces the output current as the temperature approaches 50°C, preventing overheating and ensuring reliable operation even in high-temperature conditions.

Status Indicators

Stay informed about your charging process with eleven LED indicators that display the current charging stage: Test, Bulk, Absorption, Recondition, Float, Storage, and Ready. Additionally, use the MODE button to switch between Normal (14.4V), High (14.7V), Recondition, and Li-ion settings.

Specifications

Feature	Details
Input Voltage Range	100 - 130 VAC
Charge Current (Normal Mode)	8/12/16 A
Charge Current (Night or Low)	4 / 6 / 8 A
Efficiency	94%
No Load Power Consumption	0.5 W
Frequency	45 – 65 Hz
Number of Outputs	1
Charge Voltage 'Absorption'	Normal: 28.8V High: 29.4V Li-ion: 28.4V
Charge Voltage 'Float'	Normal: 27.6V High: 27.6V Li-ion: 27.0V
Charge Voltage 'Storage'	Normal: 26.4V High: 26.4V Li-ion: 27.0V
Charge Algorithm	6-stage adaptive
Power Supply Capability	Yes
Protection Features	Battery reverse polarity (fuse), Output short circuit, Over temperature
Operating Temperature Range	-20°C to +50°C
Humidity (non-condensing)	Max 98%
Bluetooth Specifications	Frequency: 2402-2480MHz Power: -4dBm

Enclosure Specifications

• Material & Color: Aluminum (Blue RAL 5012)
• Battery Connection: Screw terminals 13 mm² / AWG6
• 230 V AC Connection: 1.5-meter cable with CEE 7/7 plug, BS 1363 plug (UK), or AS/NZS 3112 plug (AU/NZ)
• Protection Category: IP22
• Weight: 1.3 kg
• Dimensions: 235 x 108 x 65 mm (H x W x D)

Standards Compliance

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000
• Automotive: E4-10R

Additional Specifications

Specification	Details
Charger Input - Voltage	120V
Charger Output - Amps	12A
Charger Output Voltage	24V
Charging Banks	1
Portable	No
Box Dimensions	3"H x 7"W x 11"L
Weight	3.25 lbs
UPC	8719076050650

Documentation

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
