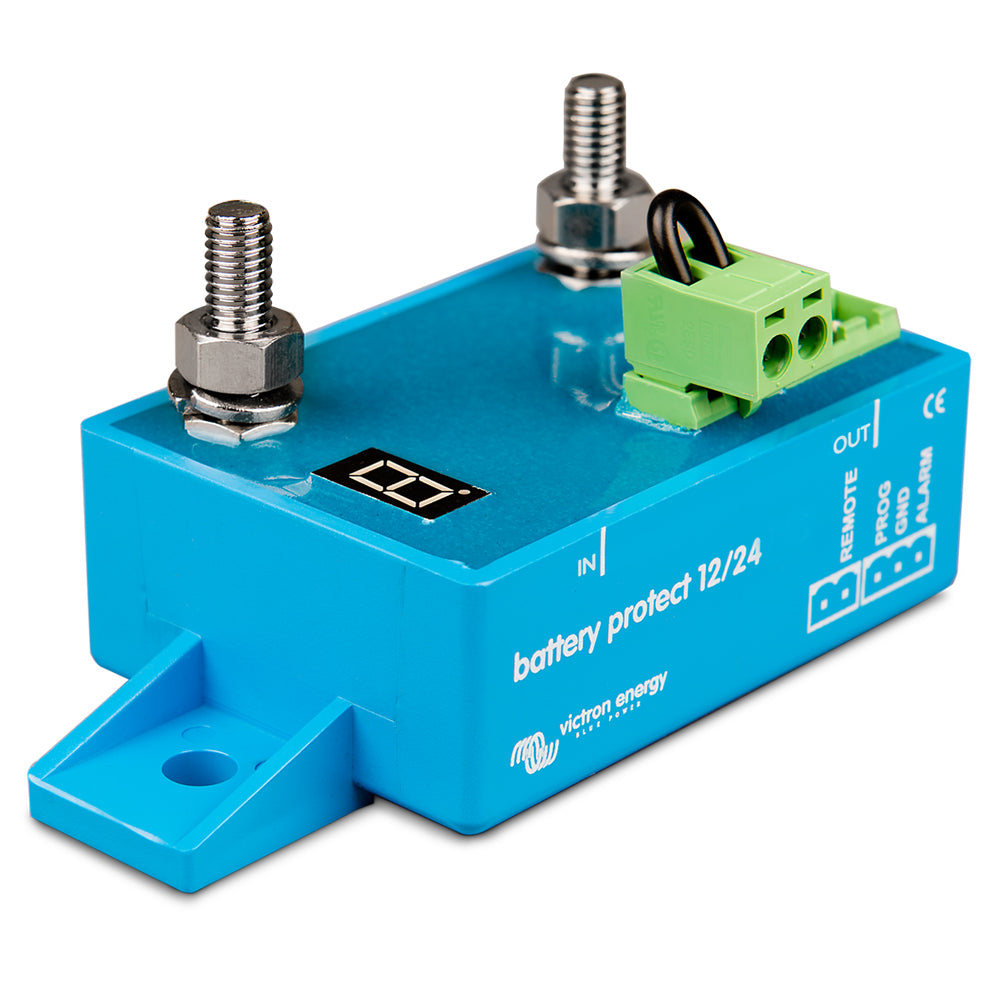

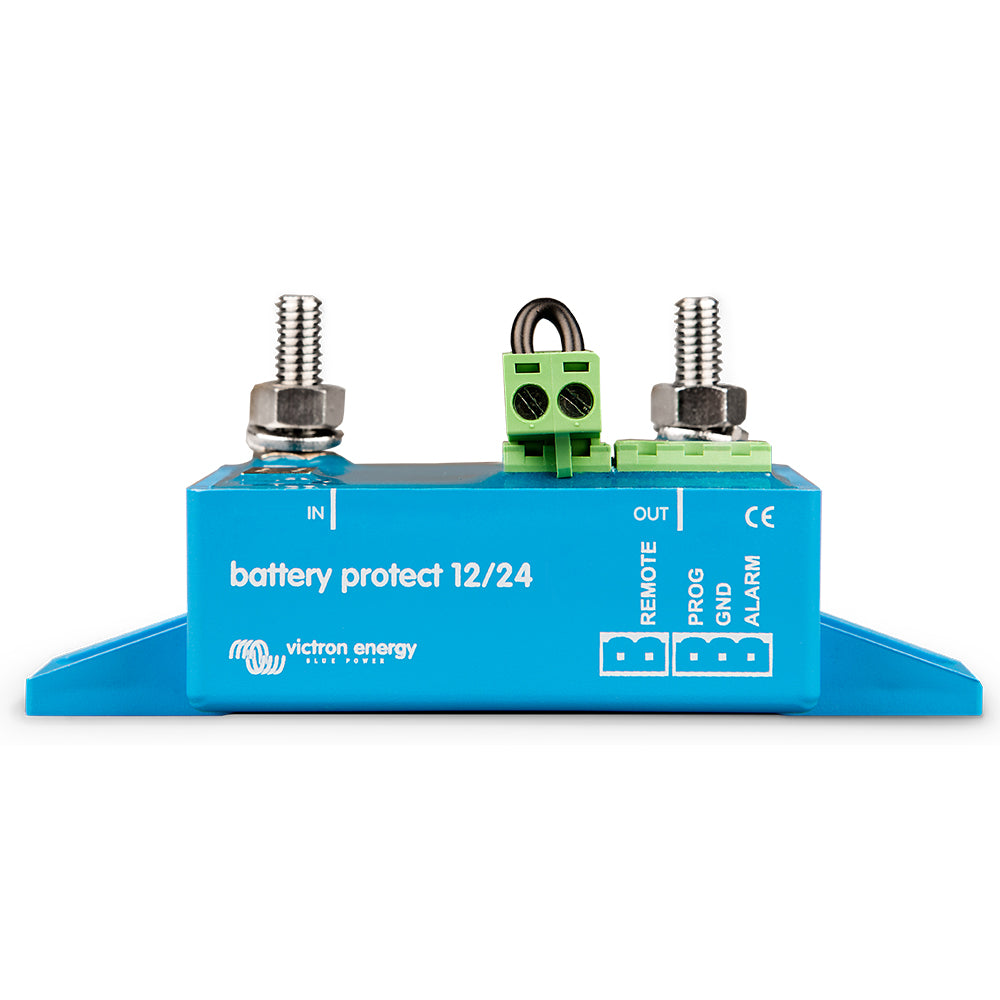

Victron BatteryProtect BP-65 - 65AMP - 6-35 VDC

The BatteryProtect BP-65 is a robust power management solution designed specifically for marine and boating applications. It safeguards your boat’s battery by intelligently disconnecting non-essential loads, ensuring you never run out of power during crucial moments.

Key Features

Automatic Battery Protection

The BatteryProtect BP-65 monitors your battery's charge levels and automatically disconnects non-essential loads before the battery is fully discharged. This prevention mechanism protects your battery from damage and ensures there is always enough power to crank the engine when needed.

12/24V Auto-Ranging

Engineered for versatility, the BatteryProtect BP-65 automatically detects and adapts to your system’s voltage, whether it operates on 12V or 24V. This feature eliminates the need for manual voltage configuration, simplifying installation and setup.

Easy Programming and Customization

Customize the BatteryProtect BP-65 to suit your specific power requirements. You can set the device to engage or disengage at various voltage levels. The integrated seven-segment display clearly indicates the current voltage setting, making adjustments straightforward and user-friendly.

Specialized Li-ion Battery Mode

For boats equipped with Li-ion batteries, the BatteryProtect BP-65 offers a dedicated mode that interfaces seamlessly with the VE.Bus Battery Management System (BMS). Additionally, it can function as a charge interrupter between your battery charger and Li-ion battery, ensuring optimal charging cycles and battery longevity. Refer to the connection diagram in the manual for detailed guidance.

Ultra Low Current Consumption

Designed with energy efficiency in mind, the BatteryProtect BP-65 consumes minimal power, which is particularly beneficial for Li-ion battery systems. This ensures that even after a low voltage shutdown, your battery remains in good health. For more details, consult our Li-ion battery datasheet and the VE.Bus BMS manual.

Over Voltage Protection

Protect your sensitive marine electronics from potential over-voltage damage. The BatteryProtect BP-65 disconnects the load whenever the DC voltage exceeds 16V for 12V systems or 32V for 24V systems, ensuring your equipment remains safe under all conditions.

Ignition Proof Design

Safety is paramount on the water. The BatteryProtect BP-65 utilizes MOSFET switches instead of traditional relays, eliminating the risk of sparks and ensuring ignition-proof operation. This makes it an ideal choice for marine environments where safety cannot be compromised.

Advanced Alarm and Load Management

The BatteryProtect BP-65 features a delayed alarm output that activates if the battery voltage drops below the preset threshold for more than 12 seconds. This prevents false alarms during engine starts. Additionally, the device offers delayed load disconnect and reconnect functionalities:

• Delayed Disconnect: The load is disconnected 90 seconds after the alarm is triggered. If the battery voltage recovers within this period, the load remains connected.
• Delayed Reconnect: The load is reconnected 30 seconds after the battery voltage rises above the preset reconnect voltage.

The alarm output is compatible with various indicators such as buzzers, LEDs, or relays, and is designed to handle up to 50 mA of current.

Specifications

Model	BatteryProtect BP-65
Current Rating	65 AMP
Voltage Range	6-35 VDC
System Compatibility	12V / 24V Auto-Ranging
Battery Type	Compatible with Li-ion Batteries
Protection Features	Over-Voltage, Under-Voltage, Ignition Proof
Alarm Output	Open Collector, 50 mA

Warranty Information

We stand behind the quality of our products. For detailed warranty information, please visit our Warranty Info page.

Safety Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Customer Support

Please contact your dealer for any returns, repairs, or support issues related to this product.

Additional Resources

• Quick Guide (PDF)
• Brochure (PDF)
