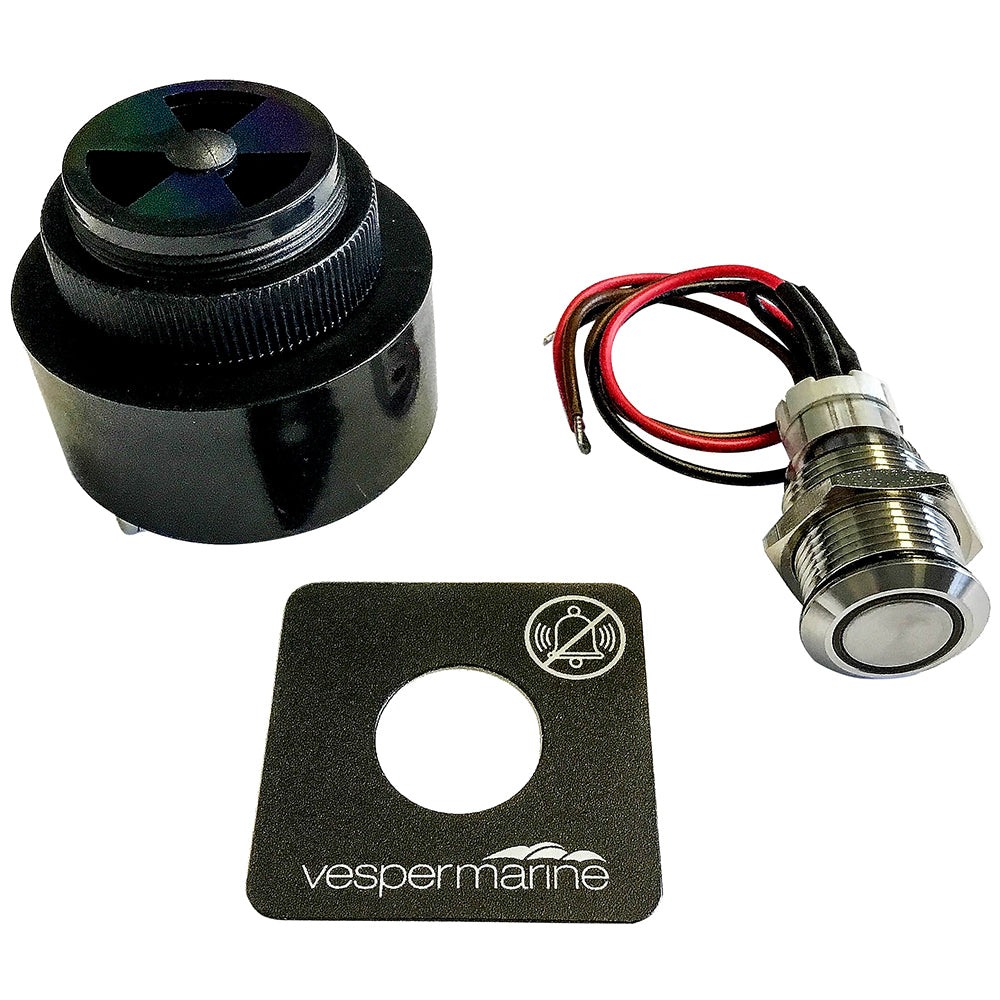

Vesper External smartAIS Alarm Mute Switch Kit f/WatchMate XB-8000

The External smartAIS Alarm & Mute Switch Kit for WatchMate XB-8000 is a crucial safety enhancement for your marine vessel. Engineered to integrate effortlessly with the XB-8000 smartAIS system, this kit ensures you receive immediate alerts for potential collisions, anchor drag, or man overboard (MOB) situations, providing enhanced safety and peace of mind while on the water.

External smartAIS Alarm for WatchMate XB-8000

The WatchMate XB-8000 smartAIS system features the capability to activate an external alarm, which can be conveniently mounted anywhere on your vessel. When the XB-8000 detects a risk such as a potential collision, anchor drag, or MOB activation, it sends an alert to your mobile device and simultaneously triggers the external alarm. This dual-alert system ensures you are notified even if your mobile device is turned off or out of reach.

Installing the alarm is straightforward, as it connects directly to the XB-8000 without requiring additional relays or components. The volume can be easily adjusted by rotating the sound output vane, allowing you to set the alarm level according to your specific needs and environment.

The alarm offers versatile configuration options, enabling you to choose between a steady continuous tone or a pulsing sound similar to a truck backup alarm. Built to withstand marine conditions, the alarm is heavy-duty and highly robust, featuring screw-down terminals and 6.35mm (1/4") quick disconnects for secure and hassle-free connections.

Key Features

• Compatible with 12 and 24 VDC systems
• Reverse polarity protection to prevent wiring damage
• Easy volume adjustment via front vane
• Configurable steady or pulsed tone options
• Heavy-duty construction with robust mounting options
• Quick disconnect terminals for fast installation

Mute Switch for XB-8000

The Mute Switch is an essential accessory for managing your alarm notifications. Constructed from durable 304 stainless steel, it is both waterproof and resilient, making it ideal for mounting either inside your vessel’s cabin or on the exterior. This switch provides a reliable and immediate way to mute the external alarm when necessary, giving you full control over your vessel’s alert systems.

Designed to work seamlessly with both 12 and 24 VDC systems, the Mute Switch integrates effortlessly with the XB-8000 smartAIS system, enhancing the overall functionality and safety of your marine setup.

Mute Switch Features

• 304 stainless steel body for durability
• Waterproof design suitable for marine environments
• Compatible with 12 and 24 VDC systems
• Blue LED indicator for status visibility
• Easy mounting options for flexibility

Technical Specifications

Alarm Specifications

Rated Voltage	12-32 VDC (reverse polarity protected)
Maximum Voltage	32 VDC
Maximum Current	35 mA
Frequency	2.9 kHz (±0.5)
Configuration	Steady or pulsed sound (select S or P terminal)
Sound Pressure	85 dBA steady, 80 dBA pulsed @ 30cm
Volume Adjustment	Twist front vane to adjust volume
Pulse Rate	0.8 - 1.2 pulses/sec
Size	Diameter: 43.5mm (1 3/4") Height: 34.5mm (1 3/8")
Mounting Hole	29mm (1 3/16")

Switch Specifications

Voltage Range	10-32 VDC
LED Color	Blue
Button & Body	304 Stainless Steel
Contact Material	Silver Alloy
Cable Length	150mm (6”) Tinned
Panel Thickness	10mm (0.39")
Operating Temperature	-20°C to +55°C
Insulation Resistance	≥ 1000 MΩ
Contact Resistance	≤ 50 mΩ
Degree of Protection	IP65
