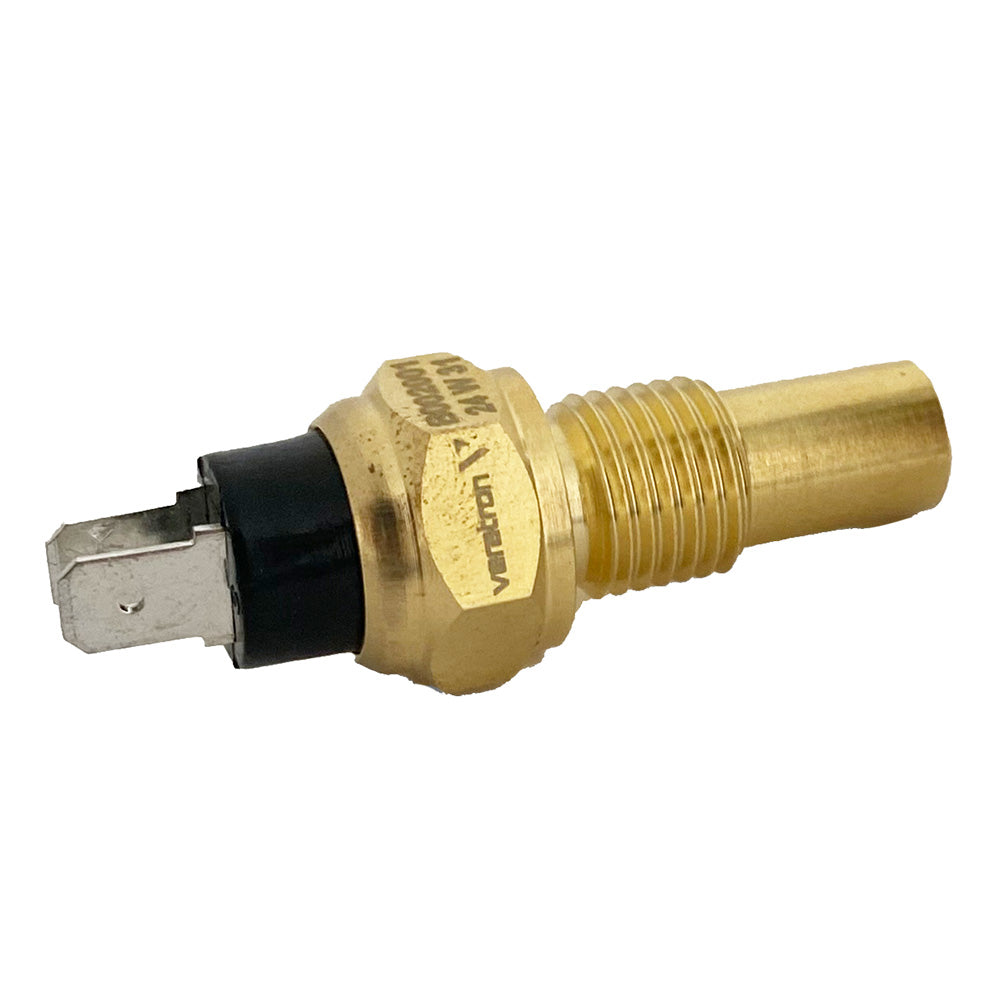

Veratron Water Temperature Sensor - 1/2"-14NPT Thread - 120C Temp Range

Ensure optimal engine performance and safety on your boat with our high-precision Water Temperature Sensor. Specifically designed for marine and boating applications, this sensor reliably monitors oil and coolant temperatures, helping you maintain your vessel’s engine within safe operating limits.

Key Features

• Temperature Range: Up to 120°C (248°F)
• Thread Size: 1/2"-14NPT, compatible with standard marine fittings
• Sensor Length: 28.5mm (1-1/8")
• Output Signals: Resistive, ensuring accurate temperature readings
• Durability: IP67 rated for complete protection against dust and water ingress
• Construction: Robust brass housing for longevity and resistance to corrosion
• Connectivity: Comes with a sensor output and an insulated ground pin, interfaced through metal plate connectors for secure marine-grade connections

Technical Specifications

Specification	Details
Function	Oil Temperature, Coolant Temperature
Length	28.5mm (1-1/8")
Thread	1/2"-14NPT
Calibration	120°C
Measurement Range	Up to 120°C
Output Signals	Resistive
Ingress Protection	IP67
Ground Pin	Insulated

Durable Brass Construction

Built to withstand the harsh marine environment, our Water Temperature Sensor features a sturdy brass housing. This material not only ensures durability but also provides excellent resistance against corrosion caused by saltwater exposure, making it ideal for long-term use on boats and marine engines.

Easy Installation

Designed with convenience in mind, the sensor's 1/2"-14NPT thread size allows for straightforward installation onto standard marine fittings. The included sensor output and insulated ground pin facilitate secure and reliable connections through metal plate connectors, minimizing the risk of electrical issues in your engine’s cooling system.

Versatile Applications in Marine Settings

Whether you’re monitoring engine oil temperatures or coolant levels, this sensor is versatile enough to meet various marine applications. From recreational boats to commercial vessels, our Water Temperature Sensor provides accurate and timely temperature data, helping you prevent overheating and maintain engine efficiency.

Additional Resources

For detailed installation instructions and operational guidance, please refer to our Quick Guide (PDF).
