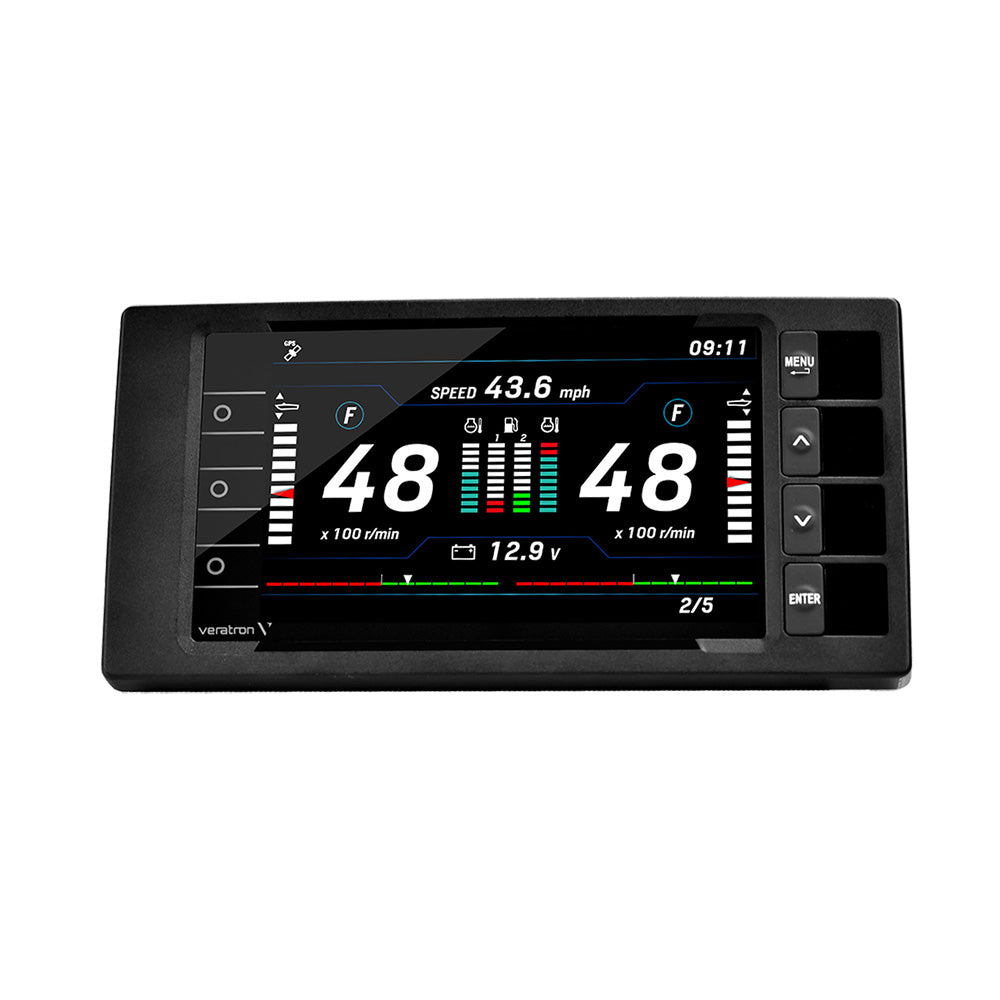

Veratron OceanLink 7" NMEA 2000 Certified TFT Gateway - Black

The OceanLink® 7" NMEA 2000® Certified TFT Gateway in sleek black is a state-of-the-art multifunction display designed for marine and boating applications. Featuring a vibrant 24-bit color optically bonded screen, it ensures clear visibility under direct sunlight while seamlessly integrating data from NMEA 2000® and J1939 CAN Bus systems, as well as analog sensors. Customize up to 40 data pages with flexible grid layouts to suit your navigation and monitoring needs.

Key Features

• Responsive touch screen functionality for easy operation
• Optically bonded mineral glass lens for enhanced durability and clarity
• IPX7 rating for front and rear protection against water and dust
• Seamless integration with NMEA 2000® and J1939 CAN Bus systems
• Daisy-chain capability with other OceanLink® gauges, displays, or NavControls via VDO Marine Bus or NMEA 2000® backbone (optional adapter cable required)
• Wide range of input and output options:
  • 1x NMEA 2000® connector
  • 2x J1939
  • 6x Analog inputs
  • 2x Frequency inputs
  • 2x 4–20 mA inputs
  • 3x Digital inputs or 0–5 V
  • 2x Alarm outputs
  • 2x Video inputs
  • 2x EasyLink data outputs
  • 2x Programmable alarm outputs (500 mA)
• Operating temperature range from -20°C to +70°C
• Compatible with 12V and 24V electrical systems

Specifications

Instrument Function	Multifunction
Screen Size	7"
Shape	Rectangular
Transducer Type	Not Included
Box Dimensions	4"H x 8"W x 12"L
Weight	3.35 lbs
UPC	7640178724457

Important Information

WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Documentation

• Quick Guide (PDF)
• Owner's Manual (PDF)
