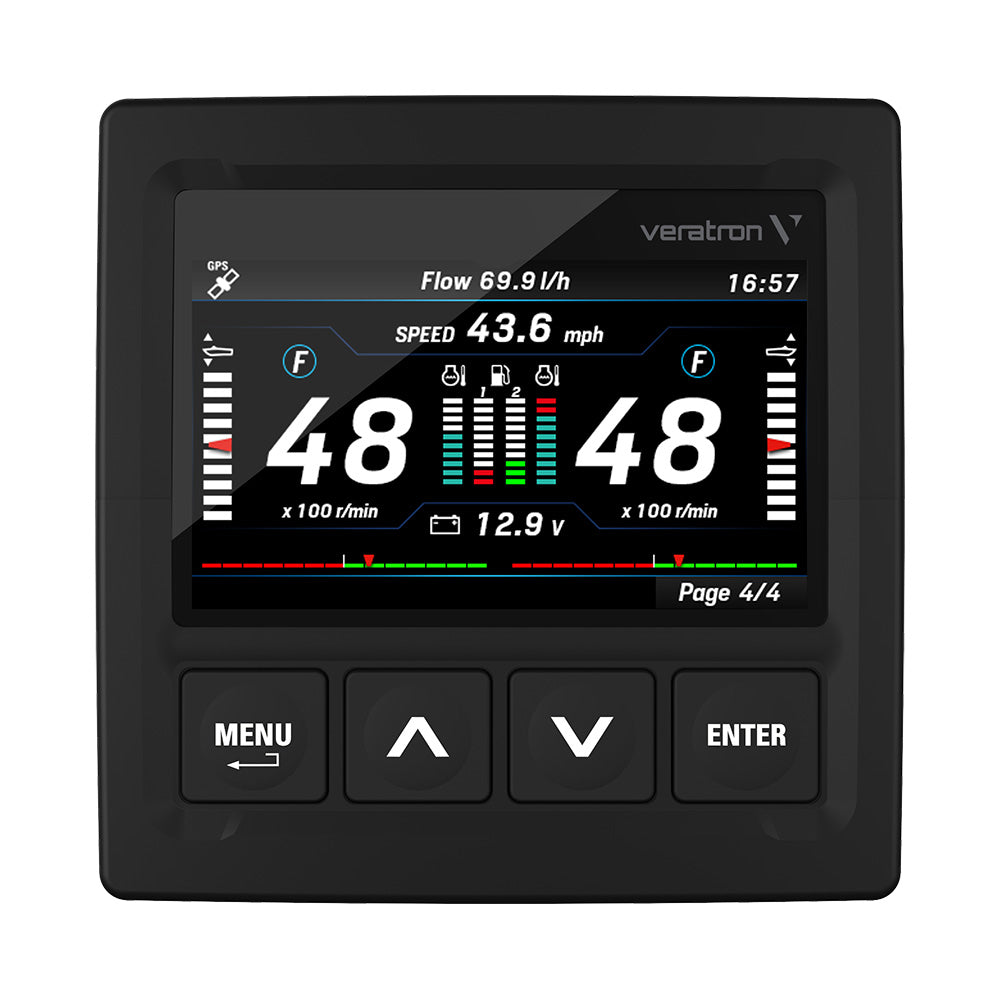

Veratron OceanLink 4.3" NMEA 2000 Certified TFT Gateway - Black

The OceanLink® 4.3" NMEA 2000® Certified TFT Gateway in sleek black is the ultimate multifunction display for marine enthusiasts. Designed for optimal visibility and seamless integration, this advanced TFT display ensures you have all the critical data you need at your fingertips, even in the brightest sunlight.

Exceptional Display Technology

Equipped with a 4.3-inch 24-bit color TFT display, the OceanLink® Gateway offers vibrant and clear visuals. The optically bonded mineral glass lens with transmissive layer technology guarantees perfect readability in direct sunlight, making it ideal for any marine environment.

Seamless Connectivity

Stay connected with multiple data sources through the OceanLink® Gateway. It supports:

• NMEA 2000®® connections for comprehensive marine networking
• J1939 CAN Bus systems for robust vehicle communication
• Analog sensors for customizable data inputs

This flexibility allows you to monitor and manage a wide array of data from your vessel’s various systems with ease.

Customizable Data Management

Personalize your monitoring experience by creating up to 40 data pages. Choose from single, double, treble, or quad grid layouts to display the information that matters most to you. Whether tracking engine performance, navigation metrics, or environmental conditions, the OceanLink® Gateway adapts to your needs.

Expandable and Easy to Install

The OceanLink® Gateway can be daisy-chained with other OceanLink® gauges, displays, or NavControls using the unique VDO Marine Bus. Alternatively, connect directly to the NMEA 2000® backbone with an optional adapter cable for straightforward installation on any yacht. This versatility ensures a hassle-free setup tailored to your vessel’s requirements.

Key Features

Feature	Description
Display	4.3" 24-bit color TFT with optically bonded mineral glass
Protection	IPX7 rating for front and rear sides
Connectors	1x NMEA 2000®, 1x J1939, 2x Analog inputs, 1x Frequency input
Outputs	2x 4–20 mA, 1x EasyLink data, 1x Programmable alarm (500 mA)
Operating Temperature	-20°C to +70°C
Power Supply	12/24V

Technical Specifications

Specification	Details
Screen Size	4.3"
Shape	Square
Instrument Function	Multifunction
Box Dimensions	4"H x 6"W x 6"L
Weight	1.7 lbs
UPC	7640178720930

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Please note: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any issues or concerns.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
