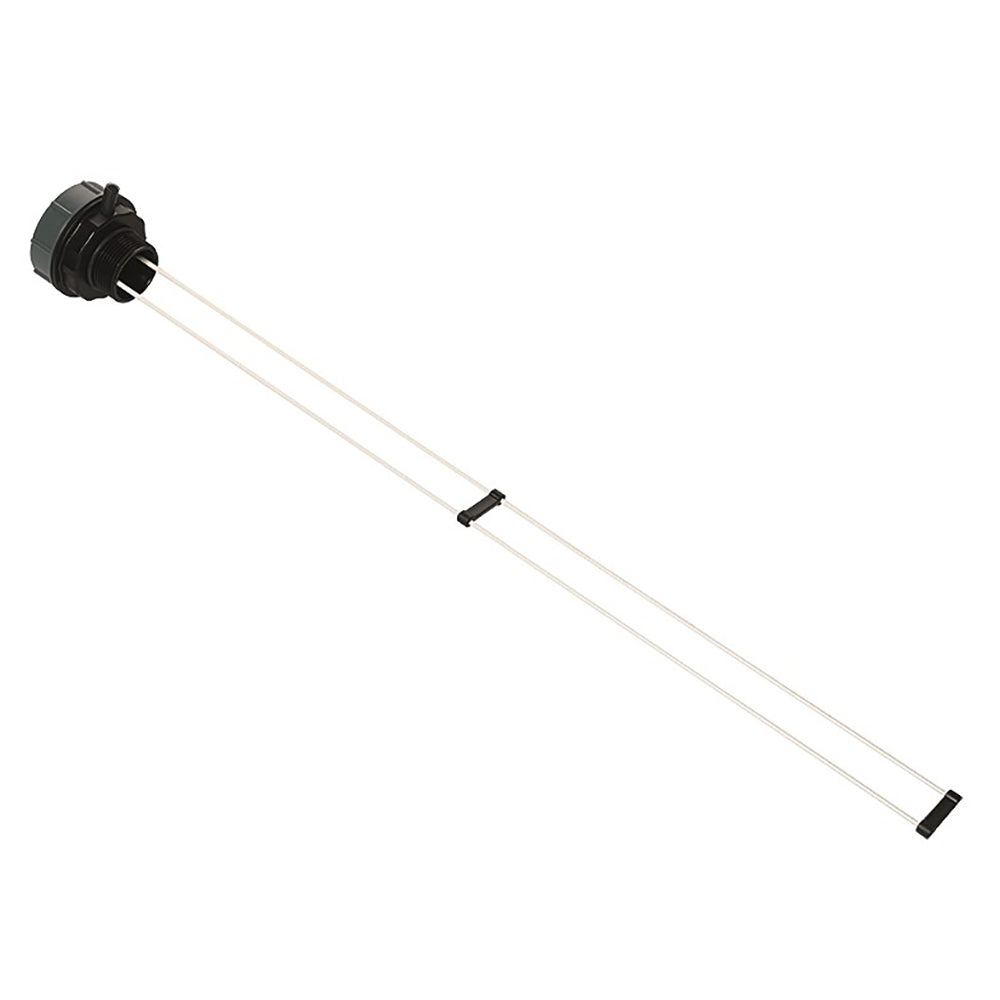

Veratron NMEA 2000 Liquid Level Sensor - 200 to 600mm

The Veratron NMEA 2000 Liquid Level Sensor is a cutting-edge solution for precise fluid level monitoring in marine and boating applications. Designed to seamlessly integrate with your vessel's NMEA 2000 network, this sensor ensures reliable performance and accurate measurements for various tank sizes and types.

Advanced Liquid Level Monitoring

The Veratron Liquid Level Sensor addresses common challenges associated with traditional fluid level monitoring systems. It is the first in the industry to be certified for drinking water, ensuring safety and compliance for marine applications. Available in three models, it supports tank depths ranging from 200 mm to 1500 mm, making it versatile for different vessel requirements.

Key Features

• Certified for drinking water, ensuring safe and reliable monitoring
• Supports tank depths from 200 mm to 1500 mm with three available models
• Capacitive sensing technology provides linear level measurements for enhanced accuracy
• Selectable between fresh and waste water applications
• Micro-adjustable settings to accommodate various tank sizes
• Capable of monitoring up to 4 tanks simultaneously
• Plug-and-play installation with integrated Micro-C M12 5-pin connector
• IPX9K rated, making it suitable for exposed marine environments
• UL94, CE, REACH, and RoHS compliant for quality and safety

Technical Specifications

Connector	NMEA 2000 Micro-C 5 pin M12 Male
IP Protection Class	IPX9K
Color	Silver
Box Dimensions	4"H x 4"W x 30"L
Weight	1.45 lbs
UPC	7640178729384

What’s Included

• Liquid Level Sensor
• Sealing Kit
• Rubber Gasket
• Mounting Bracket
• Mounting Screws and Allen Wrench

Note: Sold as an individual unit.

Easy Installation and Integration

Installing the Veratron NMEA 2000 Liquid Level Sensor is straightforward and hassle-free. The included flange installation kit and 300mm NMEA pigtail connection ensure a secure and reliable setup. The sensor connects directly to the NMEA backbone, providing nominal 12V power and enabling tank level data to be accessed from any networked display on your vessel.

Reliable Performance in Marine Environments

Designed to withstand the harsh conditions of marine environments, the Veratron sensor boasts an IPX9K rating, ensuring it remains protected against high-pressure water jets and extreme weather. Its robust construction and compliance with industry standards like UL94, CE, REACH, and RoHS guarantee long-lasting performance and safety.
