Veratron NavBox Electronic Control Unit
Veratron NavBox Electronic Control Unit is backordered and will ship as soon as it is back in stock.
Product Description
Product Description

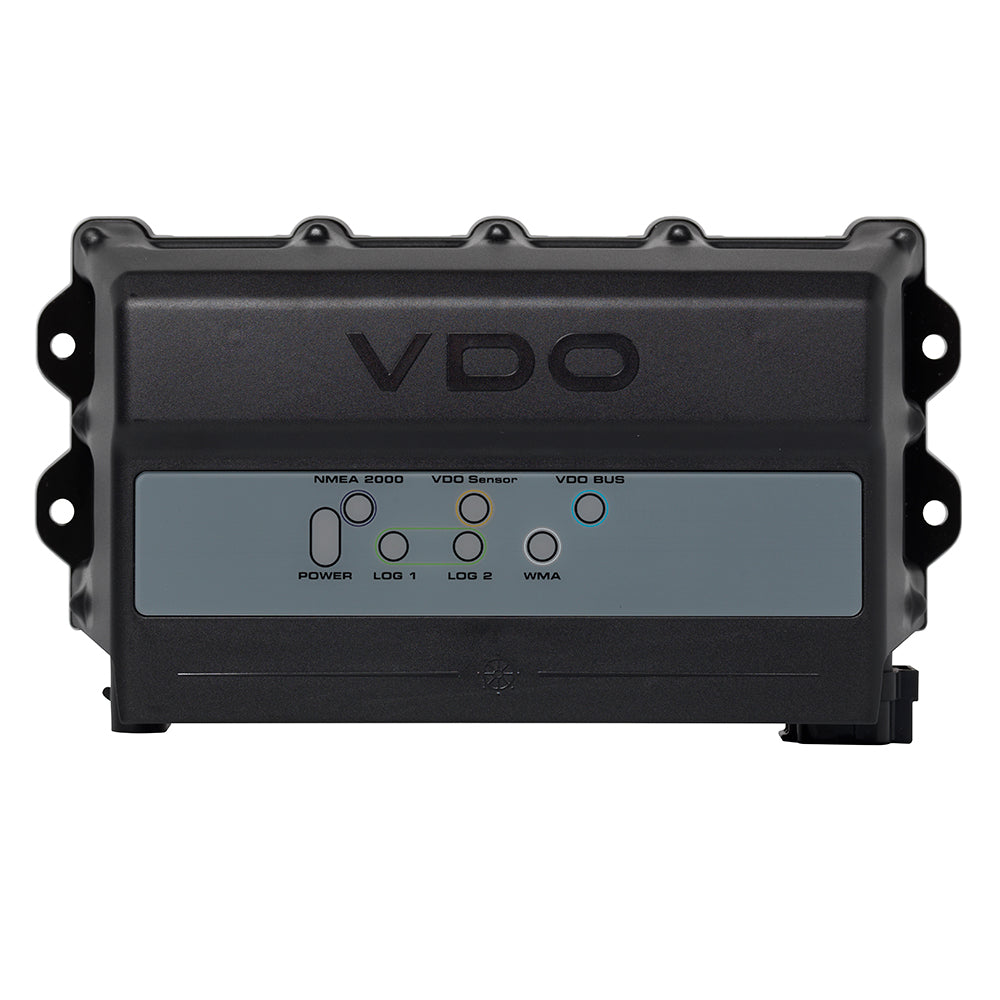

The AcquaLink® NavBox Electronic Control Unit is the central hub of the AcquaLink® VDO Marine system, designed to seamlessly integrate and manage your boat's electronic components. Acting as both CPU and signal interface, the NavBox offers extensive connectivity and smart data handling to enhance your marine experience.
Key Features
- Supports up to four electronic engines via J1939 or NMEA 2000® interfaces, or one analog engine
- Compatible with two VDO Marine Sumlog® paddle wheel sensors and one analog VDO Marine Windsensor
- Integrates legacy VDO Marine products into modern digital systems
- NMEA 0183 input and output ports with buzzer output for enhanced connectivity
- Dual gateway functionality for NMEA 2000® network and VDO Marine Bus
Comprehensive Data Monitoring
The NavBox Electronic Control Unit is equipped to monitor a wide range of vital vessel parameters through its analog and digital inputs:
| Analog Inputs | Description |
|---|---|
| Engine Oil Pressure | Monitors the pressure in the engine's oil system to ensure optimal lubrication. |
| Engine Oil Temperature | Tracks the temperature of the engine oil to prevent overheating. |
| Engine Coolant Temperature | Keeps tabs on the engine's coolant temperature for efficient cooling. |
| Transmission Oil Pressure | Ensures proper pressure in the transmission system for smooth operations. |
| Fuel and Water Levels | Displays levels for fresh water, waste water, and fuel to manage resources effectively. |
| Voltage | Monitors the electrical system's voltage to maintain power stability. |
| Rudder Angle | Tracks the position of the rudder for precise steering control. |
| Engine Frequency | Measures the frequency of the engine's operation for performance monitoring. |
| Battery Current | Monitors the current flow in the battery system to prevent drain or overload. |
| Pyrometer | Tracks temperature readings for various engine components. |
Seamless Integration and Connectivity
The NavBox effortlessly connects with other marine electronics, featuring:
- NMEA 0183 input and output ports
- Buzzer output for alerts and notifications
- Gateway functionality to relay data to NMEA 2000® networks and VDO Marine Bus
- Compatibility with any NMEA 2000® display or VDO Marine AcquaLink® gauges and TFT displays
Easy Configuration and Setup
Setting up the NavBox is straightforward with multiple configuration options:
- Configure using an AcquaLink® TFT and NavControl
- Use the intuitive VDO Marine diagnostic tool for hassle-free setup
Durable and Reliable Design
- Reverse polarity protection ensures the unit is safe from electrical mishaps
- NMEA 2000® certified for compatibility and reliability
- LED signal status indicators provide at-a-glance monitoring
- Robust aluminum base plate for durability in marine environments
- IPX4 rating for front and rear side protection against splashes

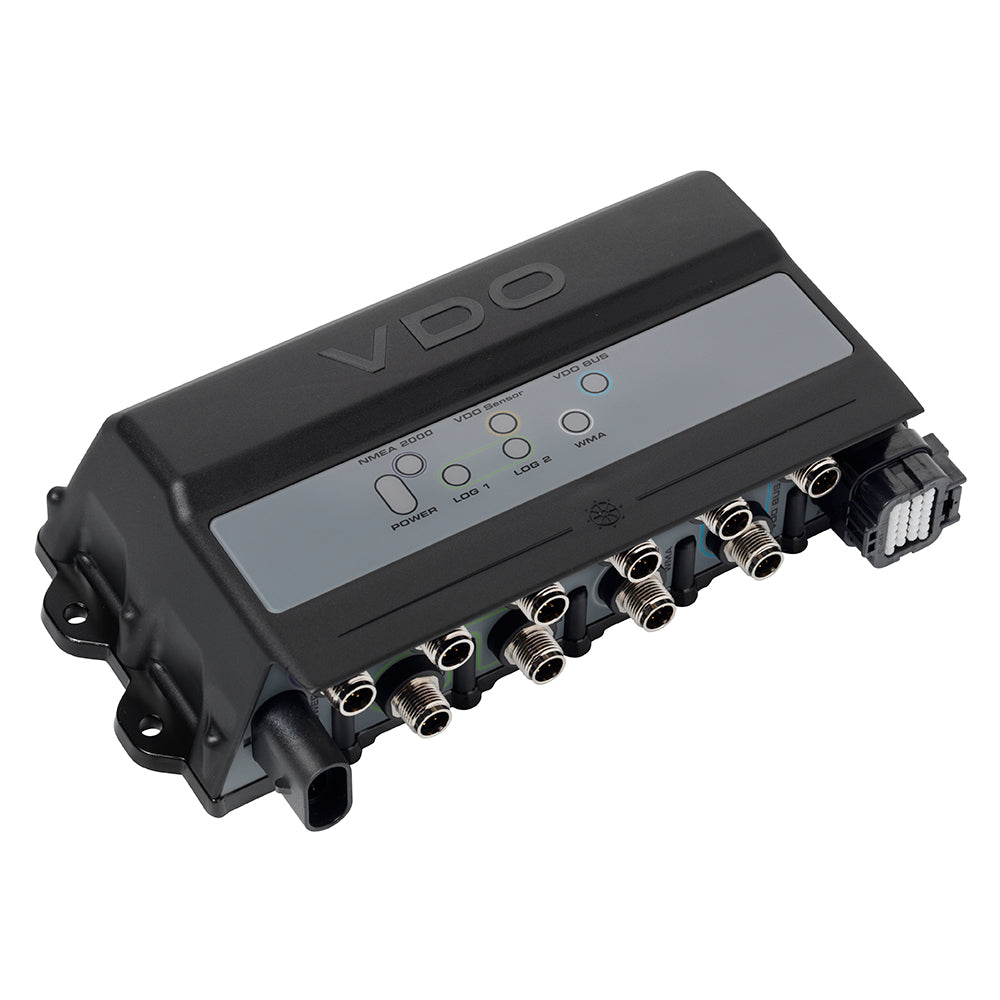

- Multiple bus lines and inputs including:
- 3x VDO Marine bus lines
- 1x J1939 CAN bus
- 1x NMEA 2000® bus
- 1x VDO Marine Analog Wind Sensor Input
- 2x VDO Marine Sumlog® Inputs
- AMP Super Seal power input
- 26 pin AUX input supporting analog signals and NMEA 0183
- Operating temperature range from -20°C to +70°C to withstand various marine climates
