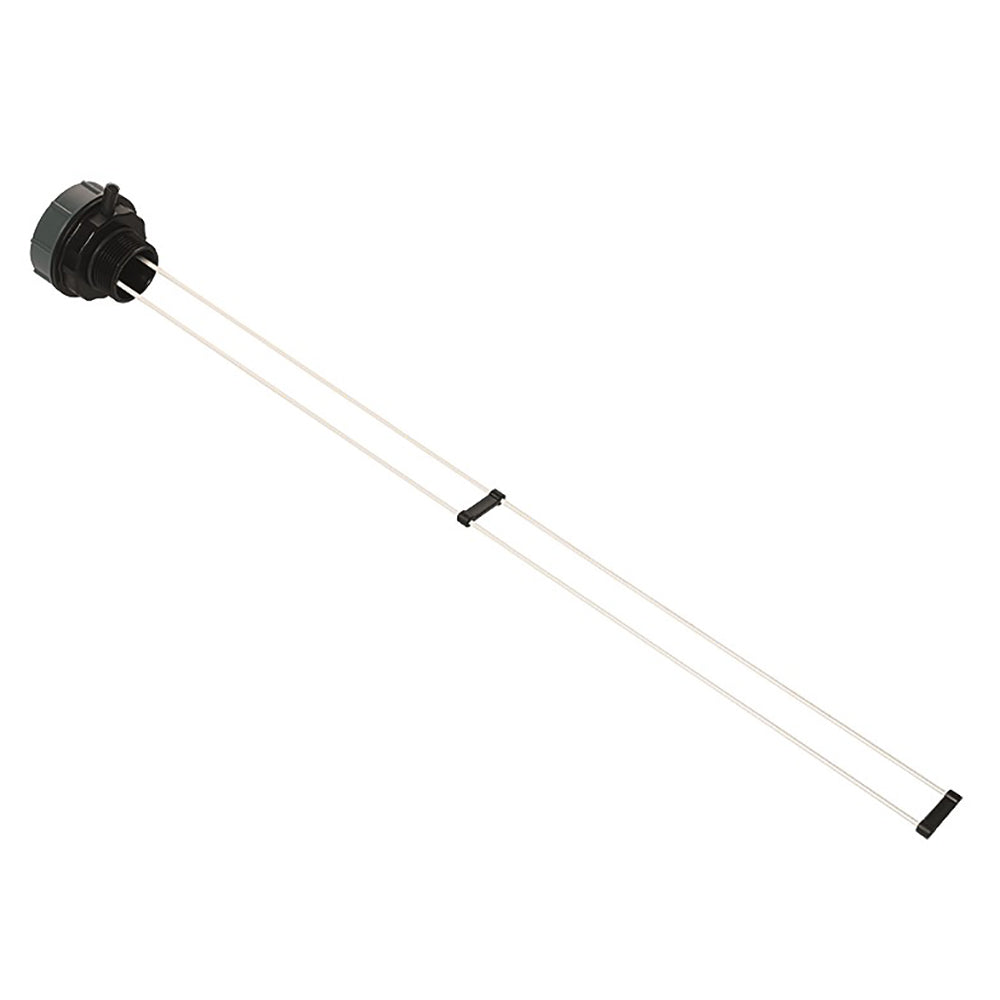

Veratron Marine NMEA 2000 Liquid Level Sensor - 1200 to 1500mm

The NMEA 2000 Liquid Level Sensor is the ultimate solution for marine and boating enthusiasts seeking precise and reliable fluid level monitoring. Engineered for seamless integration with your vessel's network, this sensor ensures accurate measurements for efficient tank management.

Product Overview

The NMEA 2000® Liquid Level Sensor revolutionizes fluid level monitoring on boats by addressing common issues found in traditional systems. As the first sensor in the industry certified for drinking water, it guarantees safety and reliability for marine applications. Available in three models, it accommodates a wide range of tank depths from 200 mm to 1500 mm, making it suitable for various vessel sizes and configurations.

Advanced Features

• Capacitive Sensing Technology: Provides precise and linear level measurements across the entire range, unlike traditional reed technology.
• Versatile Fluid Selection: Easily switch between fresh water and waste water applications to suit your boating needs.
• Micro-Adjustable Settings: Customize the sensor for different tank sizes, ensuring optimal performance.
• Multi-Tank Monitoring: Capable of monitoring up to four tanks simultaneously, enhancing your vessel's management capabilities.
• Plug-and-Play Installation: Features an integrated Micro-C M12 5-pin NMEA 2000 connector for easy connection to your network backbone.
• Robust Certifications: Complies with UL94, CE, REACH, and RoHS standards, ensuring quality and safety.
• Marine-Grade Durability: IPX9K rated for high-level water resistance, making it ideal for harsh marine environments.

Technical Specifications

Connector	NMEA 2000 Micro-C 5 pin M12 Male
IP Protection Class	IPX9K
Color	Silver
Box Dimensions	4"H x 4"W x 67"L
Weight	2.7 lbs
UPC	7640178729407

What's Included

• Liquid Level Sensor
• Sealing Kit
• Rubber Gasket
• Mounting Bracket
• Mounting Screws and Allen Wrench

Easy Installation

The NMEA 2000 Liquid Level Sensor comes complete with a Flange Installation Kit and a 300mm NMEA pigtail connection, ensuring a straightforward and secure setup on your vessel. Simply connect the sensor to your NMEA 2000 backbone, and you'll be able to view tank levels from any compatible networked display, enhancing your boat's monitoring capabilities.

Product Video

Note: This product is sold individually and cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.
