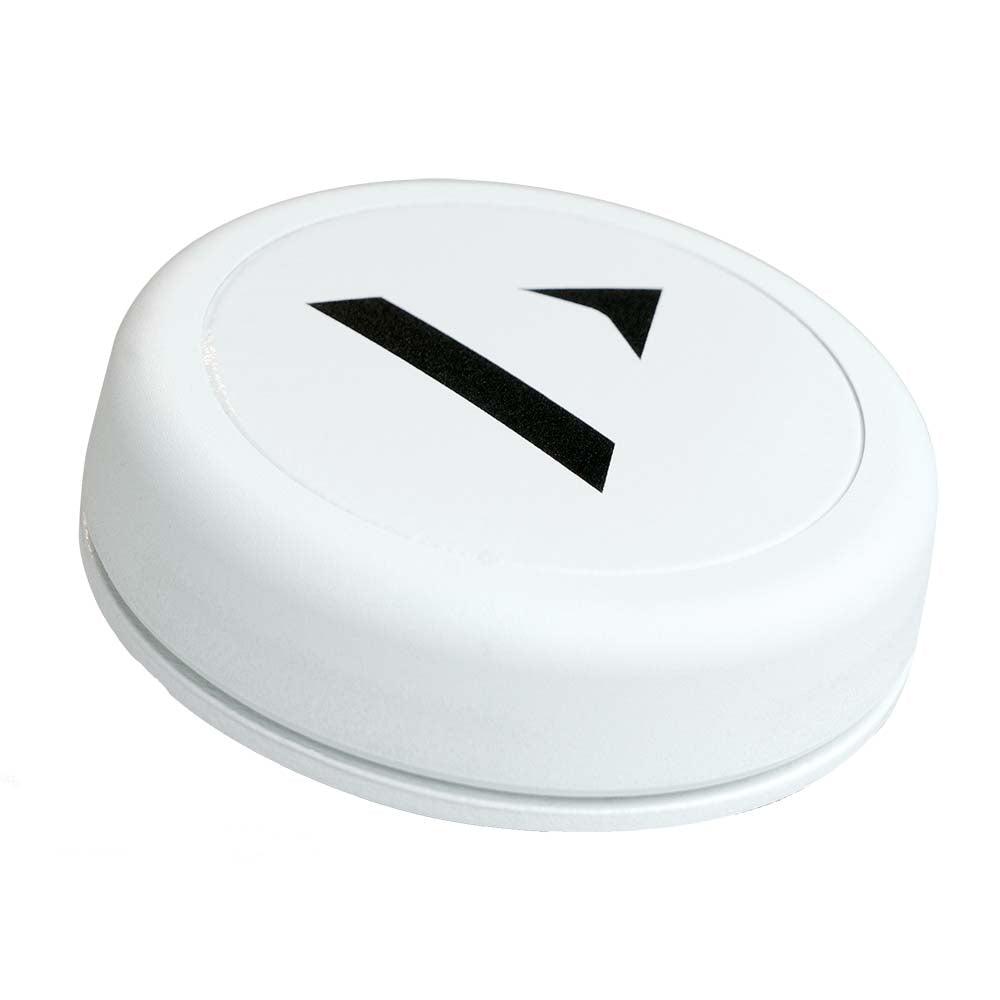

Veratron GO GPS PLUS Receiver

The GO GPS Plus Receiver from Veratron puts all your boat’s essential data right at your fingertips. Certified with NMEA 2000®, this compact and rugged receiver features an integrated GPS/GLONASS/GALILEO system, ensuring reliable performance even in harsh marine environments. Its ease of installation and minimal size make it one of the smallest GPS receivers available, perfectly suited for any vessel.

Advanced Connectivity

The Veratron GO GPS Receiver seamlessly integrates with Veratron Go Data, providing comprehensive data management for your vessel. The "Plus+" variant enhances this functionality with a Bluetooth Low Energy interface, allowing you to visualize and monitor all your boat’s data on your smartphone or tablet, ensuring you stay connected no matter where you are on the water.

Key Features

• 72-channel receiver for precise positioning
• Quick cold-start position fix within 26 seconds
• Compatibility with OceanLink 52MM Bezels for versatile installation
• High update rate of up to 10Hz for real-time data
• Supports up to 3 concurrent GNSS systems: GPS, GLONASS, and GALILEO
• SBAS support including WAAS, EGNOS, MSAS, and GAGAN for enhanced accuracy
• Transmits NMEA 2000 standard PGNs for position, time, speed, and heading
• Front-end SAW band-pass filter to reduce electrical noise interference
• Interchangeable bezel option for customized aesthetics

Technical Specifications

Specification	Details
Update Rate	Up to 10Hz using concurrent GNSS, up to 18Hz using single GNSS
Position Fix Time	26 seconds cold-start, 1 second hot start
Tracking Sensitivity	-165dBm
Position Accuracy	±2.5 meters
Velocity Accuracy	±0.05 m/s
Heading Accuracy	±0.3°
Water Resistance	IPX7 rating
Dimensions (D x H)	60.7 mm x 18.9 mm
Power Source	NMEA 2000 backbone (12V nominal voltage), no external power required
Power Consumption	100mA (2 LEN) operational, 150mA (3 LEN) during startup

What's Included

• GO GPS Plus Receiver
• Instruction Manual

Note: This product is sold individually and cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

Additional Specifications

• Color: White
• Diameter: 60.7 mm
• Box Dimensions: 3"H x 3"W x 4"L
• Weight: 0.5 lbs
• UPC: 7640178729445

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)

Product Overview Video
