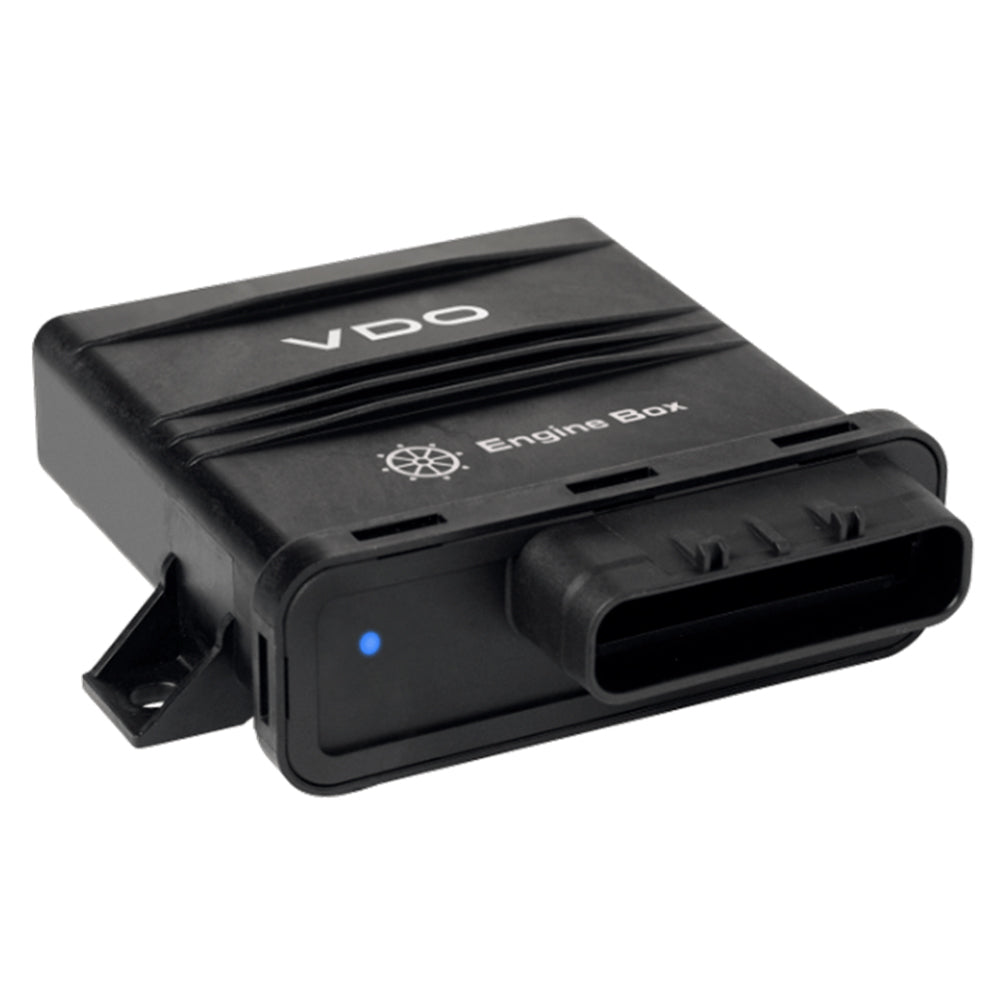

Veratron EngineBox - Single Engine

The EngineBox Single Engine is a versatile solution for marine applications, expanding the capabilities of your NavBox for multi-engine setups or functioning independently when navigation data integration isn't needed. Designed with both modern and traditional engines in mind, it seamlessly connects using NMEA 2000® and J1939 CAN ports, as well as analog input ports for RPM, resistive, and capacitive sensors.

Configuration and Installation

Setting up the EngineBox is straightforward with our intuitive PC configuration tool, provided free of charge. This tool simplifies programming the inputs, ensuring a hassle-free installation process. Additionally, the EngineBox is ISO 8846:1990 compliant, making it suitable for direct installation in engine compartments. For configuration, the Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software are required.

Features

• Seamless Integration: Acts as an analog to NMEA 2000® gateway and J1939 to NMEA 2000® gateway.
• Flexible Configurations: Available in single engine and dual engine models to suit your marine setup.
• Compact Design: Space-saving form factor ideal for marine engine compartments.
• Durable Indicators: Equipped with status LEDs for easy monitoring.
• Wide Operating Temperature Range: Functions reliably between -40°C and +85°C.

Technical Specifications

Specification	Single Engine Model	Dual Engine Model
Communication Ports	1x J1939	2x J1939
NMEA 2000® Connection	1x M12 5 pins	1x M12 5 pins
RPM Inputs	1x 0–4 kHz	2x 0–4 kHz
Resistance Inputs	4x 0–400 Ohm	8x 0–400 Ohm
Current Inputs	2x 4–20 mA	2x 4–20 mA
Voltage Inputs	1x 0–5 V	2x 0–5 V

What's Included

• Engine Cable
• Cable Harness
• Safety Instructions

*Sold individually

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Specifications

• Voltage - Input Range: 8-16V
• Gauge Type: Multifunction
• Gauge Size: N/A
• Box Set: No
• Box Dimensions: 4"H x 6"W x 6"L
• Weight: 1.35 lbs
• UPC: 7640178724426

Download the Brochure (PDF)
