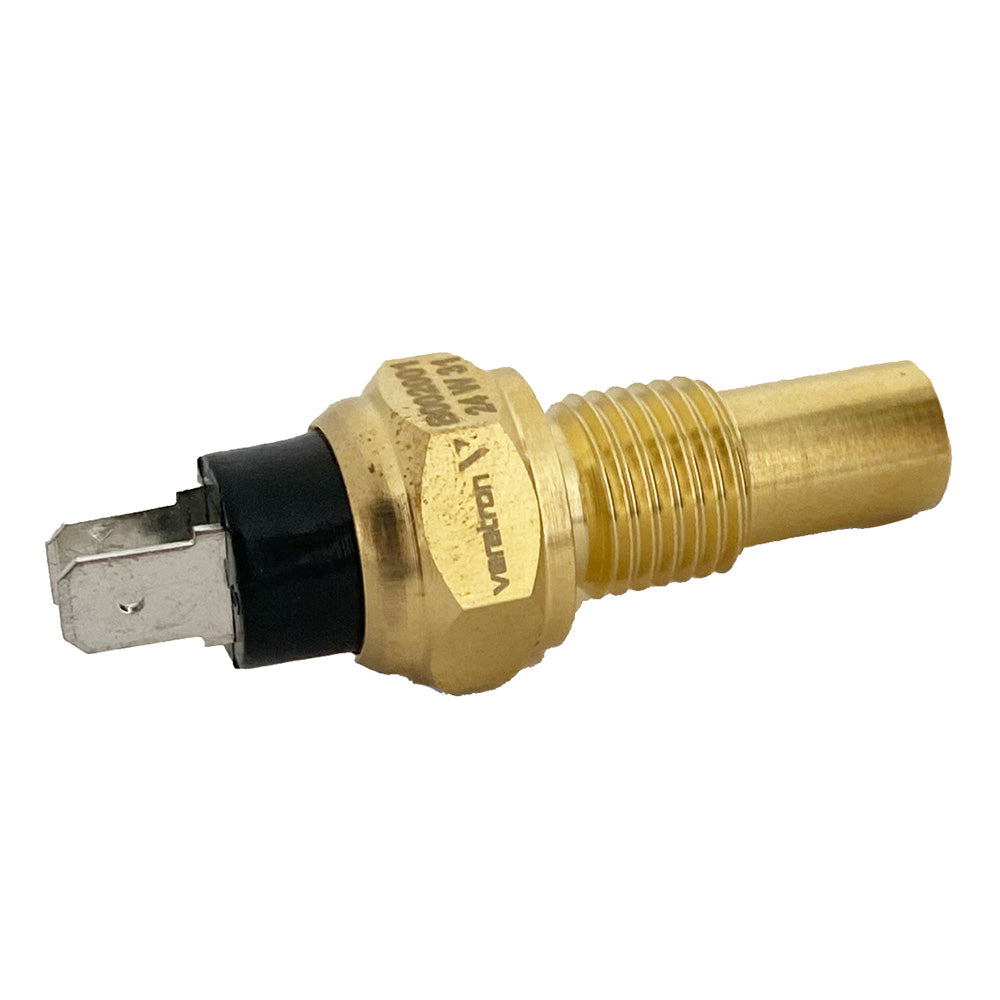

Veratron Engine Oil Temperature Sensor - 1/2"-14NPT Thread - 150C Temp Range

Ensure the optimal performance and reliability of your marine engine with our high-quality Engine Oil Temperature Sensor. Designed specifically for the demanding conditions of boating, this sensor provides accurate temperature readings to help you monitor and maintain your engine's health effectively.

Product Overview

Our Engine Oil Temperature Sensor is engineered with a durable brass housing, making it ideal for marine applications where corrosion resistance is crucial. The sensor features a reliable resistive output and an insulated ground pin, ensuring secure and stable connections through metal plate connectors. Whether you're navigating open waters or cruising close to shore, this sensor delivers precise temperature measurements to keep your engine running smoothly.

Key Features

• Function: Monitors oil temperature and coolant temperature
• Length: 28.5mm (1-1/8")
• Thread: 1/2"-14NPT
• Calibration: 150°C
• Measurement Range: Up to 150°C
• Output Signals: Resistive
• Ingress Protection: IP67 rated for waterproof performance
• Ground Connection: Includes an insulated ground pin for secure installation

Technical Specifications

Specification	Details
Function	Oil temperature, coolant temperature
Length	28.5mm (1-1/8")
Thread	1/2"-14NPT
Calibration	150°C
Measurement Range	Up to 150°C
Output Signals	Resistive
Ingress Protection	IP67
Ground Connection	Insulated ground pin included

Installation and Use

Installing the Engine Oil Temperature Sensor is straightforward with its standardized 1/2"-14NPT thread, allowing for easy integration into your marine engine system. The sensor's brass housing ensures durability against saltwater corrosion, while the IP67 rating guarantees waterproof performance. Connect the sensor output and insulated ground pin through the provided metal plate connectors for a secure and reliable setup.

Additional Resources

Download the Quick Guide (PDF)
