Veratron Deep-Pipe Level Sender - 700mm - 0 to 180 OHM

The Deep-Pipe Level Sender is an essential component for accurately monitoring fuel levels in marine and boating applications. Designed with durability and precision in mind, this sensor ensures reliable performance even in challenging sea conditions.

Product Overview

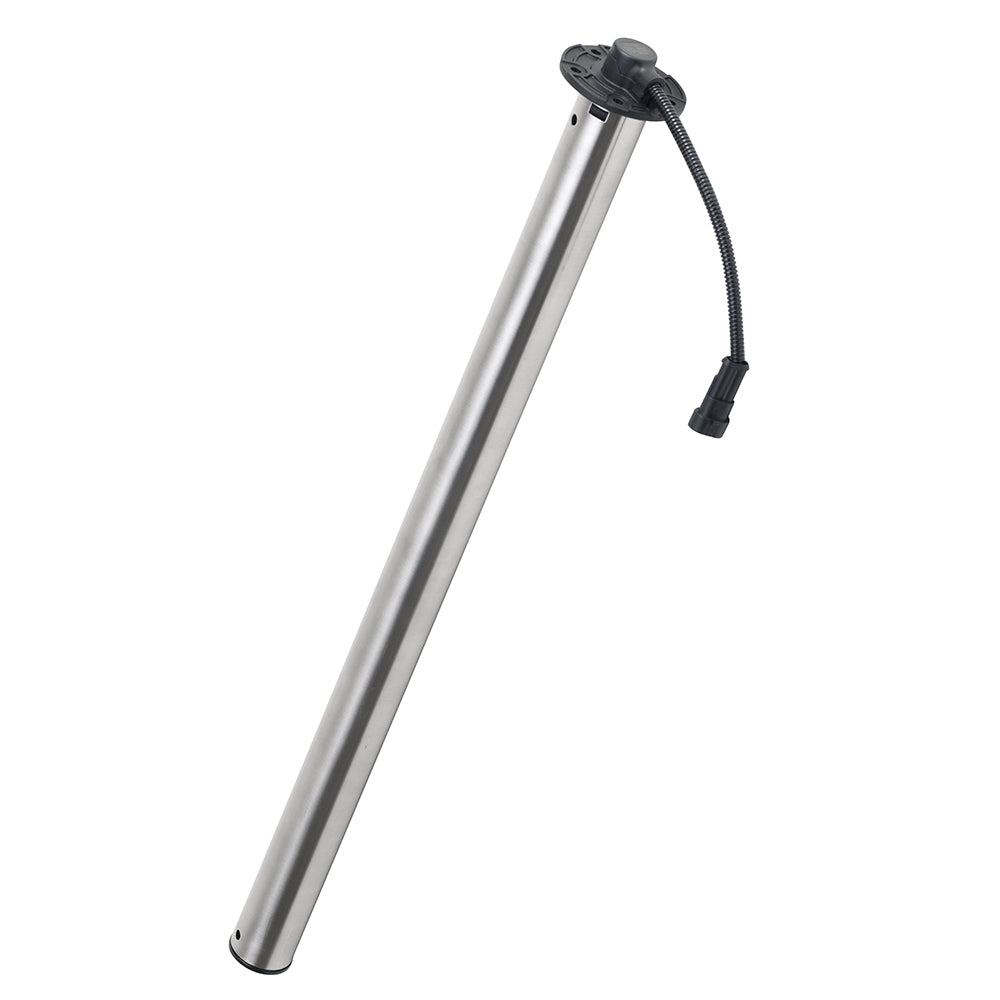

The Deep-Pipe Level Sender features a robust 38 mm diameter vertical stainless steel tube equipped with a float mechanism that precisely measures liquid levels within your fuel tank. Engineered to maintain stability, the sensor includes strategically placed small holes at both the top and bottom of the tube. These act as baffles, minimizing fuel sloshing and ensuring consistent float positioning regardless of sea state.

Key Features

• Stainless steel tubular sensor for enhanced durability
• Compatible with various fuels including Oil, Petroleum, Diesel, and Gasoline, as well as water
• Available in multiple lengths from 150 mm to 1200 mm to suit different tank sizes
• 700 mm length option ensures precise measurement
• Compact design with a flange for easy installation
• Analog communication for straightforward integration with existing systems

Technical Specifications

Specification	Details
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm in length
Signal Range	0 to 180 OHM
Protection Rating	IP67
Communication	Analog

What's Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Installation and Compatibility

The Deep-Pipe Level Sender is designed for straightforward installation in various fuel tank configurations. Ensure the sensor length selected leaves at least a 4 mm gap from the base of the fuel tank after installation. Compatible with tanks ranging from small boats to larger marine vessels, this sensor guarantees accurate fuel level readings in any marine environment.

Product Specifications

• Color: Silver
• Box Dimensions: 4"H x 5"W x 30"L
• Weight: 2.25 lbs
• UPC: 7640178725676

Note: This product is sold individually. It may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
