Veratron Deep-Pipe Level Sender - 490mm - 240 to 33 OHM

Ensure precise fuel level monitoring on your vessel with our Deep-Pipe Level Sender. Designed specifically for marine and boating applications, this robust sensor delivers reliable measurements even in the most challenging sea conditions, helping you maintain optimal fuel management and safety on board.

Product Overview

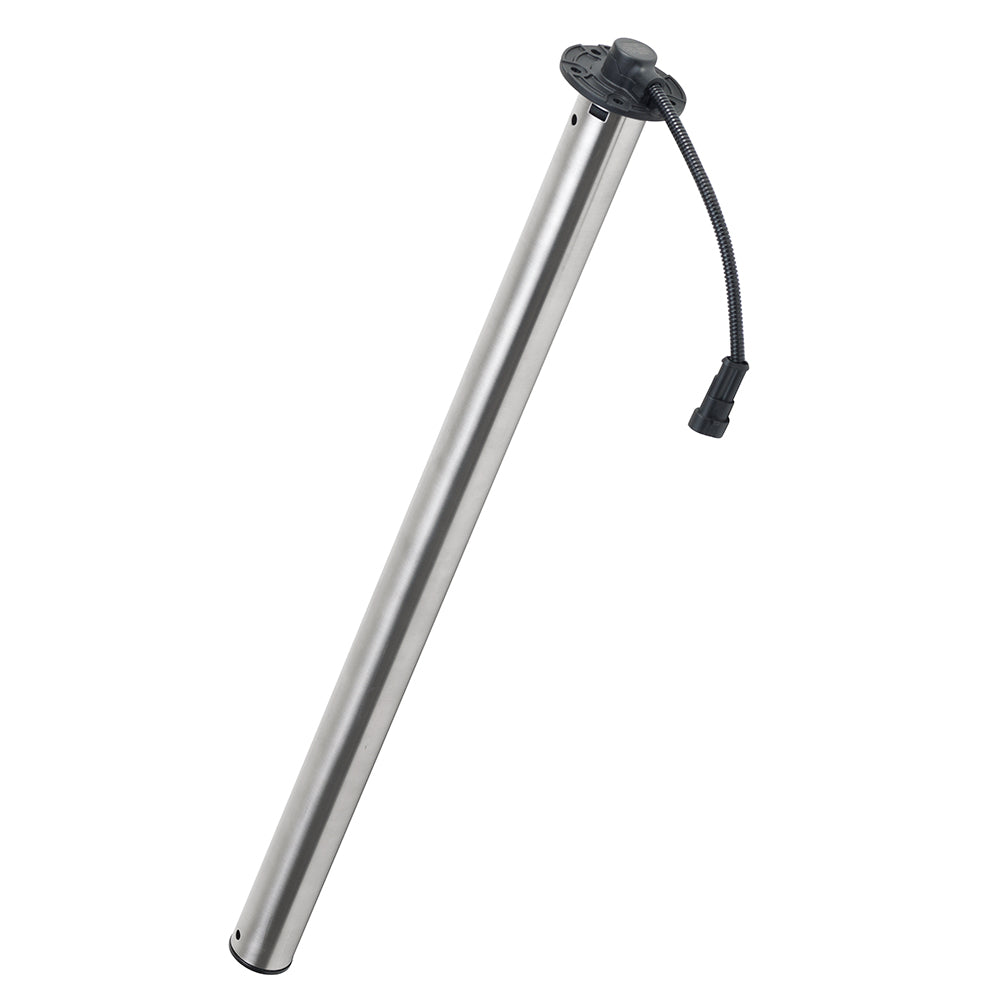

The Deep-Pipe Level Sender is an essential component for accurately measuring fuel levels in marine fuel tanks. Featuring a 38 mm diameter vertical stainless steel tube, the sensor houses a reliable float mechanism that continuously monitors liquid levels. Small baffles at the top and bottom of the tube minimize fuel sloshing, ensuring stable float positioning regardless of sea state variations. Available in various lengths from 150 mm to 1200 mm, it is crucial to select a length that maintains a minimum of 4 mm clearance from the base of the fuel tank upon installation.

Features

• Tubular Construction: Crafted from durable stainless steel for long-lasting performance in marine environments.
• Versatile Compatibility: Suitable for a range of liquids including fuel (Oil, Petroleum, Diesel, Gasoline) and water.
• Optimal Length: Available in 490 mm with options ranging from 150 mm to 1200 mm to fit various tank sizes.

Technical Specifications

Specification	Details
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm length
Signal Range	240 to 33 OHM
Protection Rating	IP67
Communication	Analog

What's Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Installation and Usage

Installing the Deep-Pipe Level Sender requires selecting the appropriate length to ensure at least 4 mm clearance from the fuel tank base. The stainless steel tubular sensor should be securely mounted using the included 5-hole SAE flange. Connect the TE Superseal Connector to ensure a watertight and secure electrical connection. Refer to the provided installation instructions for detailed guidance.

Important Information

Sold Individually

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

• Color: Silver
