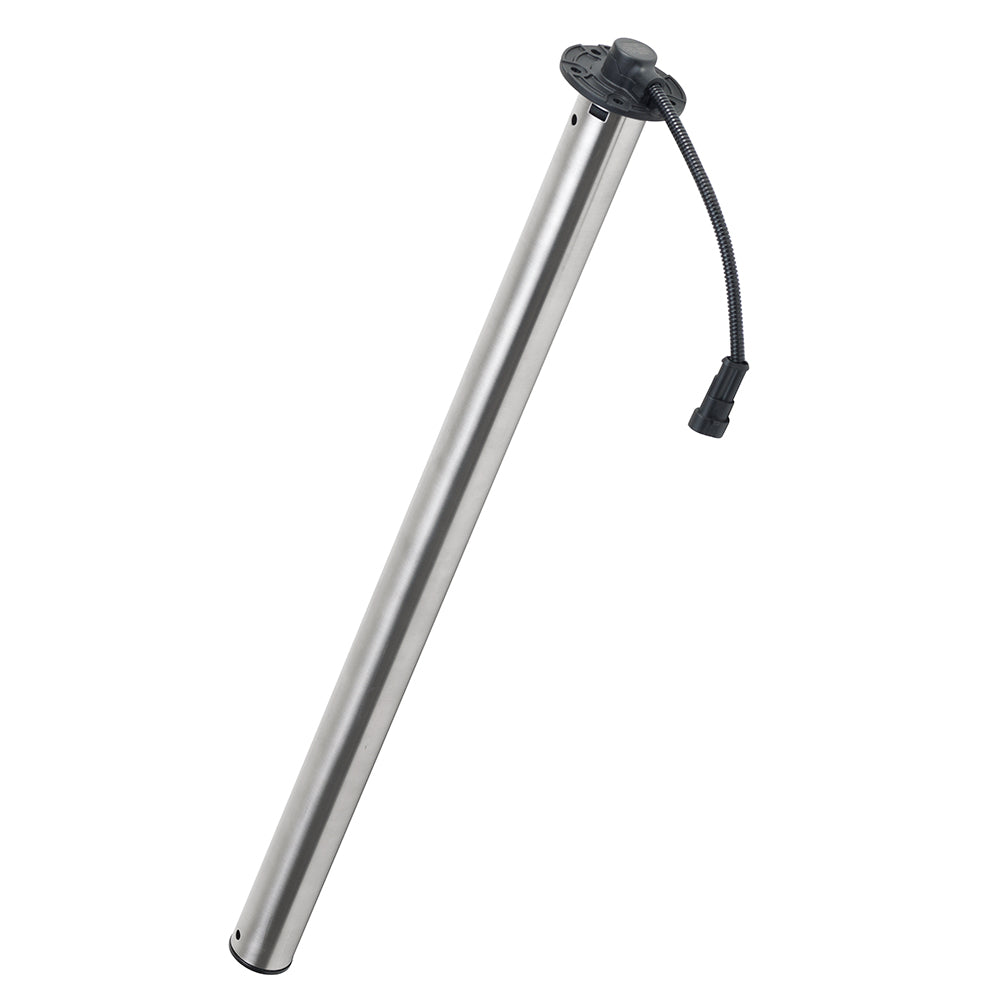

Veratron Deep-Pipe Level Sender - 450mm - 240 to 33 OHM

The Deep-Pipe Level Sender is a reliable solution for accurately monitoring fuel and water levels in marine and boating applications. Engineered to perform consistently even in turbulent sea conditions, this sensor ensures your vessel's fuel management system remains precise and dependable.

Features

• Tubular Sensor: Made from durable stainless steel, designed for longevity in marine environments.
• Versatile Compatibility: Suitable for various liquids including fuel (Oil, Petroleum, Diesel, Gasoline) and water.
• Optimal Length: Available in multiple lengths starting at 150 mm up to 1200 mm. For a 450 mm sensor, ensure it is installed with a minimum of 4 mm clearance from the base of the fuel tank.

Technical Specifications

Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Compensation Chamber	Included
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm in length
Signal Range	240 to 33 OHM
Protection Rating	IP67
Communication	Analog

What’s Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Note: This product is sold individually.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

Color	Silver
Box Dimensions	4"H x 4"W x 30"L
Weight	1.85 lbs
UPC	7640178726086
