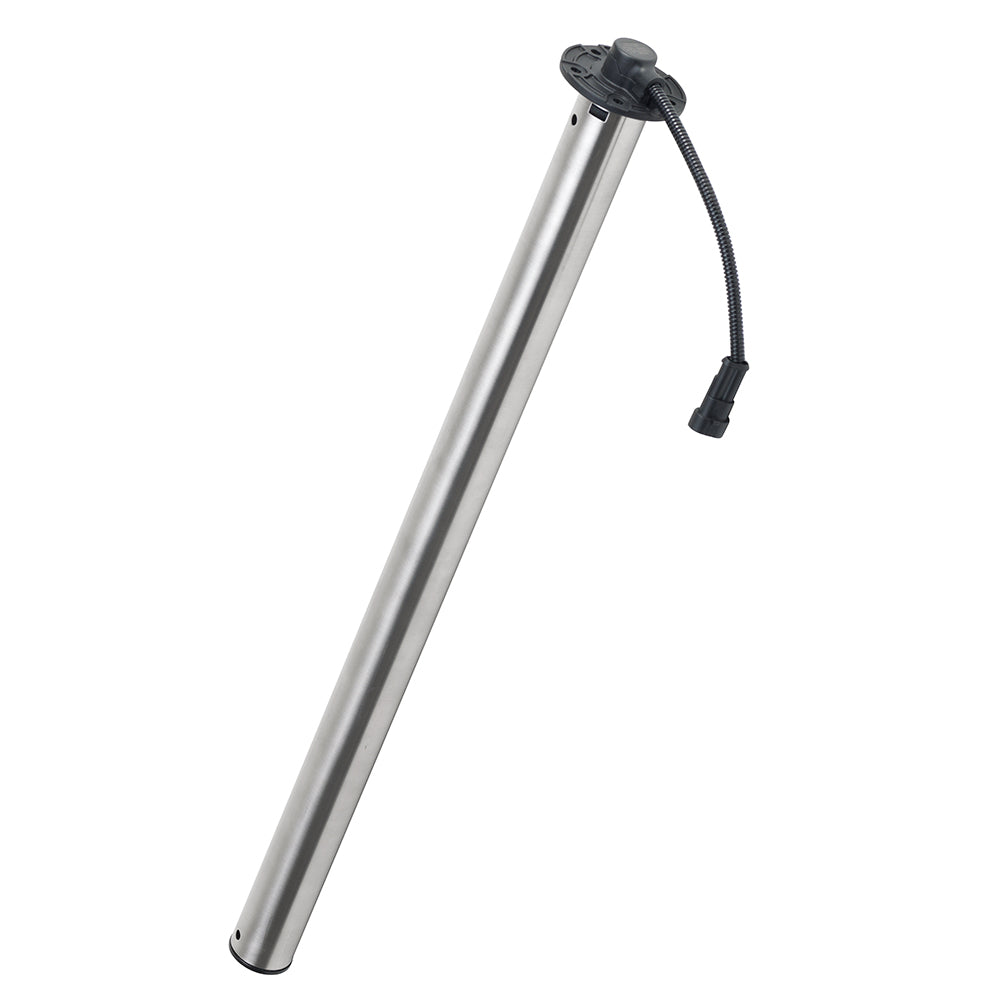

Veratron Deep-Pipe Level Sender - 420mm - 90 to 4 OHM

The Deep-Pipe Level Sender is an essential tool for marine fuel management, providing accurate and reliable fuel level measurements even in the most challenging sea conditions. Designed with durability and precision in mind, this sensor ensures that your vessel's fuel system operates smoothly and efficiently.

Product Overview

The Deep-Pipe Level Sender is specifically engineered for use in marine fuel tanks. Its robust 38 mm diameter vertical stainless steel tube houses a float that accurately measures the liquid level. Equipped with strategically placed baffle holes at both the top and bottom of the tube, this sensor effectively minimizes fuel sloshing, ensuring stable float positioning regardless of sea state or vessel movement.

Key Features

• Stainless Steel Construction: Offers excellent resistance to corrosion and marine environments, ensuring long-lasting performance.
• Versatile Compatibility: Suitable for various fuels, including petroleum, diesel, gasoline, and water.
• Multiple Length Options: Available in lengths ranging from 150 mm to 1200 mm to accommodate different tank sizes, with a recommended minimum clearance of 4 mm from the tank base.
• Stable Performance: Baffle holes prevent fuel movement inside the tank, maintaining accurate float readings even in rough seas.
• Easy Installation: Comes with a comprehensive installation kit, making the setup process straightforward.

Technical Specifications

Specification	Details
Connector	TE Superseal Connector 2-Pole IP67
Operating Temperature	-25°C to 65°C (-13°F to 149°F)
Operating Voltage	6 to 24 VDC
Flange	5-Hole SAE Flange 54mm PA66 GF30
Wiring Harness	200 mm length
Signal Range	90–4 OHM
Protection Rating	IP67
Communication	Analog

What's Included

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

Note: Sold individually. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Specifications

• Color: Silver
• Length: 420 mm
