Veratron Deep-Pipe Level Sender - 390mm - 0 to180 OHM

The Deep-Pipe Level Sender is an essential component for precise fuel monitoring in marine and boating applications. Engineered for durability and accuracy, this level sensor ensures reliable performance even in the most challenging sea conditions, providing boaters with peace of mind and efficient fuel management.

Product Overview

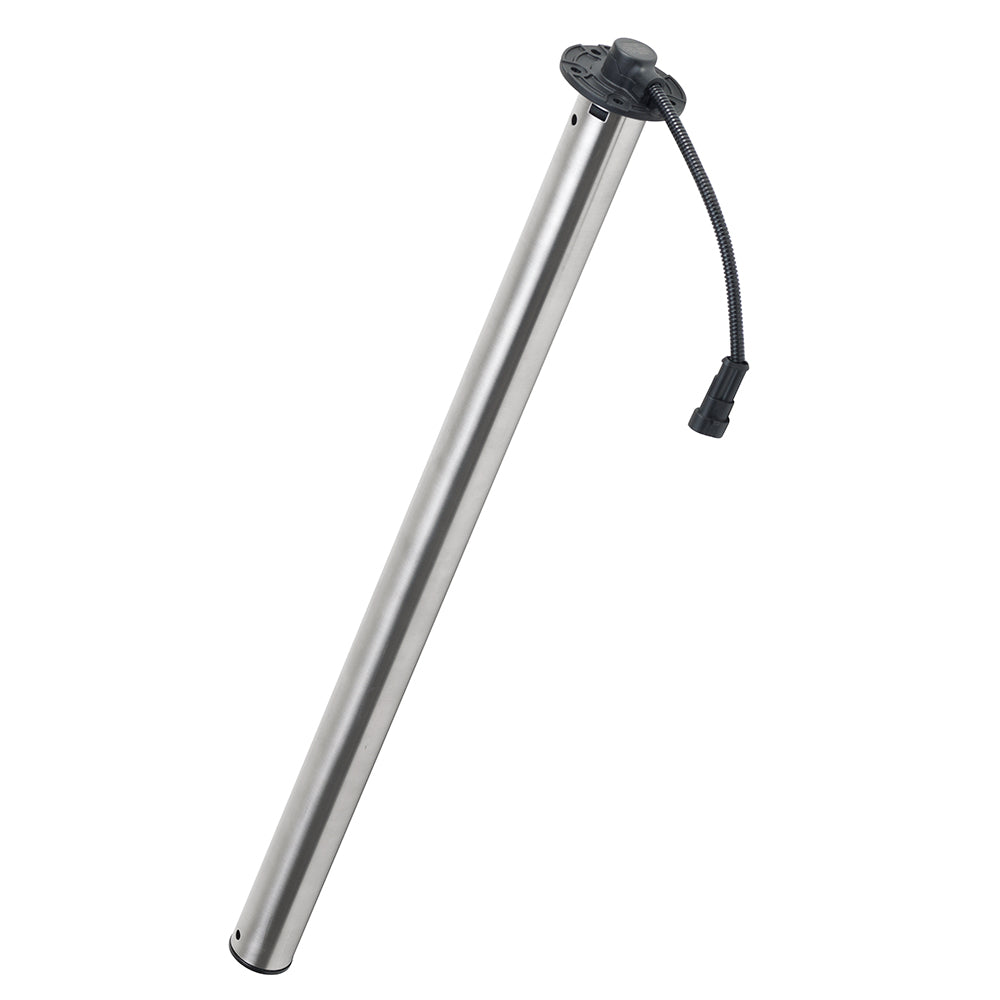

The Deep-Pipe Level Sensor features a robust 38 mm diameter stainless steel vertical tube equipped with a high-quality float. This design accurately measures the liquid level within your fuel tank, making it ideal for various marine fuel systems. The sensor incorporates small baffle holes at both the top and bottom of the tube, effectively reducing fuel sloshing caused by waves and vibrations. This innovation ensures that the float remains stable, delivering consistent and reliable readings regardless of the sea state.

Available in multiple lengths ranging from 150 mm to 1200 mm, the Deep-Pipe Level Sender can be customized to fit different fuel tank sizes. It is crucial to select a length that maintains at least a 4 mm clearance from the base of the fuel tank once installed, ensuring optimal performance and longevity of the sensor.

Key Features

• Stainless Steel Tubular Sensor: Offers superior resistance to corrosion and enhances the sensor’s durability in marine environments.
• Fuel and Water Compatibility: Compatible with various fuels including Oil, Petroleum, Diesel, Gasoline, and even water, making it versatile for different applications.
• 390 mm Length: Provides extended reach for accurate level measurement in larger fuel tanks.

Technical Specifications

Connector	TE Superseal, 2-Pole, IP67 rated for waterproof and dustproof protection
Operating Temperature	-25°C to 65°C (-13°F to 149°F), suitable for a wide range of marine climates
Operating Voltage	6 to 24 VDC, compatible with standard marine electrical systems
Compensation	Includes a compensation chamber to maintain accuracy despite pressure changes
Flange	5-Hole SAE Flange, 54mm PA66 GF30 for secure and easy installation
Wiring Harness	200 mm length, providing flexibility during installation
Signal Range	0 to 180 OHM, ensuring precise level indication
Protection Rating	IP67, guaranteeing resistance against water immersion and dust ingress
Communication	Analog signal output for easy integration with existing monitoring systems

What's Included

• Deep-Pipe Level Sensor
• Complete Installation Kit
• Safety Instructions
• Comprehensive Installation Instructions

Note: This product is sold individually.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

• Color: Silver
